Description

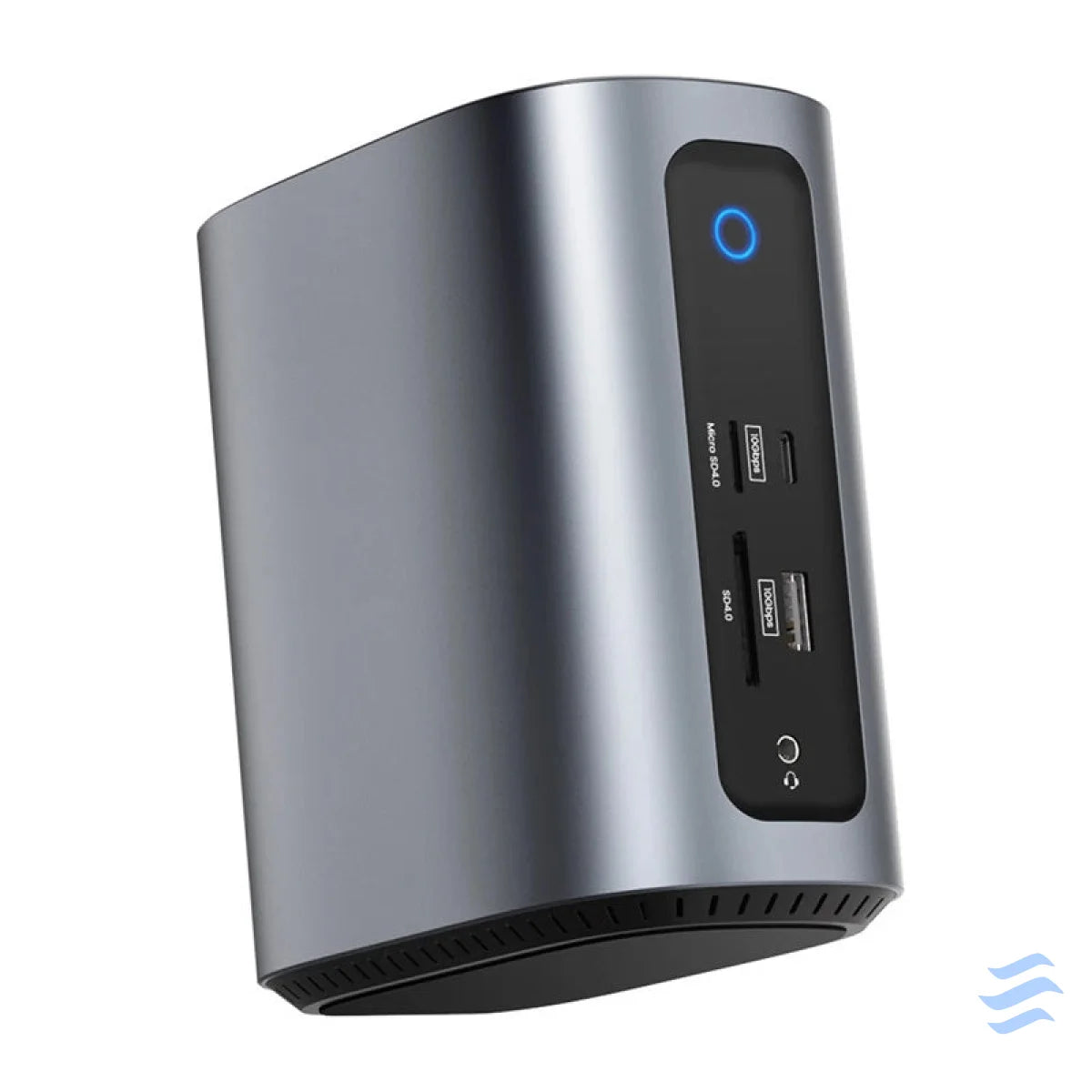

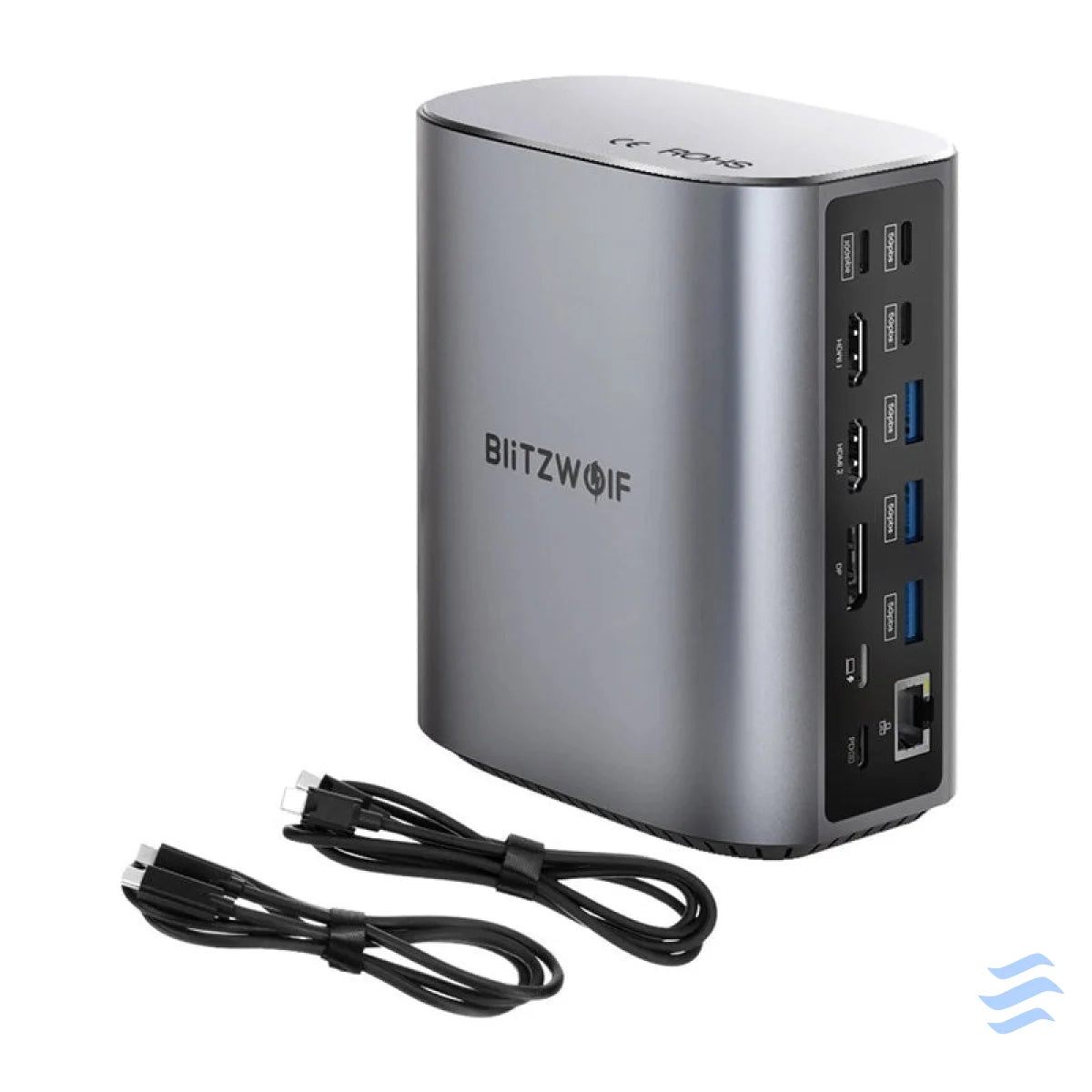

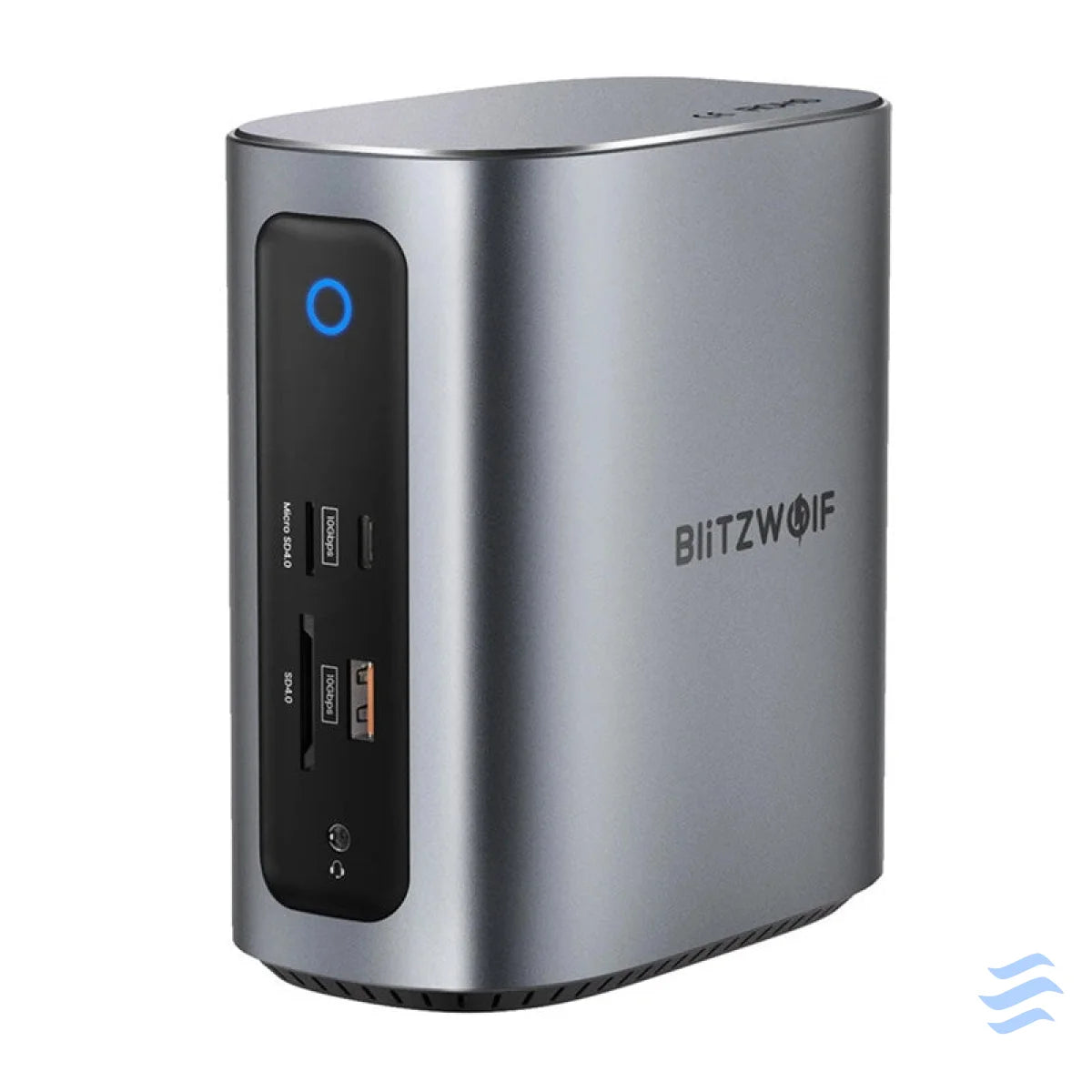

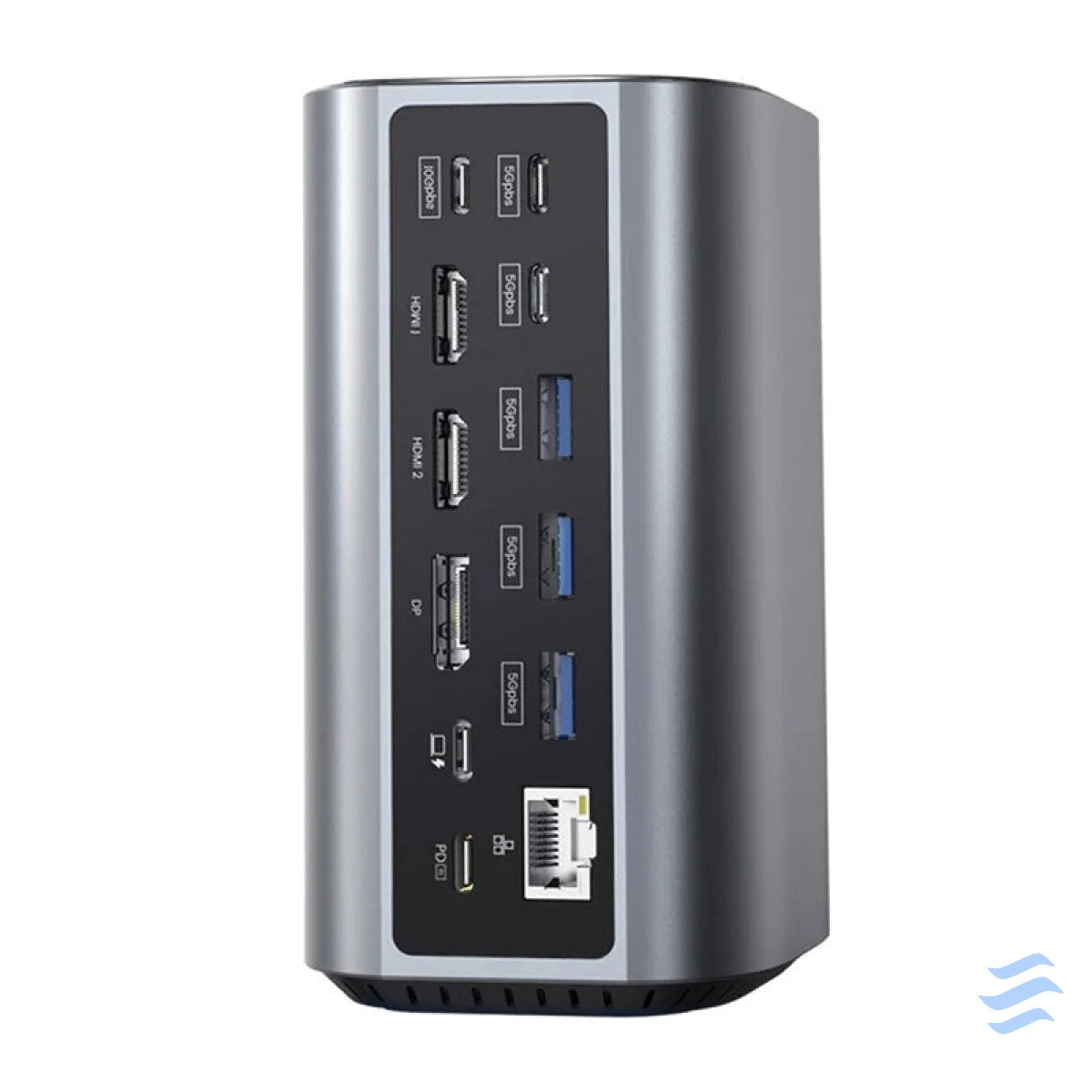

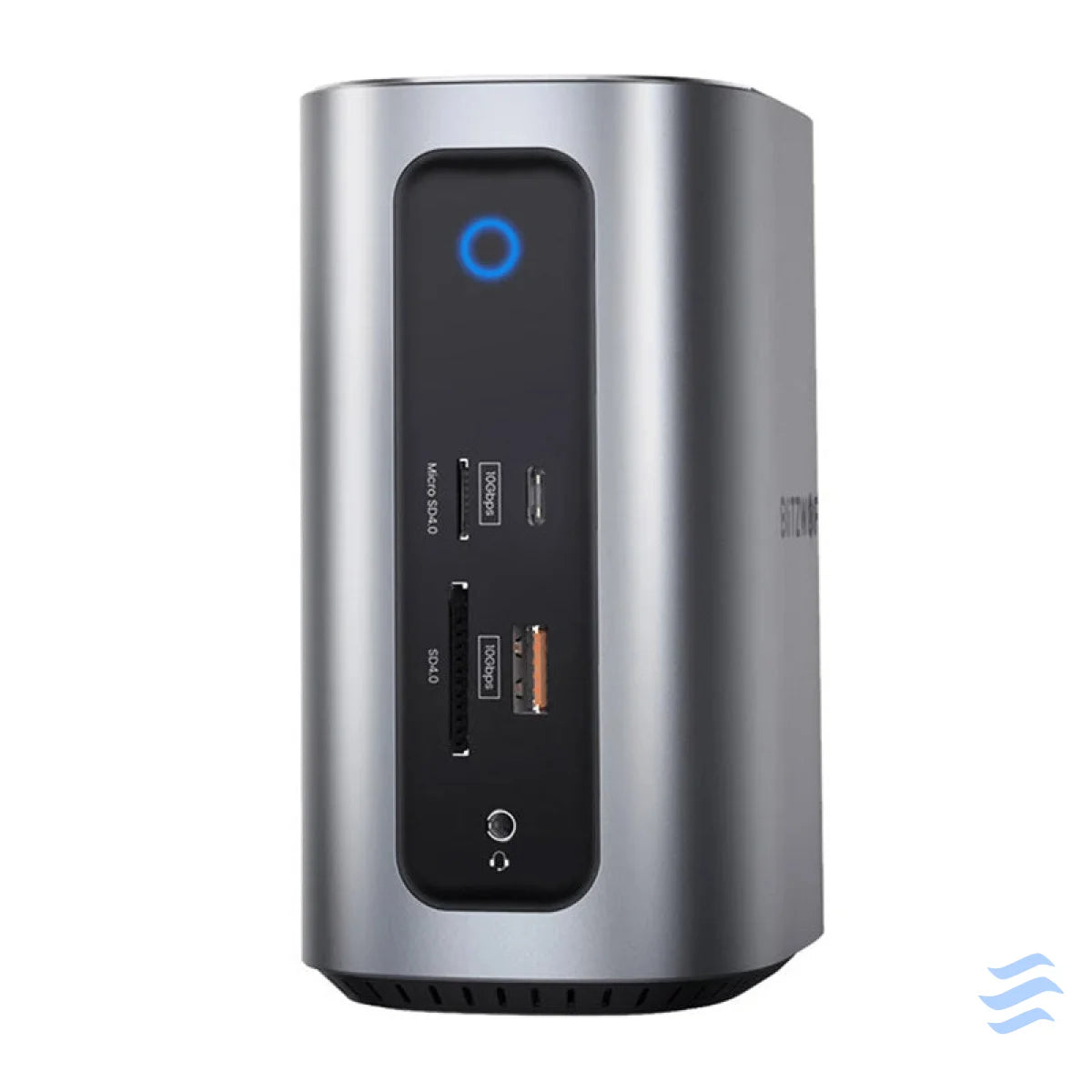

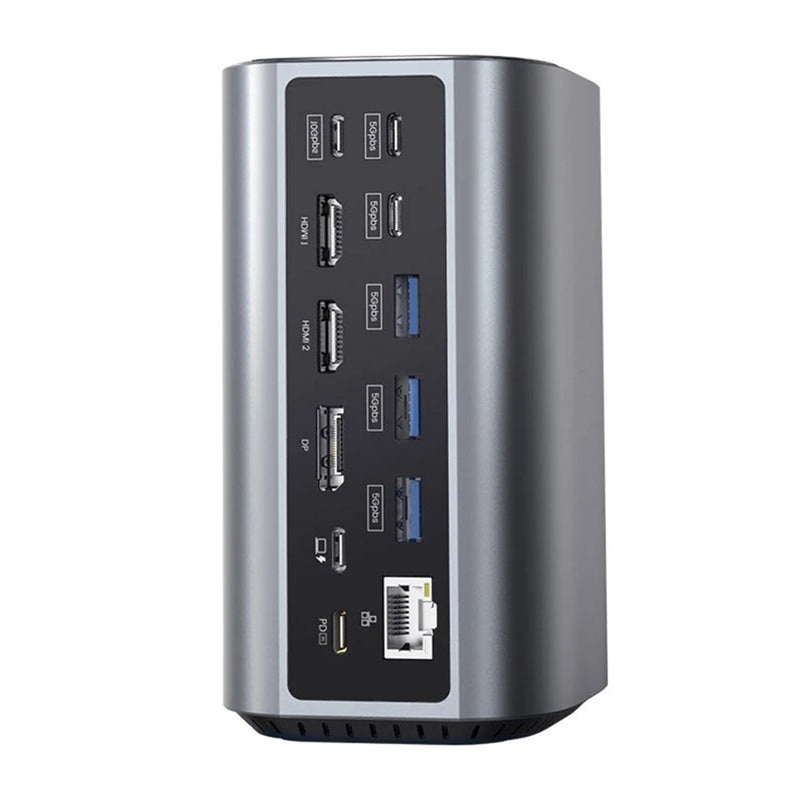

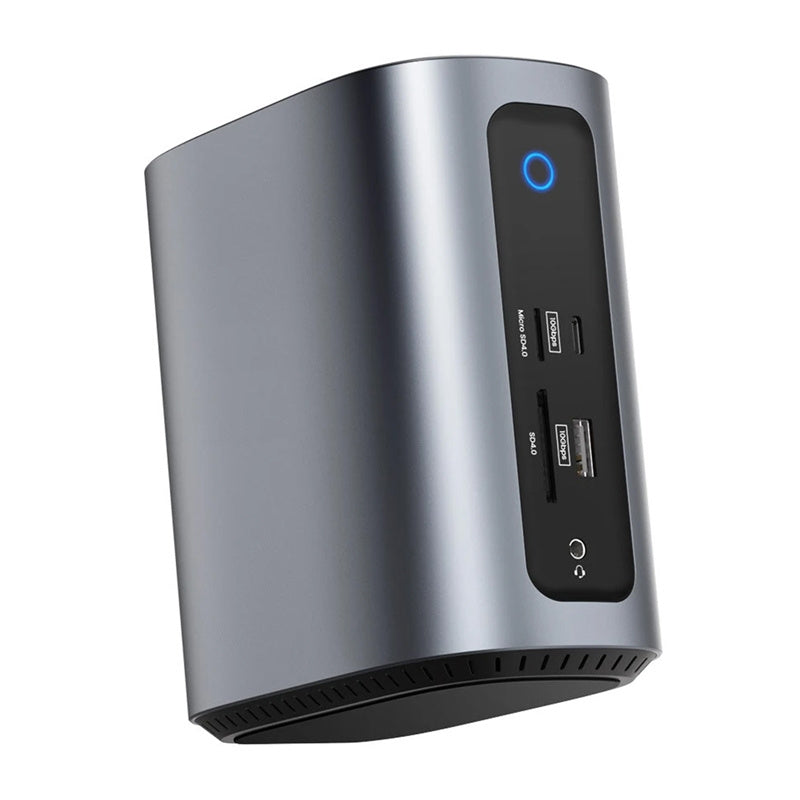

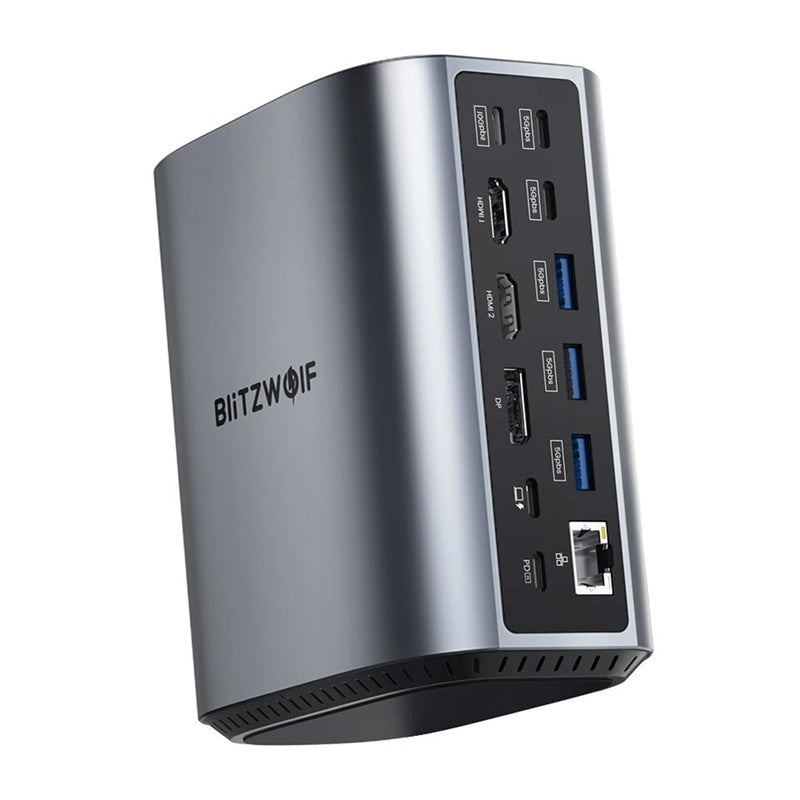

Blitzwolf BW-TH15 17in1 Docking Station 2xHD+DP+4xC+3xUSB 3.0+USB 3.1+C 3.2+C PD+RJ45+micro SD+SD+3.5mm Audio
The Blitzwolf BW-TH15 docking station is an advanced solution for those who need the maximum number of ports in one place. Equipped with as many as 17 different interfaces, it allows you to connect multiple devices at the same time, providing convenience and saving space on your desk. There are 2 HDMI ports, 1 DisplayPort, 4 USB-C ports, 3 USB 3.0 ports, 1 USB 3.1 port and USB-C 3.2 Gen2 for the host, ensuring wide compatibility and fast data transfer.
4K-quality video and lightning-fast data transfer
With support for two HDMI ports and one DisplayPort, the docking station can display 4K@60Hz resolution, making it ideal for multi-monitor use. Data transfer speeds are also top-notch, with two USB-C and one USB 3.1 ports offering up to 10 Gbps, and two additional USB-C and USB 3.0 ports reaching 5 Gbps, ensuring fast file copying and seamless operation with external media.
Efficient power supply and stable network connection
The Blitzwolf BW-TH15 docking station supports USB-C PD charging of up to 100W, with 65W dedicated to devices connected to the main control interface and 35W to the station itself. With a built-in RJ45 port, users can enjoy wired internet speeds of up to 1,000 Mbps for a stable and fast connection. In addition, the device supports microSD and SD card slots with a maximum transfer speed of 400 MB/s, as well as a 3.5mm audio input for connecting headphones and a microphone.
| Manufacturer |
Blitzwolf |
| Model |
BW-TH15 |
| Size |
115 * 129 * 64 mm |
| C PD protocol |
20V |
| Working temperature |
+70℃/-20℃ |
| Interfaces |
2 * HD, 1 * DiP, 4 * USB-C, 3 * USB 3.0, 1 * USB 3.1, 1 * USB-C 3.2 Gen2 for HOSTA, 1 * USB-C PD, 1 * RJ45, 1 * Micro SD 4.0, 1 * SD 4.0, 1 * 3.5mm Audio |
| HD interface resolution 1 |
4K@60Hz DiP 1.4 |
| HD 2 interface resolution |
4K@60Hz DiP 1.4 |
| Di Interface resolution |
4K@60Hz |
| 2 * USB-C data transfer rate |
10Gbps |
| 2 * USB-C data transfer rate |
5Gbps |
| USB 3.0 x 3 data transfer speed |
5Gbps |
| USB 3.1 data transfer speed |
10Gbps |
| USB-C 3.2 Gen2 for HOST |
Connect to host device, Offers 65W charging power |
| Fast charging USB-C PD |
100W (65W is for the main control interface and 35W is for the dock itself) |
| RJ45 network transmission |
1000Mbps |
| SD / Micro SD 4.0 |
Maximum speed up to 400MB/s |
| 3.5mm audio |
Audio and microphone |
