Description

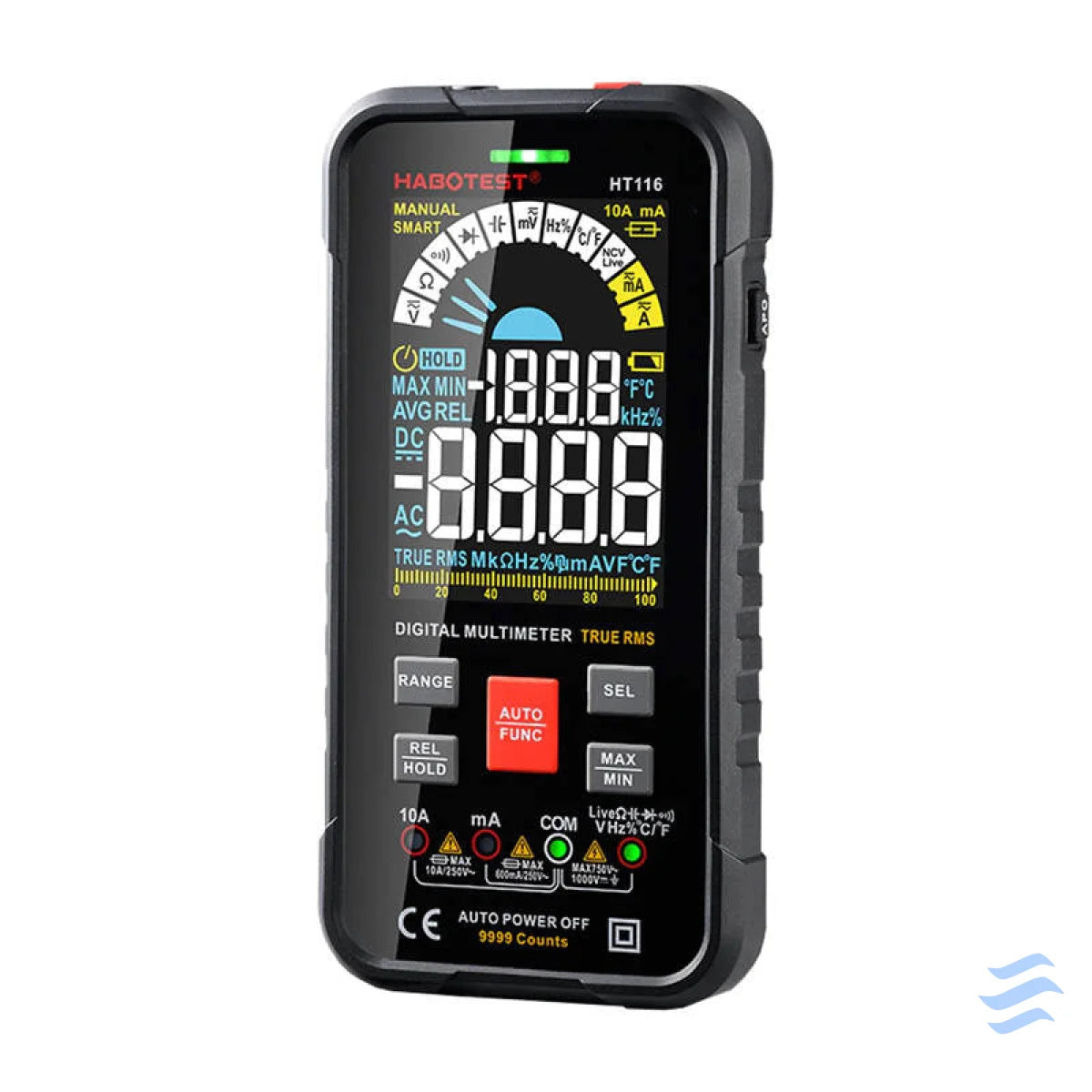

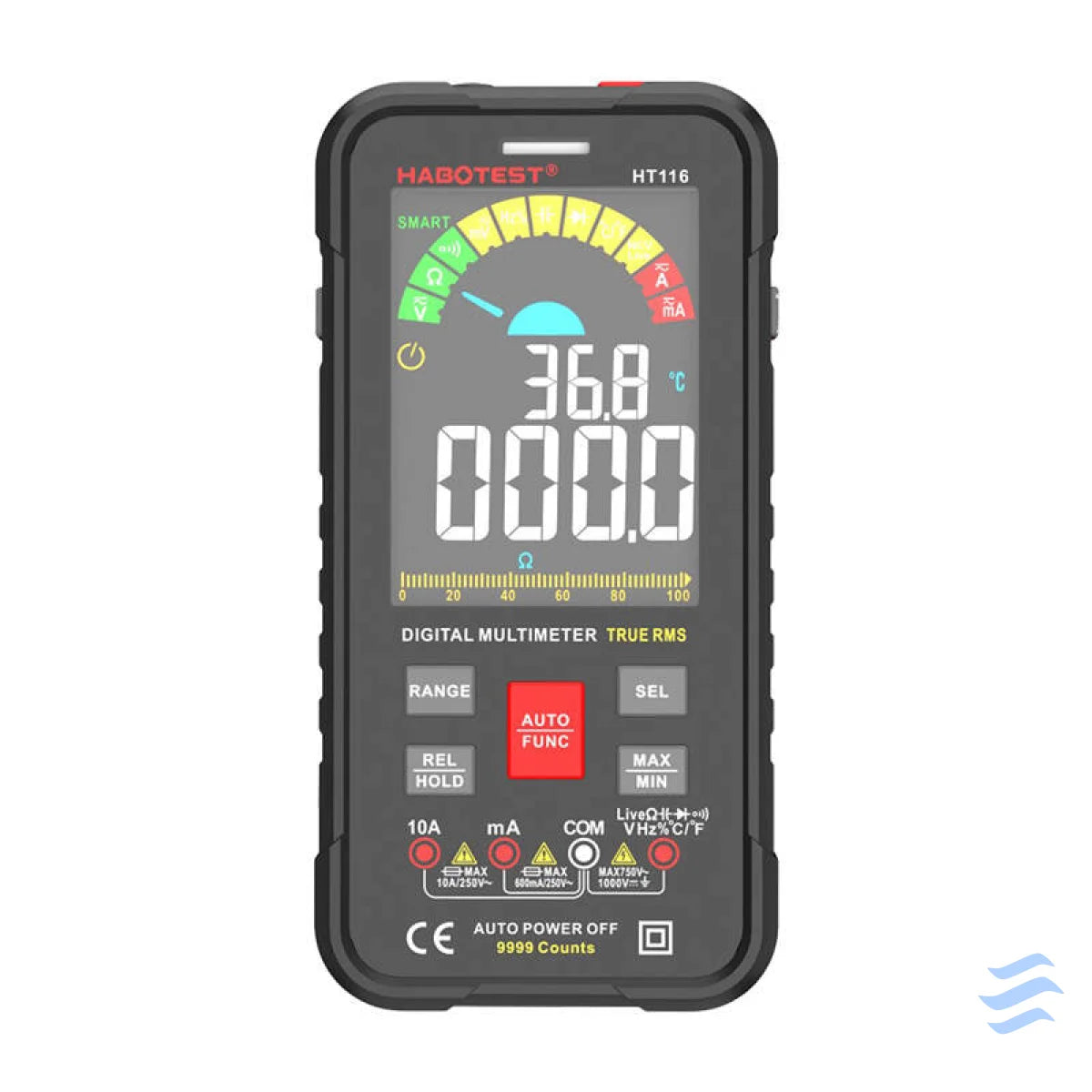

Habotest HT116 Digital Universal Multimeter
HT116 is a smart multimeter that you can use to accurately measure AC and DC voltage, resistance, continuity, capacitance, and more. The large display and buttons make it easy to operate and provide easy access to measurement results. In addition, the device has a flashlight, which will facilitate work in dark rooms. 3 AAA batteries are required to power the HT116.
Multifunctional, precise
The Habotest brand multimeter features incredible measurement precision. It will prove itself for checking continuity and true RMS value. With its help you will measure AC and DC voltage, current and resistance. It also provides non-contact voltage detection (NCV).
Convenient and simple operation
The multimeter use is easy and convenient. Resembling a smartphone in design, the HT116 has a large, easy-to-read display and silicone buttons for easy operation. It also features an LED indicator for the jack input port.
User-friendly design
The device is protected by a case, so you don't have to worry about damaging it. On the right side there is an auto-off button to save energy, and the flashlight will make it easier to work in a dark room. HT116 is powered by 3 AAA batteries, which you can easily replace.
| Brand |
Habotest |
| Model |
HT116 |
| DC voltage |
0.01 mV ~ 1000 V ± (0,5%+3) |
| AC voltage |
0.01 mV ~ 750 V ± (0,8%+3) |
| DC current |
0.01 mA ~ 10 A ± (0,8%+3) |
| DC current |
0.01 mA ~ 10 A ± (0,8%+3) |
| Resistance |
0.01 ꭥ ~ 100 Mꭥ ± (1,0%+5) |
| Capacitance |
0.001 nF ~ 100 mF ± (4,0%+3) |
| Frequency |
0.001 Hz ~ 10 Hz ± (1,0%+3) |
| Duty |
0,1% ~ 99.9% ±(1,0%+2) |
| Temperature (°C/°F) |
-40°C ~ 1000°C ; -40°F ~ 1832°F |
| Counts |
9999 |
| Input jack LED function |
Yes |
| SMART function |
Yes |
| Automatic identification of current input |
Yes |
| Live test |
Yes |
| NCV |
Yes |
| Diode test |
Yes |
| MAX/MIN |
Yes |
| Data hold |
Yes |
| True RMS |
Yes |
| Fuse burning prompt function |
Yes |
| Low battery indicator |
Yes |
| Auto power off |
Yes |
| Flashlight |
Yes |
| Power |
3 x AAA battery |
| Weight |
About 233g |
| Dimensions |
83 x 23 x 165 mm |
