Description

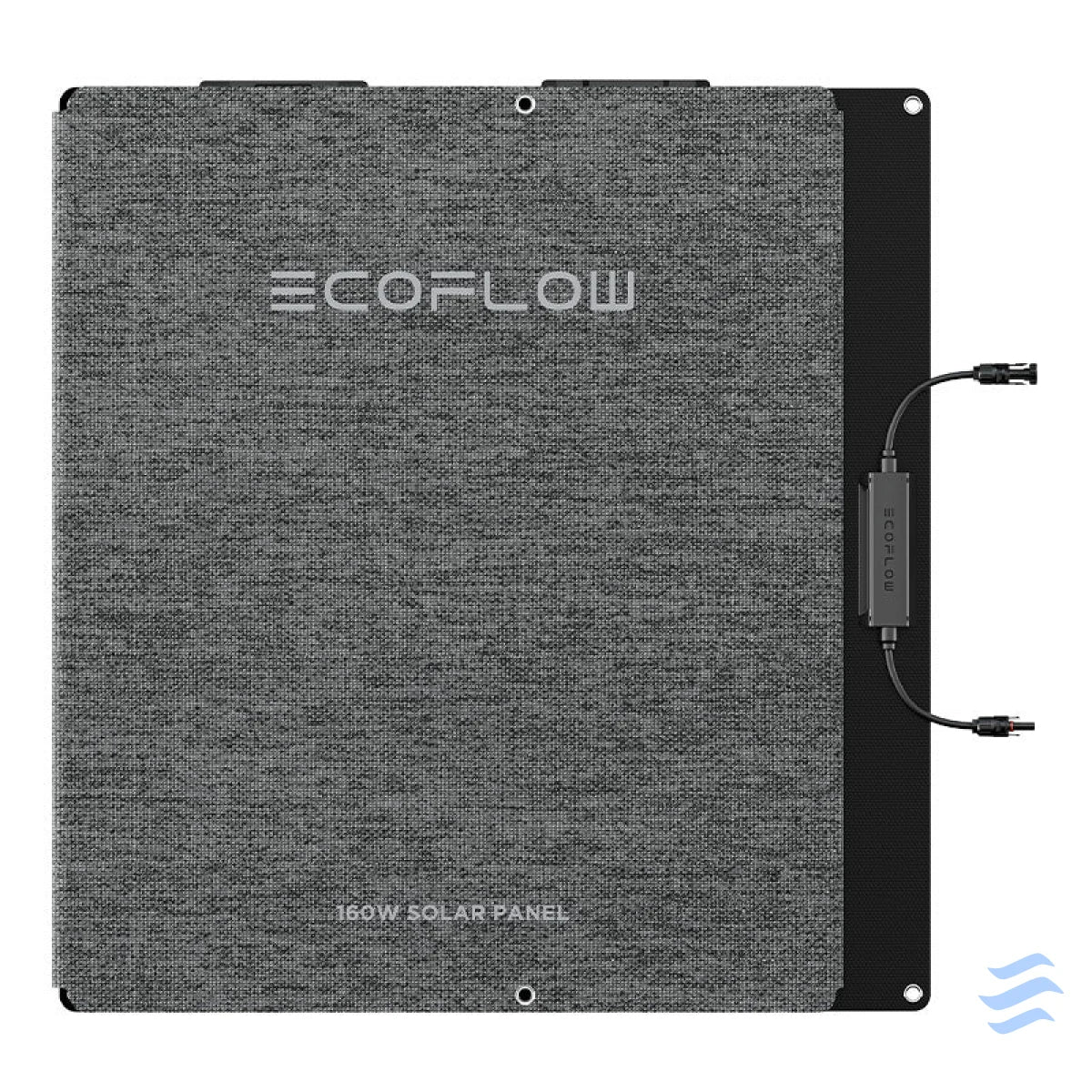

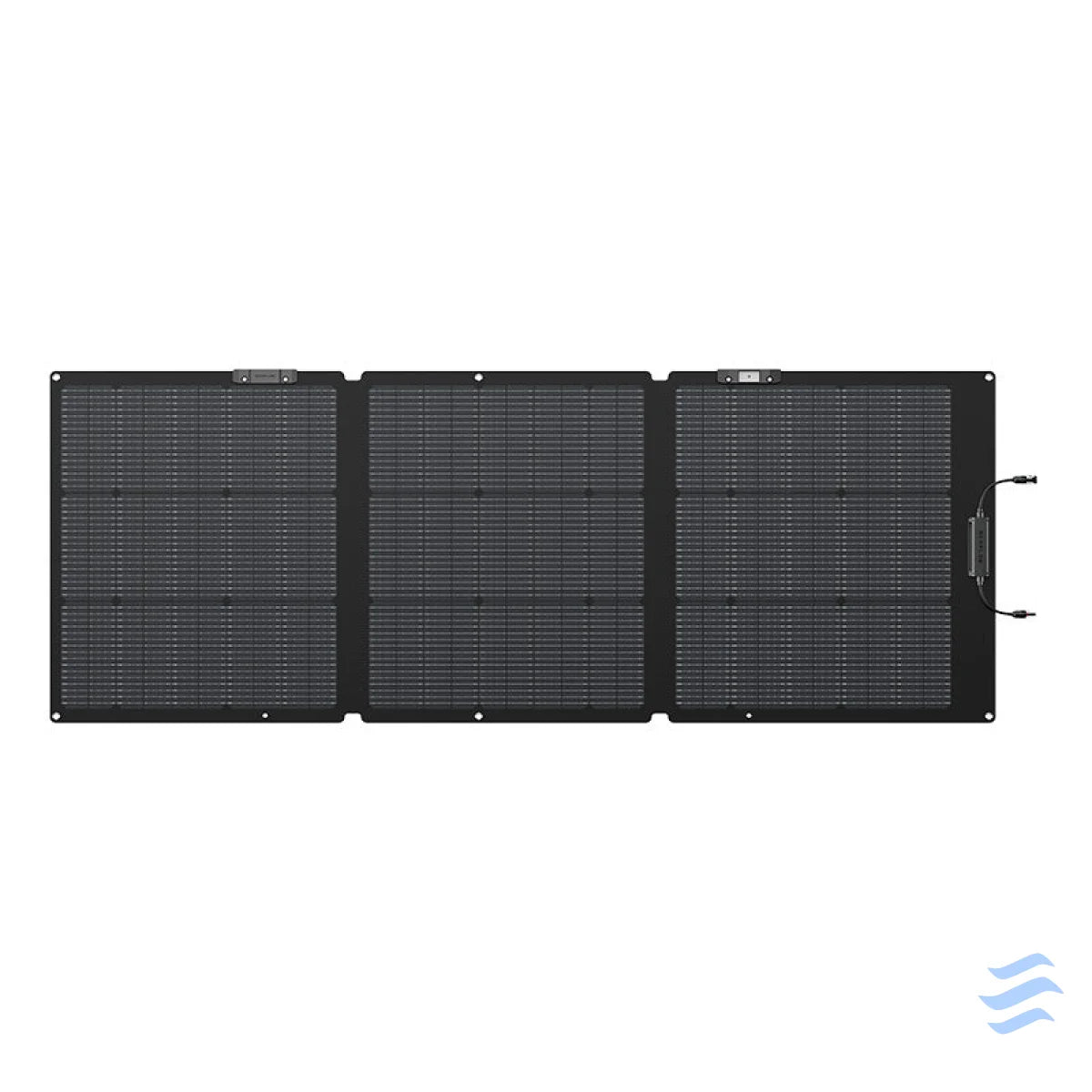

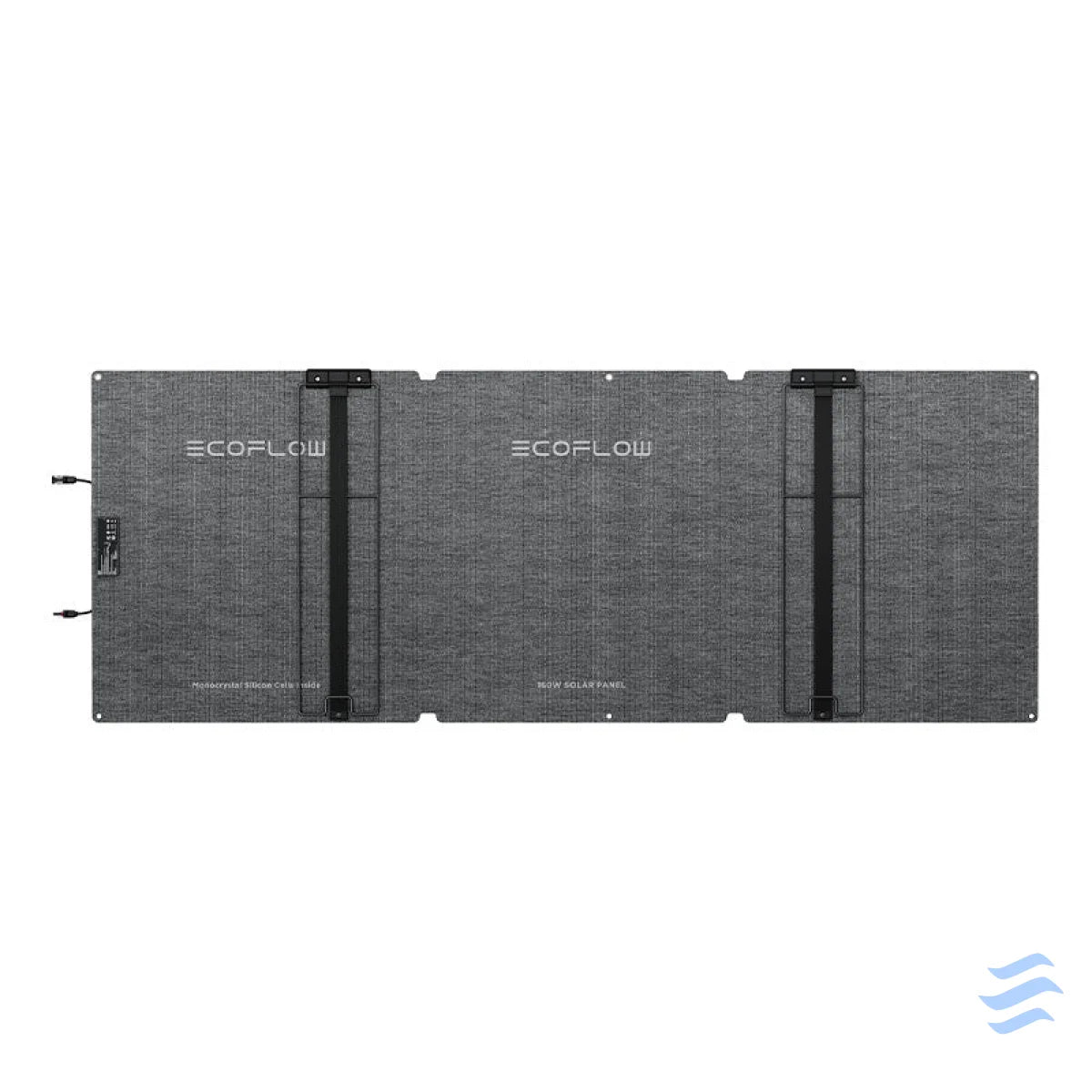

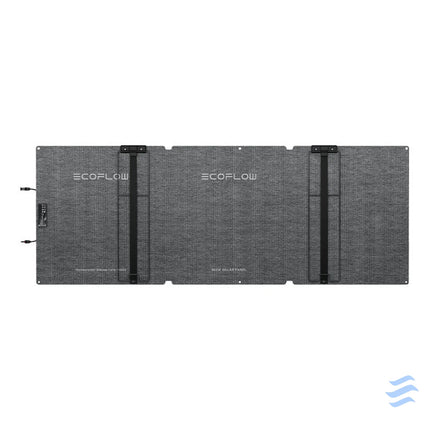

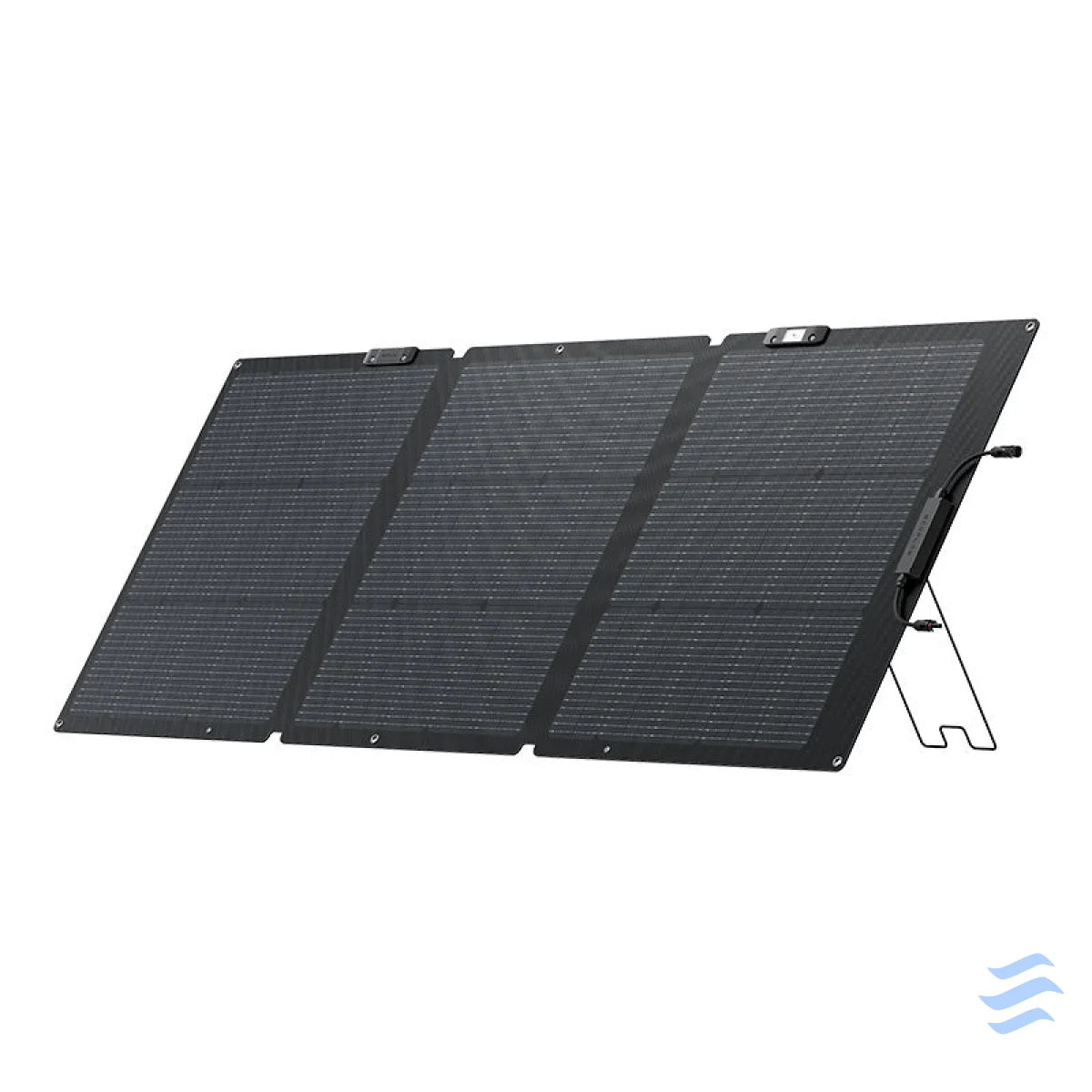

EcoFlow 160W NextGen photovoltaic panel
The EcoFlow 160W NextGen photovoltaic panel is a mobile solution for people who want to enjoy access to solar energy in all conditions. With a high efficiency of 25%, up to 160 watts of power and advanced TOPCon (Tunnel Oxide Passivated Contact, a photovoltaic cell technology that enhances efficiency) monocrystalline cells, it allows you to quickly and efficiently charge EcoFlow power stations or provide electricity to the devices of your choice. Its lightweight design (5.6 kg) and foldable design make it easy to take it on the road - on a camping, camping or campervan trip.
High efficiency

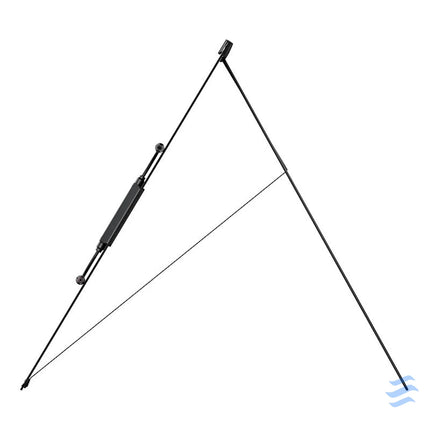

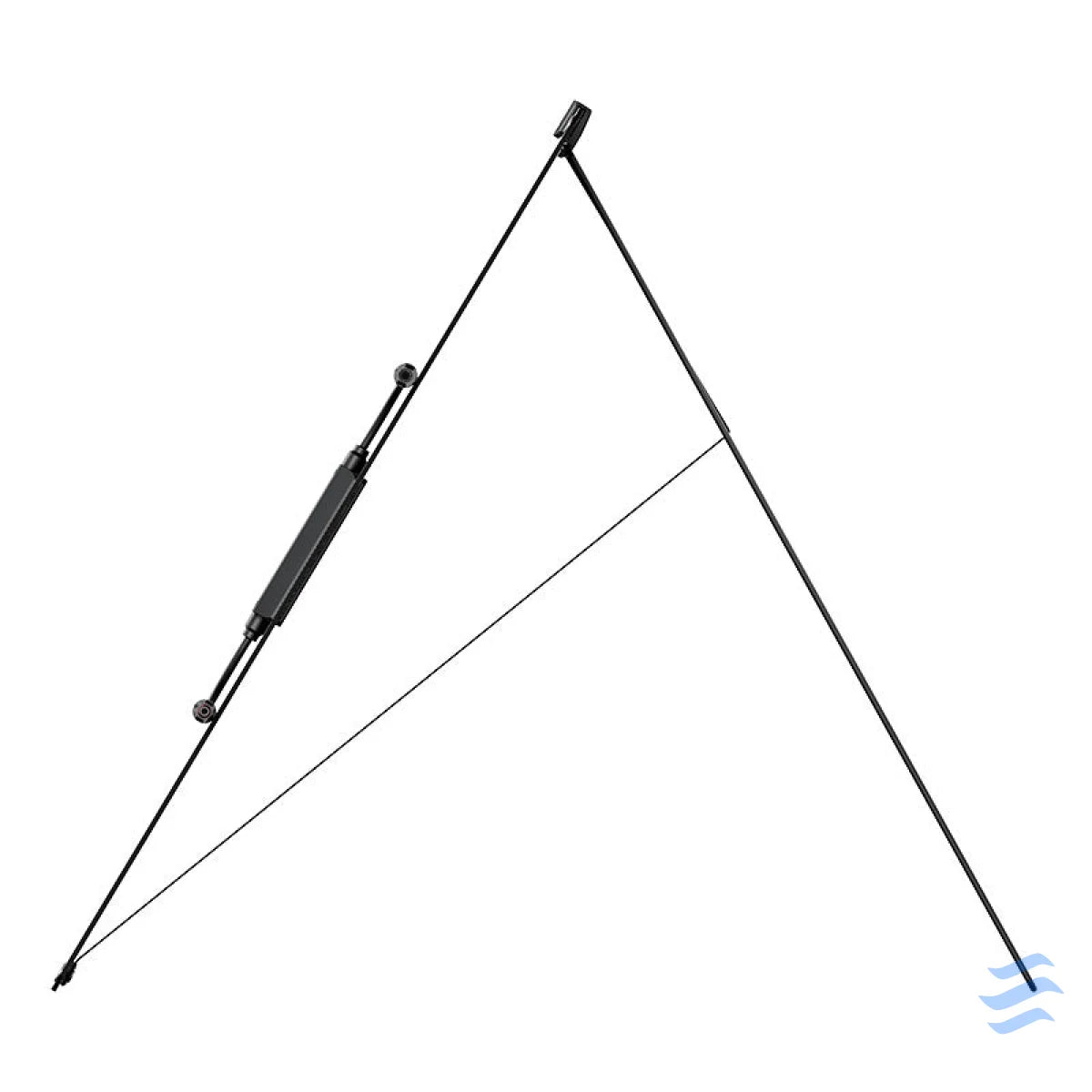

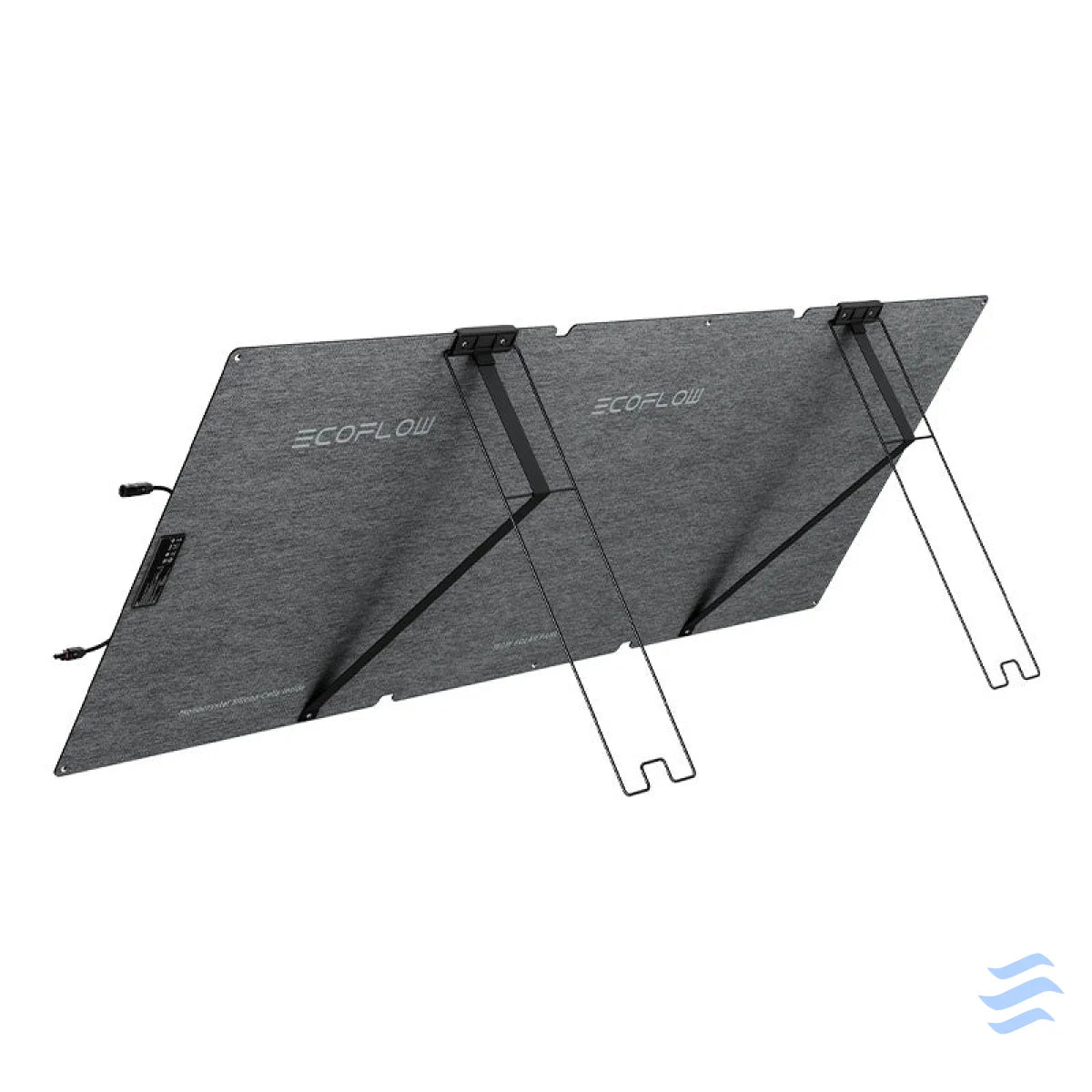

With a rated power of 160 watts and an efficiency of up to 25%, the panel guarantees stable and efficient charging. In addition, special supports allow you to adjust its tilt in a range of 30°, 60° or 90°, and the built-in sun angle indicator makes it easy to choose the right setting. So you can easily get the optimal position in relation to the sun and increase energy production!
Modern cell technology
EcoFlow NextGen 160W uses TOPCon N-type monocrystalline cells, which feature high efficiency, efficient operation and wear resistance. As a result, you can count on longer life and more stable performance in daily use.
Lightweight and easy to transport
The panel folds down to a compact size of 600 × 572 × 32 mm, allowing you to easily fit it in the trunk or storage compartment of your camper. It also comes with a practical carrying bag to protect it during transport.
Durable design
The EcoFlow NextGen 160W panel is designed with longevity in mind. Its layered construction combines lightweight yet durable materials that protect the cells from mechanical damage and weathering. What's more, thanks to its IP68 (Ingress Protection, a degree of protection against dust and water) rating, the product is resistant to dust and water, which means safe operation even in rain or high humidity. That's the assurance that no matter where you are or what the weather is like, you'll have access to free solar energy.
Easy integration with EcoFlow systems
The product features standard MC4-compatible photovoltaic connectors (Multi-Contact 4mm, a standard connector for photovoltaic panels), which enables fast and stable connection to EcoFlow power stations. You can also connect several panels in series or parallel to increase power and charge larger energy stores faster.
Included
- Photovoltaic panel
- Carrying bag
- Solar cable for XT60i (2.5 m)
- Quick start guide, safety instructions and warranty card
| Manufacturer |
EcoFlow |
| Model |
EF-Fold-P160-04 |
| Rated power |
160 W (±5 W) |
| Open circuit voltage |
21,3 V |
| Short-circuit current |
9,1 A |
| Optimum operating voltage |
18,6 V |
| Optimum operating current |
8,6 A |
| Recommended ambient temperature |
From -20°C to 85°C |
| Efficiency |
25% |
| Temperature coefficient of rated power |
-(0,30 ±0,02)%/°C |
| Temperature coefficient of open circuit voltage |
-(0,25 ±0,03)%/°C |
| Temperature coefficient of short-circuit current |
+(0,04 ±0,015)%/°C |
| Weight |
Approximately 5.6 kg |
| Dimensions when unfolded |
600 × 1610 × 25 mm |
| Dimensions when folded |
600 × 572 × 32 mm |
| Type of cells |
TOPCon monocrystalline |
| Type of connectors |
Photovoltaic connectors (compatible with MC4) |
