Description

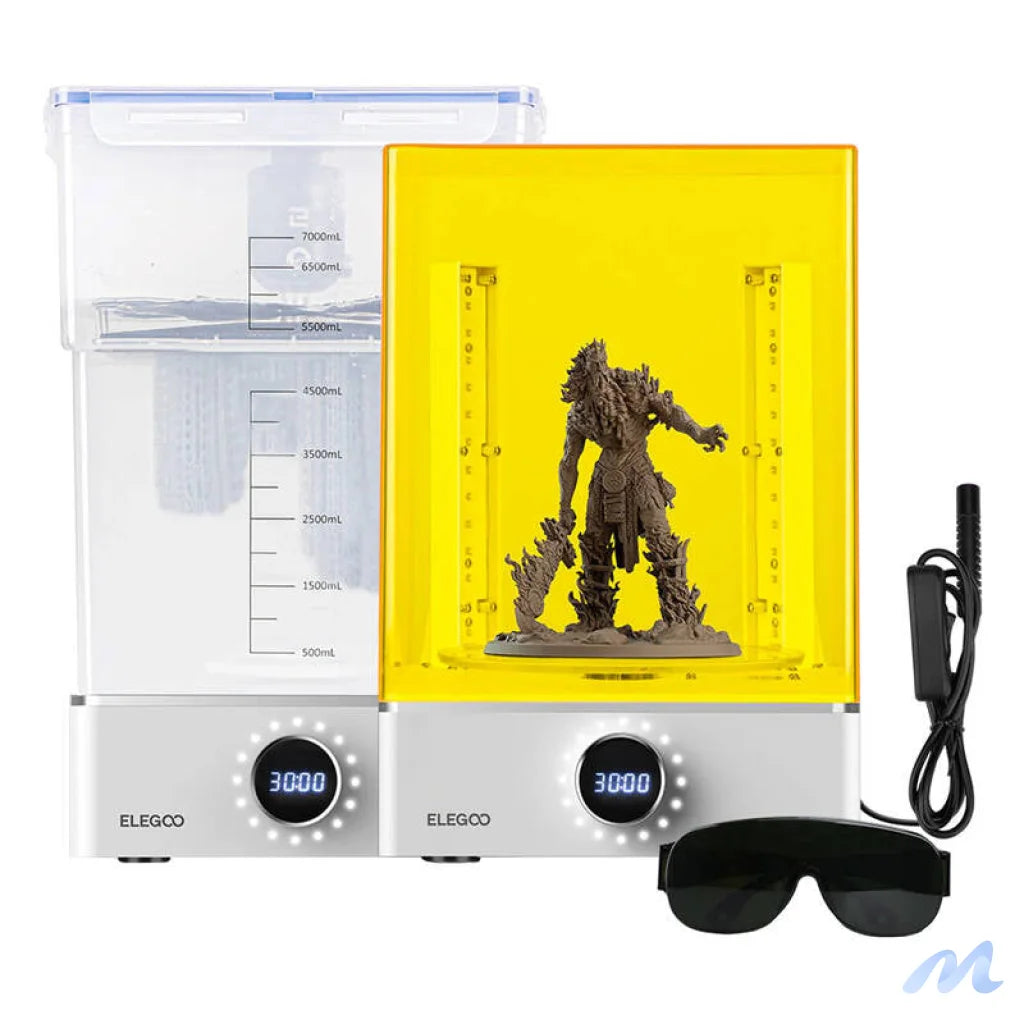

ELEGOO Mercury XS 3D Print Washing and Curing Kit
The ELEGOO Mercury XS is the ideal solution for processing 3D prints, making it easy to both wash and cure resin models. With this kit, you can achieve a perfect finish on your models, eliminating resin residue and ensuring optimal results. The product is designed with ease of use and safety in mind, making it fun and intuitive to use.
Washing and curing in one
The ELEGOO Mercury XS offers two modules: a washing station and a curing station, which allow for comprehensive finishing of 3D models. The washing module effectively removes resin residue, ensuring the model is clean and ready for curing. The curing module uses UV light to finally fix and strengthen the structure of the print. With this kit, your entire post-production process will become simpler and faster, without the need to purchase two separate devices.
Even curing
The curing station is equipped with adjustable L-shaped lights and a 360° rotating platform to ensure full UV coverage on each side of the model. In addition, 4 LEDs located under the platform and a Fresnel lens emit light with a fixed wavelength of 405 nm, ensuring even curing of even the most complex models.
Precision in hard-to-reach areas
The kit also includes a handy UV lamp for curing the interiors and nooks and crannies of the model, which is especially useful for prints with complex shapes. The lamp is also great for models that need to be cured after assembly.
Efficient cleaning of large models
The ELEGOO Mercury XS offers as much as 7,000 ml of capacity in a sealed wash tank, allowing for easy cleaning of both large models and smaller printed parts at the same time. Such a large working space saves time and also increases the efficiency of the cleaning process, which is especially important when working on larger projects. For the Saturn 4 and Jupiter series, the mounting platform must be removed before cleaning. For other models, refer to the maximum cleaning height and determine if it is necessary to remove the platform.
UV protection and automatic shutdown
The transparent cover of the curing station blocks up to 99.9% of UV rays, which not only speeds up the curing process, but also protects the user's eyesight. In addition, a safety system turns off the UV light automatically when the cover is removed, minimizing the risk of UV exposure.
Easy operation - everything under control
An intuitive interface with a simple dial and button allows for easy operation of both washing and curing functions. The working time can be adjusted up to 30 minutes to suit the needs of a particular model. Simply hold down the dial for 3 seconds to start the device and quickly proceed with the processing.
Included
- Mercury XS Wash station
- Mercury XS Cure curing station
- Curing lamp
- Handheld UV lamp
- Anti-UV cover
- Water tank
- Protective goggles
- Wash basket
- Adapter
- Operating instructions
- Tools
Mercury XS WASH
| Control method |
Knob + button |
| Rated power |
12W |
| Input voltage |
110V/240V 50/60Hz |
| Time setting |
0-30 minutes |
| Machine size |
255mm x 155mm x 385.5mm |
| Net weight of the machine |
2.27 kg |
| Maximum cleaning volume |
with platform: 180mm x 121mm x 153mm; without platform: 201mm x 124mm x 255mm |
Mercury XS CURE
| Control method |
Knob + button |
| Rated power |
36W |
| Input voltage |
110V/240V 50/60Hz |
| Time setting |
0-30 minutes |
| Machine size |
246mm x 230mm x 363.5mm |
| Net weight of the machine |
2.4kg |
| Maximum curing size |
200mm x 260mm |
