Description

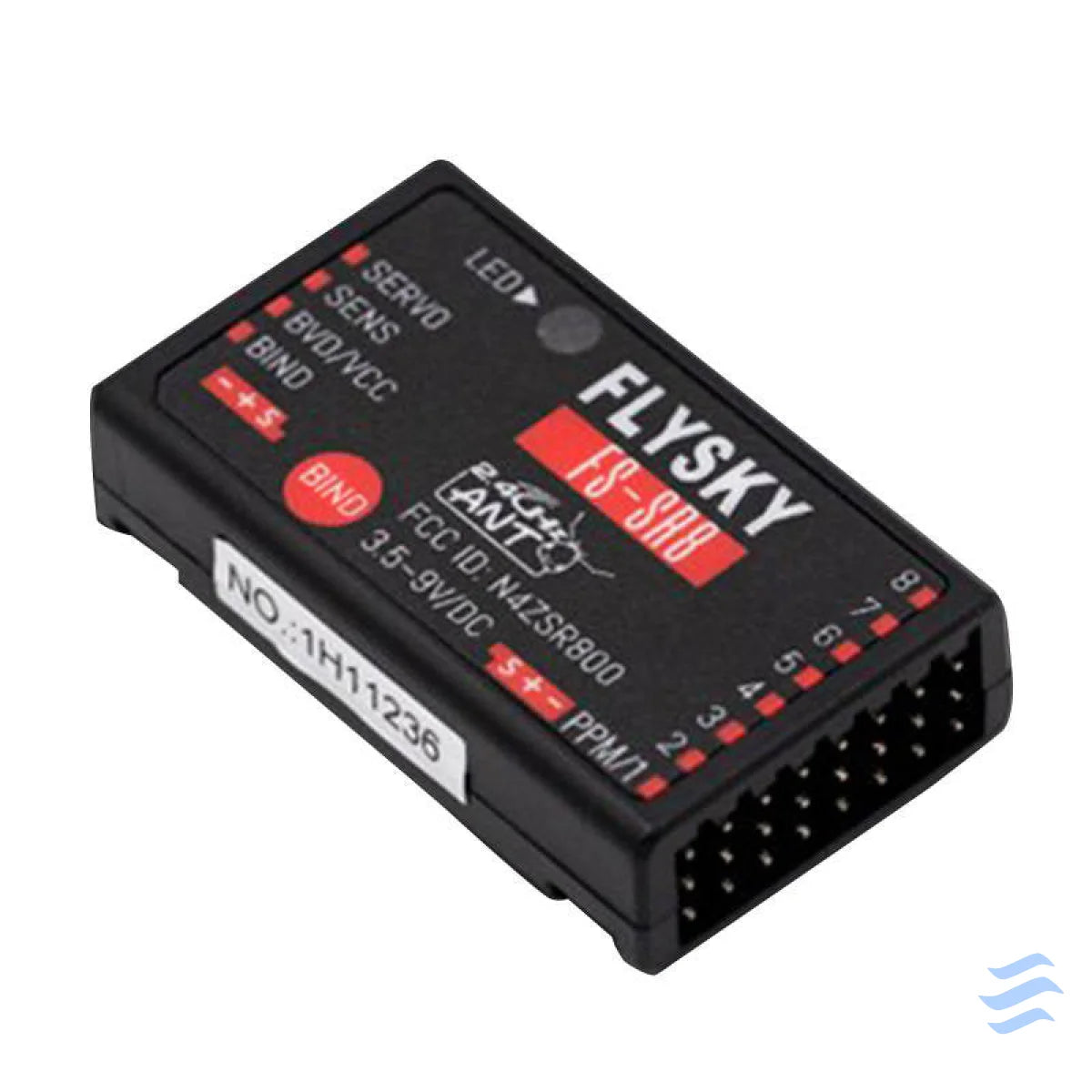

FlySky FS-SR8 receiver
The FS-SR8 is an 8-channel dual antenna receiver that operates at a frequency of 2.4 GHz. It stands out with a range of up to 1,000 meters on the surface. Its dimensions are only 44.8 x 26.6 x 11.3 mm, and it weighs only 10 g. It is designed for FS-ST8, FS-4GP, FS-G7P transmitters and uses the stable ANT protocol. It supports RSSI power indicator and PWM, PPM, i.BUS and s.BUS output signals.
Manufacturer |
FlySky |
Model |
FS-SR8 |
Number of PWM channels |
8 |
Wireless frequency |
2.4GHz |
Protocol |
ANT |
Range |
up to 1000 m (on the surface) |
Antenna |
Dual |
Input power |
3.5-8.4V |
RSSI |
Supported |
Output signal |
PWM, PPM, i.BUS, s.BUS |
BVD function |
Yes, 0-70V |
Operating temperature |
From -10℃ to 60℃ |
Humidity range |
20% to 95% |
Online update |
Yes |
Dimensions: |
44.8 x 26.6 x 11.3 mm |
Weight |
10 g |
Certifications |
CE, FCC ID:2A2UNSR800 |
