Description

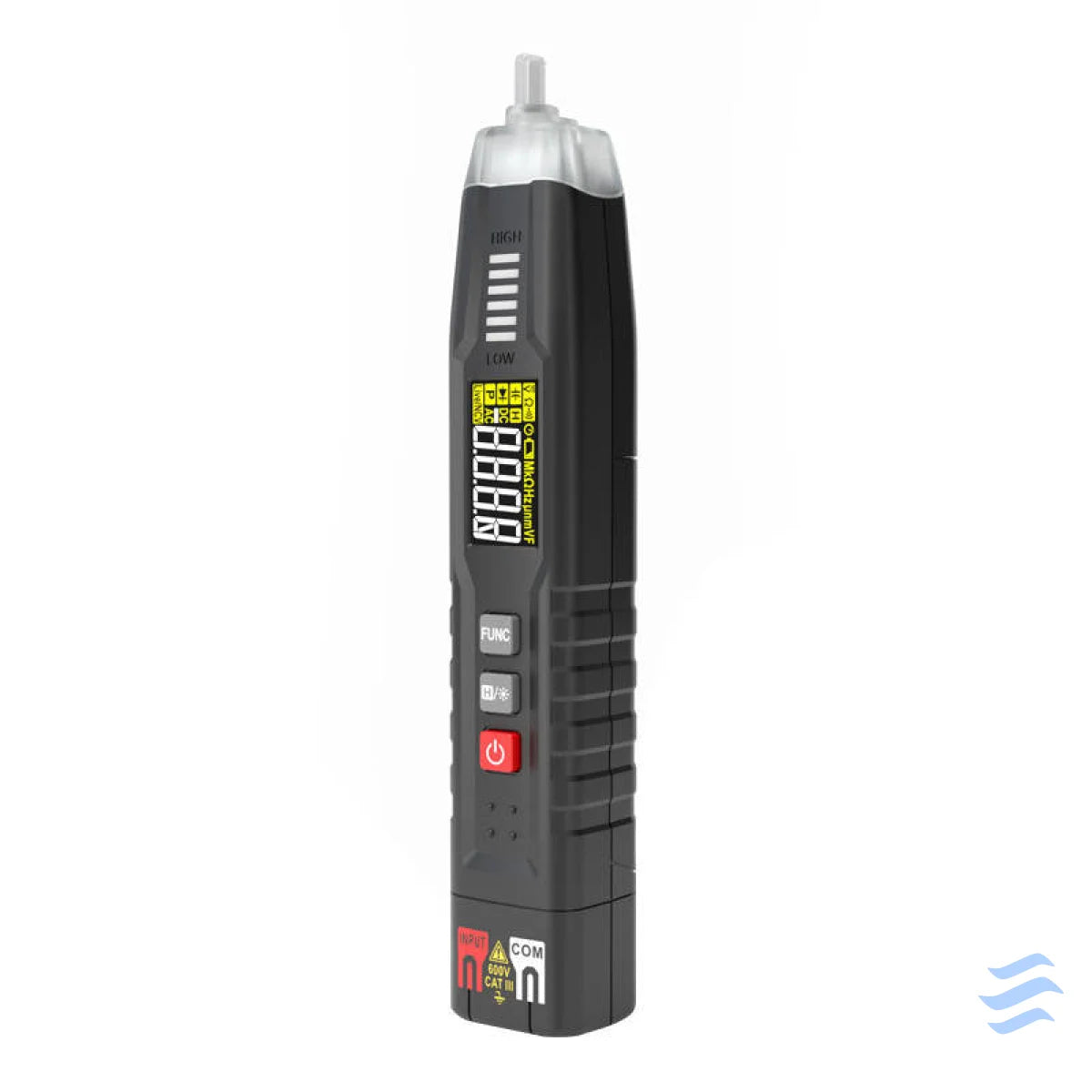

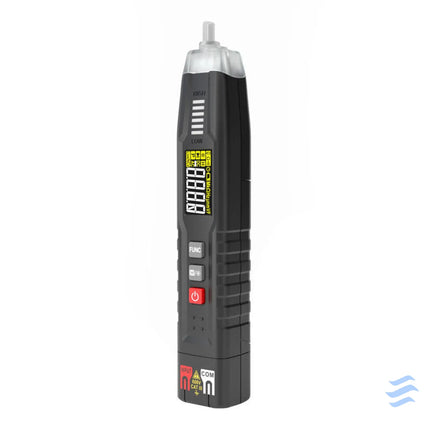

Habotest HT122 smart digital multimeter
The smart digital multimeter from Habotest is distinguished by its high precision and use of practical solutions. The HT122 is lightweight and compact, offering an easy-to-read display, flashlight and SMART functions. It is powered by 2 AAA batteries.
Many possibilities
With the multimeter, you can quickly and conveniently measure AC/DC voltage values and use the NCV detector. What's more, the HT122 allows you to test diodes and verify the true RMS value. The clear display will provide quick access to the obtained measurements and information about the device's operation.
Convenience of use
The instrument features a compact, convenient-to-use design. It has been equipped with pushbuttons that will allow you to easily activate the desired measurement option. The multimeter also offers a data storage function and a flashlight, which will make working in poorly lit areas easier. The HT122 will also let you know if it is near a flowing voltage - using a specific beep and LED color.
SMART features
The device uses smart features to perform its role effectively. It guarantees effective short-circuit protection, automatic recognition of the type of measurements being taken or detection of three-phase sequences. It is also distinguished by an automatic shutdown function and the use of a low power indicator.
| Producer |
Habotest |
| Model |
HT122 |
| DC voltage |
4.000V / 40.00V / 400.0V / 600V |
| AC voltage |
4.000V / 40.00V / 400.0V / 600V |
| Resistance |
400.0Ω / 4.000KR / 40.00KR / 400.0KR / 4.000MR / 40.00MR |
| Capacitance |
4.000nF / 40.00nF / 400.0nF / 4.000mF / 40.00mF |
| Frequency |
40Hz / 400Hz / 4kHz / 40 kHz / 400 kHz / 4MHz |
| Counts |
4000 |
| SMART function |
Auto recogniction of AC/DC voltage, Res, Cont |
| Live test |
Yes |
| Diode test |
Yes |
| Three-phase sequence detection |
Yes |
| True RMS |
Yes |
| Low battery indication |
Yes |
| Auto power off |
Yes |
| Backlight |
Yes |
| Flashlight |
Yes |
| Safety rating |
EN61010-1,2-030; EN61326-6, CAT III 600V |
