Description

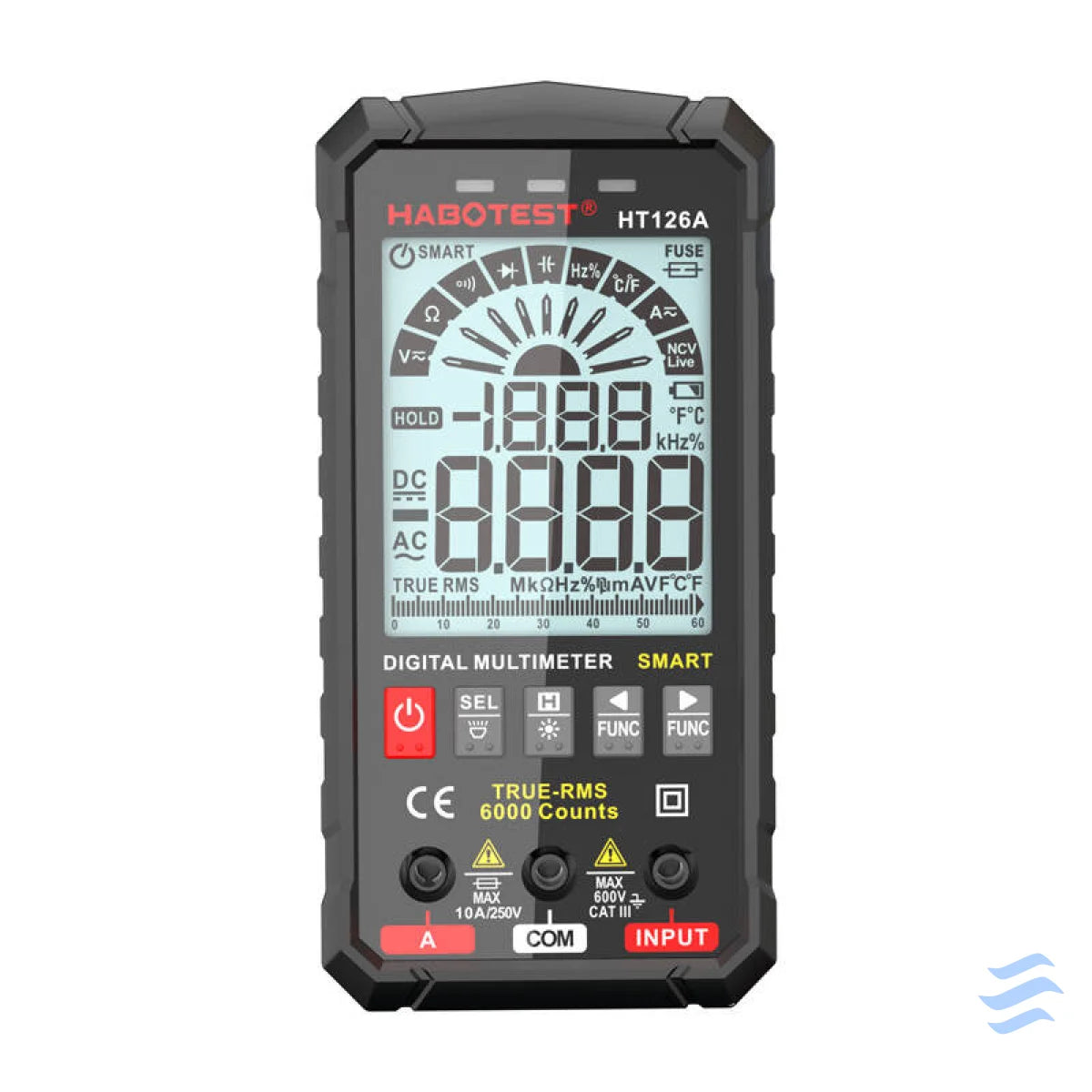

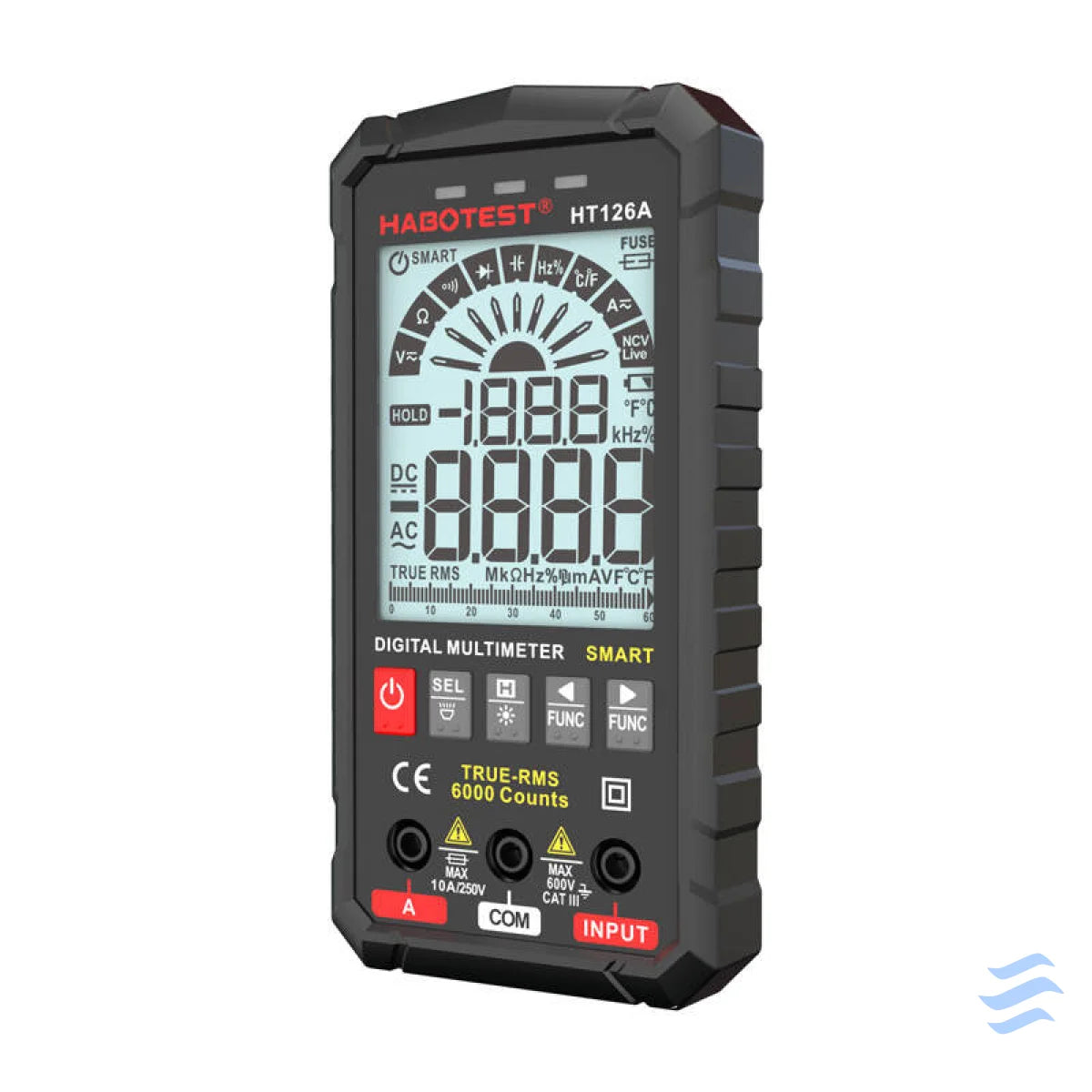

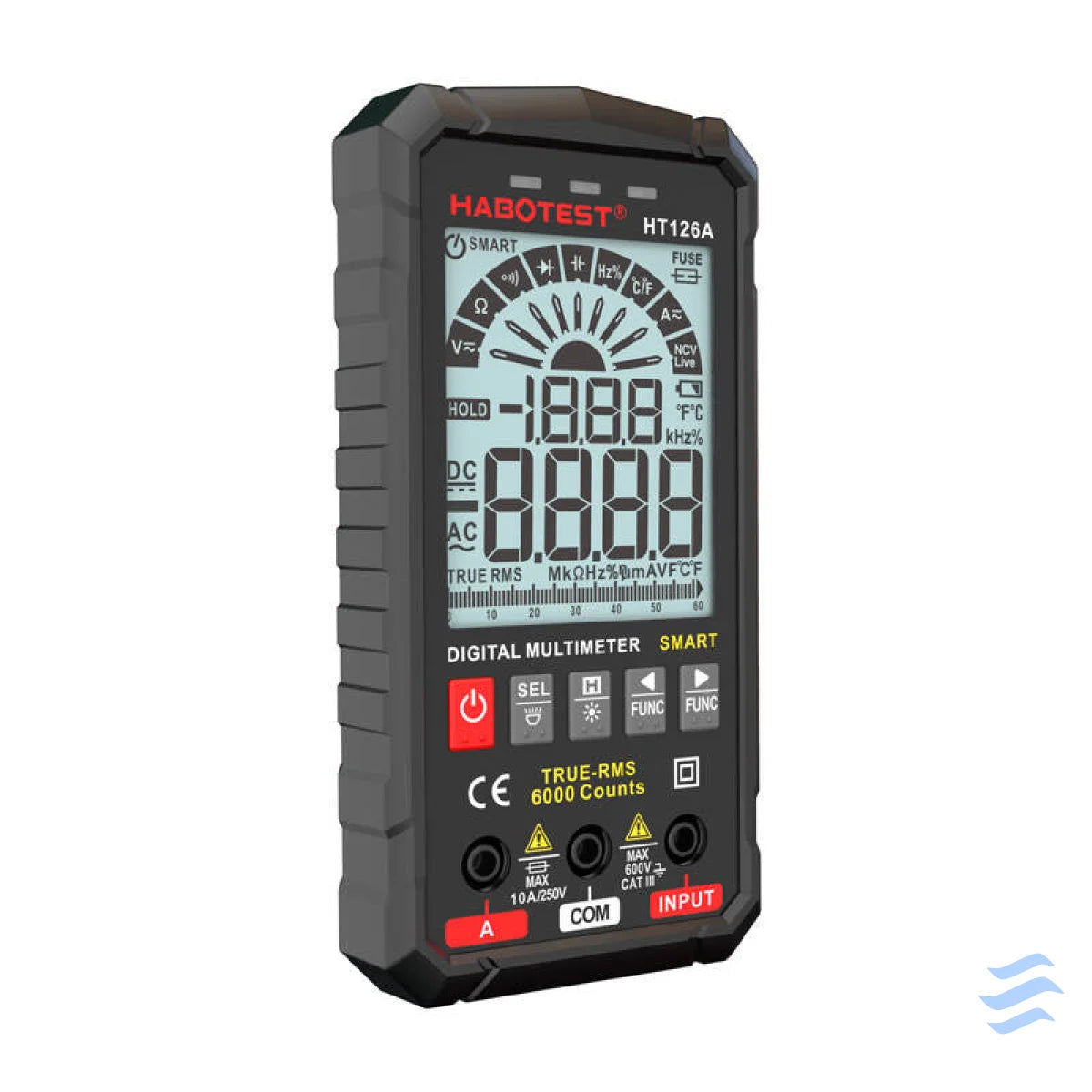

Habotest HT126A Digital Universal Multimeter
HT126A is a smart and rugged multimeter from Habotest. It is distinguished by its precision measurement, you can also use it outdoors. Equipped with a large display and silicone buttons - it is simple and comfortable to use. Compact and lightweight - it also has a LED flashlight, which allows you to work even in dark places. It requires 4 AAA 1.5V batteries to power it. However, these are not included and must be purchased separately. You can use it to measure voltage, resistance, capacitance, etc.
Convenience of use
Multimeter is designed to provide you with maximum comfort of use. Small and handy - its thickness is 25.7 mm. The large display provides convenient access to all important information. In addition, silicone buttons facilitate the operation of the device.
Great features
The Habotest brand multimeter stands out for its incredible precision. It accurately measures AC and DC voltage and current, resistance and capacitance, among other things. You can also check the activity of cables. With its help you can test diodes, check continuity and true RMS value. It also enables non-contact voltage detection (NCV). Use the arrows to change the mode of the device, then the LED indicator around the jack input port lights up green.
User-friendly

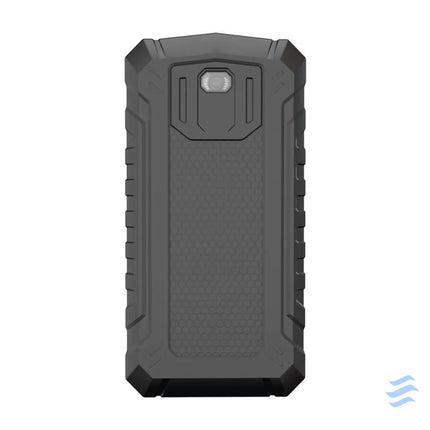

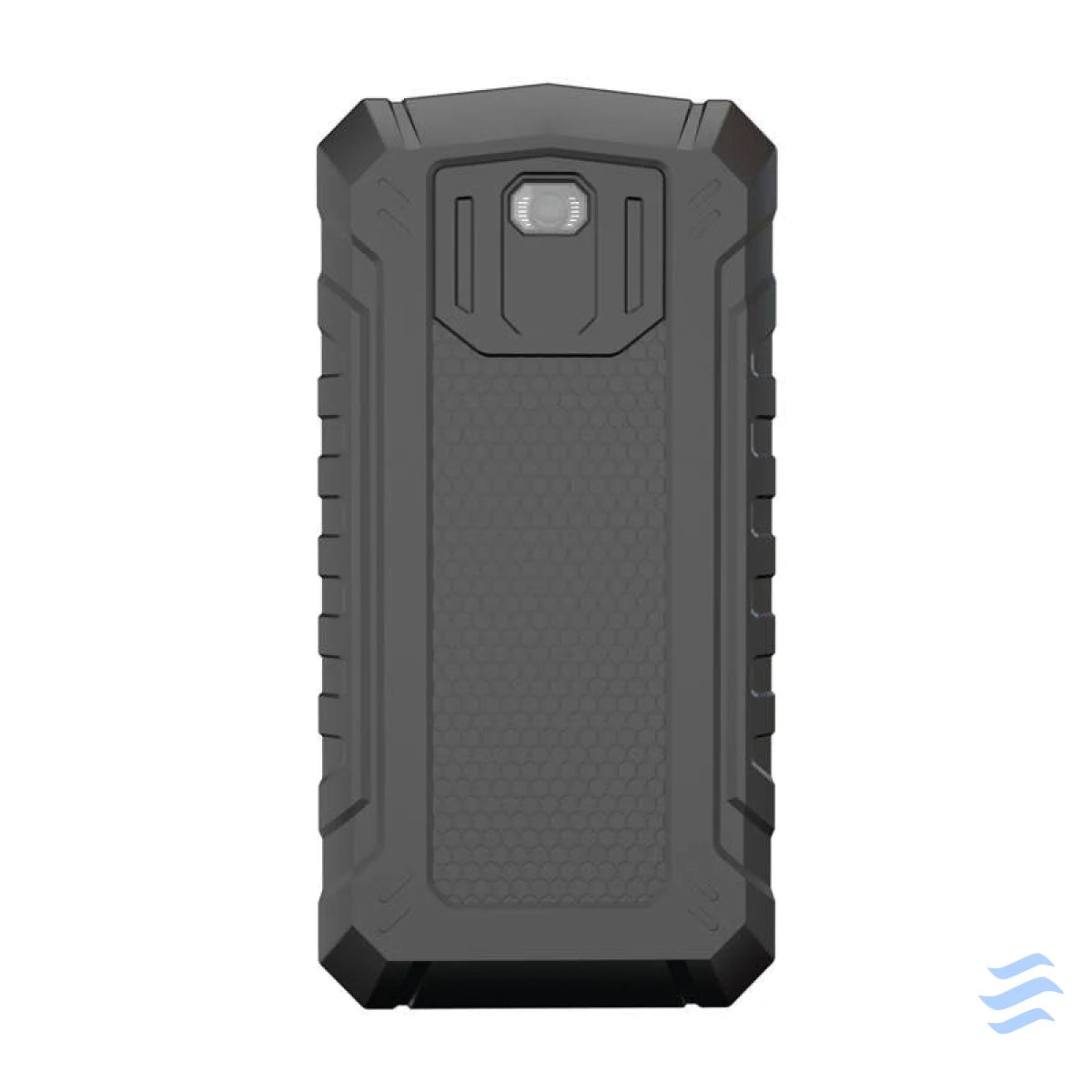

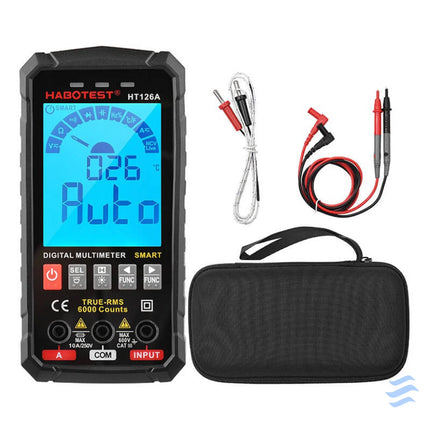

This is not the end of the multimeter's benefits. The built-in LED flashlight will provide you with illumination when working in dark rooms. The soft protective case not only protects the unit from damage, but also makes it easy to transport and store. Replacing the HT126A battery is quick and easy, so you won't have any problems.
| Brand |
Habotest |
| Model |
HT126A |
| DC voltage measurement range |
600mV / 6V / 60V / 600V |
| AC voltage measurement range |
6V / 60V / 600V |
| DC current measurement range |
600mA / 10A / 6A |
| AC current measurement range |
600mA / 10A / 6A |
| Resistance measuring range |
600 ꭥ / 6kꭥ / 60kꭥ / 600kꭥ / 6Mꭥ / 60Mkꭥ
|
| Capacitance measurement range |
6nF / 60nF / 600nF / 6µF / 60 µF / 600µF / 6mF / 60mF
|
| Frequency measurement range |
6Hz / 60Hz / 600Hz / 6kHz / 60kHz / 600kHz / 6MHz / 10MHz |
| Measurement range for the fill factor |
1.0 ~ 99.0% |
| Temperature (°C/°F)
|
-40 ° C ~ 100 ° C / -40 ° F ~ 1832 ° F
|
| Diode testing |
Yes, 0 ~ 3V |
| NCV |
Yes |
| Live test |
Yes |
| Continuity |
& lt; 50 ꭥ
|
| Diode testing |
Yes |
| Continuity |
Yes |
| Number of counts |
6000 |
| Display |
TN |
| Data storage |
Yes |
| True RMS |
Yes |
| Blown fuse indication |
Yes |
| Low battery indicator |
Yes |
| Auto power off |
Yes |
|
Jack input port LED
|
Yes |
| Backlight |
Yes |
| Flashlight |
Yes |
| Power |
4x 1.5V AAA battery (not included) |
| Security |
EN61010-1;
EN61326-1 CAT III 600V |
| Weight |
ok. 182 g |
| Dimensions |
146 x 73 x 26 mm |
