Description

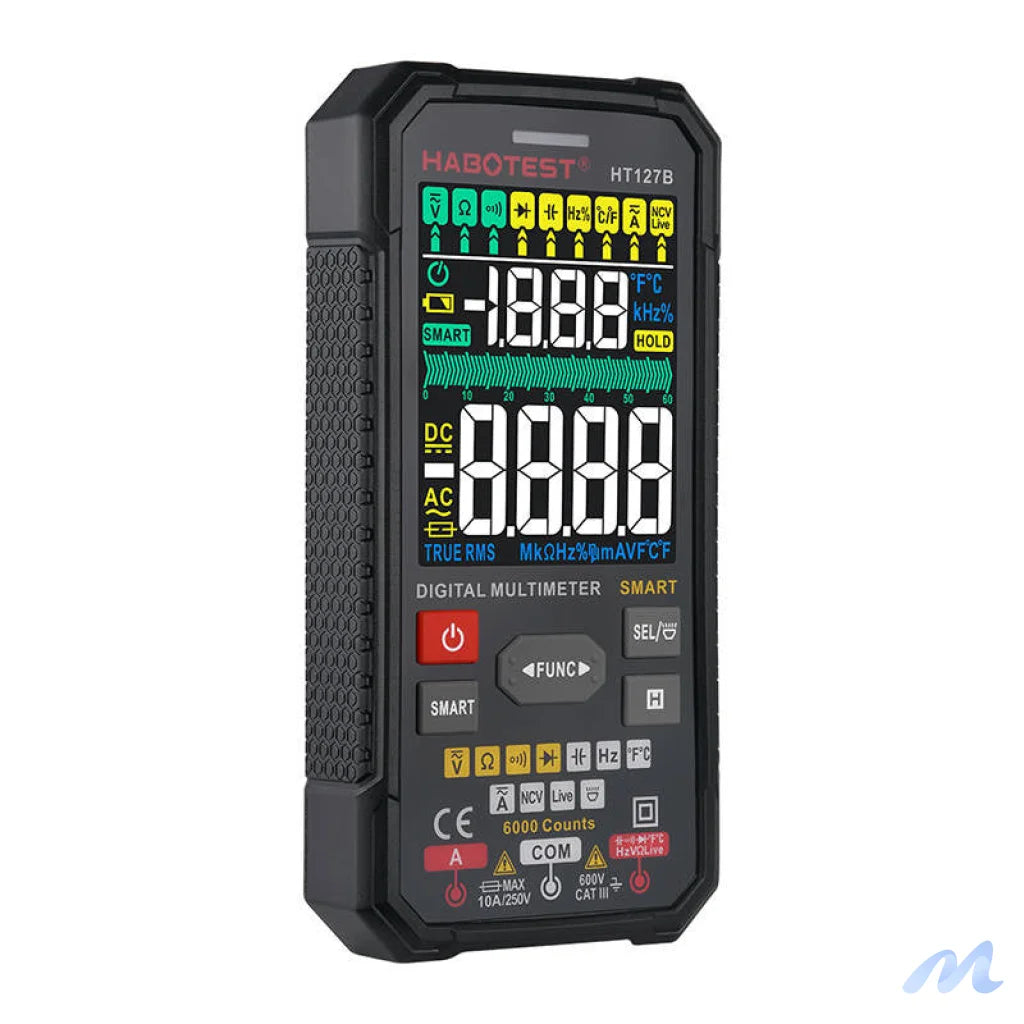

Habotest HT127B digital universal multimeter
Habotest HT127B digital multimeter is a multifunctional device that will prove useful during electrical work. The product allows you to measure voltage, resistance, capacitance and many other parameters. The multimeter has an easy-to-read display that allows you to conveniently read the measurement results, plus it is equipped with a flashlight and practical buttons.
Many useful functions
Habotest HT127B digital universal multimeter is a handy device that surprises with the enormity of its capabilities. It allows you to measure with high precision AC and DC voltage and current, resistance, temperature or capacitance, among others. In addition, it offers a Live Test function, enables diode testing, non-contact voltage detection (NCV) and much more. Importantly, the multimeter has practical buttons with which you can efficiently select a function.
Well designed
Thanks to its small size (71.5 x 26 x 145 mm), the device fits well in the hand and provides high comfort. It is powered by four AAA batteries, which you can easily remove and replace. The soft material case is pleasant to the touch, plus it provides effective insulation and is drop-resistant.
Included
- Digital universal multimeter
- Test leads
- User's manual
| Manufacturer |
Habotest |
| Model |
HT127B |
| DC voltage measurement range |
600mV/6V/60V/600V |
| AC voltage measurement range |
6V/60V/600V |
| DC current measurement range |
600mA/ 10A |
| AC current measurement range |
600mA/ 10A |
| Resistance measurement range |
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ |
| Capacitance measurement range |
6nF/60nF/600nF/6µF/60µF/600µF/6mF |
| Frequency measurement range |
60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz |
| Fill factor measurement range |
1.0~99.0% |
| Temperature (°C/°F) |
-40°C ~ 1000°C / -40°F ~ 1832°F |
| Diode testing |
Yes, 0~3V |
| NCV |
Yes, audible and light alarm |
| Live test |
Yes, audible and light alarm |
| Continuity |
<50ꭥ |
| Number of counts |
6000 |
| Display |
VA |
| Data storage |
Yes |
| True RMS value |
Yes |
| Blown fuse indication function |
Yes |
| Low battery indicator |
Yes |
| Automatic power off |
Yes |
| Jack input port indicator |
Yes |
| Backlighting |
Yes |
| Flashlight |
Yes |
| Power supply |
4x 1.5V AAA battery |
| Safety |
EN61010-1, CAT III 600V |
| Dimensions |
145 x 71.5 x 26 mm |
