Description

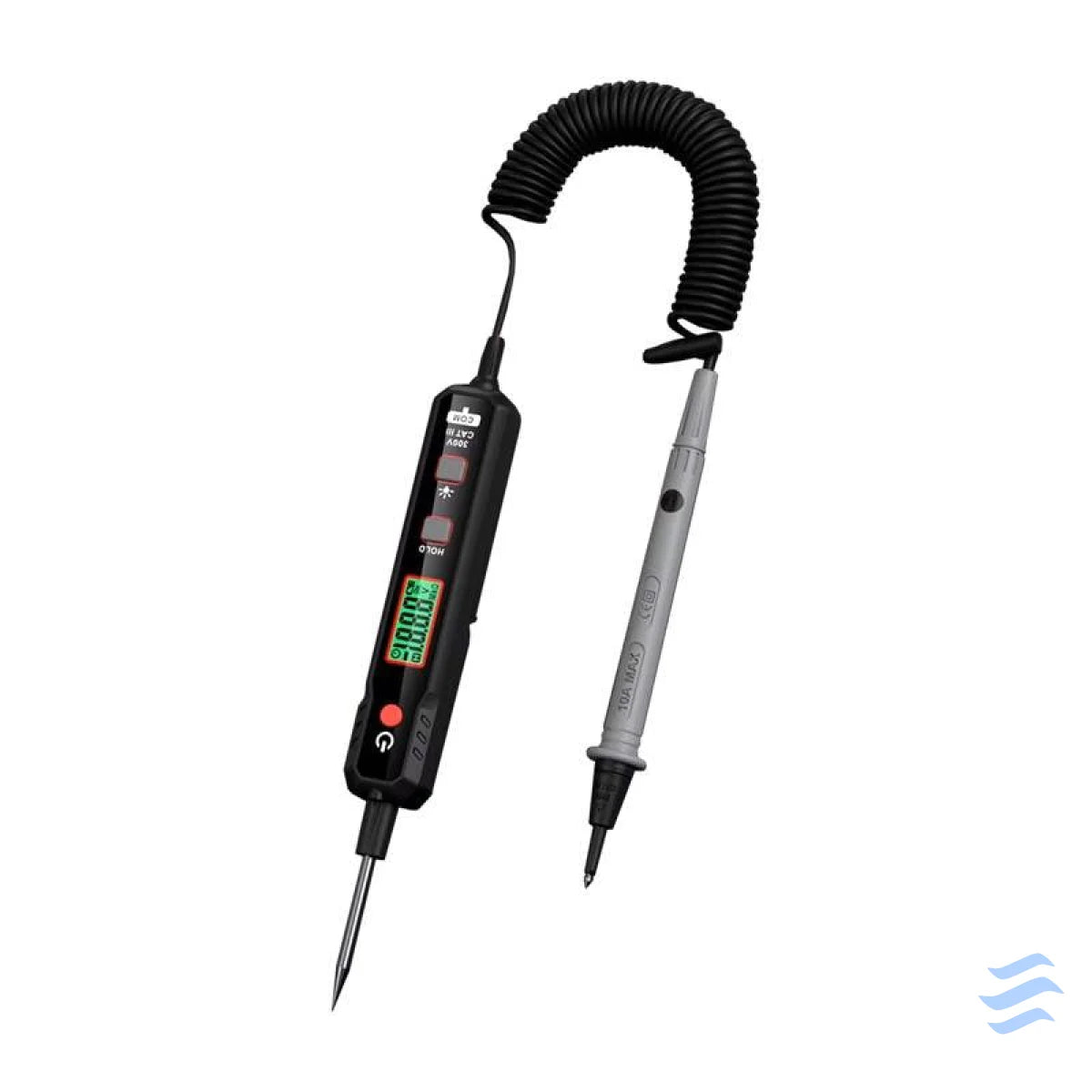

Habotest HT86B digital multimeter
The Habotest HT86B digital multimeter automatically detects AC/DC voltage, resistance and circuit continuity. With a wide measurement range (0.8V - 300V), it enables accurate diagnosis of electrical installations, batteries, cables and other components. The backlit LCD display, data hold function (Data Hold) and automatic shutdown provide convenience of use. The metal measuring probe, flexible cable and built-in LED flashlight make the device indispensable for both home and professional use.
Precise measurements
The Habotest HT86B can measure AC and DC voltage from 2V to 300V and resistance from 200Ω to 20MΩ, making it an ideal diagnostic tool for electricians and do-it-yourselfers. The high accuracy of the measurements (1.0% + 5 for voltage and 1.2% + 5 for resistance) guarantees precise results, and an over-range ("OL") indicator indicates off-scale values.
Automatic detection
The multimeter automatically identifies AC/DC voltage, resistance and circuit continuity without having to manually switch modes. If the resistance is less than 50Ω during a continuity test, the unit beeps, making it easier to detect wire breaks and damaged connections.
LCD screen
Thanks to the high-resolution LCD display, measurement results are easy to read even in adverse lighting conditions. The Data Hold function keeps the current reading on the screen, making it easy to record and analyze results. A low battery indicator reminds you when the battery needs to be replaced, ensuring continuous operation.
LED backlight and durable probe
The LED light allows convenient operation in poorly lit areas, such as switch boxes and workshops. The metal measuring probe is robust and precise, and an additional protective cover protects it from damage.
Ergonomic design
The HT86B has a slim, ergonomic pen-like housing, making it comfortable in the hand and easy to use. The flexible spring-loaded spiral cord makes it easy to store and prevents tangling. An automatic shut-off function after 15 minutes saves power, and the AAA battery power supply (not included) provides mobility and convenience. The multimeter maintains performance in temperatures ranging from 0 to 40°C.
Included:
- Habotest HT86B digital multimeter
- Protective cover
- User manual
| Manufacturer |
Habotest |
| Manufacturer code |
HT86B |
| DC voltage measurement |
2,000V / 20.00V / 200.0V / 300V (~310V displayed as OL) |
| AC voltage measurement |
2,000V / 20.00V / 200.0V / 300V (~310V displayed as OL) |
| Resistance measurement |
200Ω / 2,000kΩ / 20.00kΩ / 200.0kΩ / 2,000MΩ / 20MΩ |
| Circuit continuity test |
Sound signal for values below 50Ω |
| Measurement resolution |
DC/AC voltage: 0.001V / 0.01V / 0.1V / 1V ; Resistance: 1Ω / 0.01kΩ / 0.1kΩ / 0.01MΩ / 0.1MΩ |
| Measurement accuracy: |
DC/AC voltage: ±1.0% + 5 ; Resistance: ±1.2% + 5 |
| Additional functions: |
Auto shut-off, low battery indicator, LCD backlight, audible alarm, built-in LED flashlight |
| Power supply |
1x AAA 1.5V battery (not included) |
| Dimensions |
175 x 26 x 23 mm |
| Weight |
approx. 68 g |
| Safety standards |
EN61010-1, -2-030, EN61010-2-033, CAT III 300V |
