Description

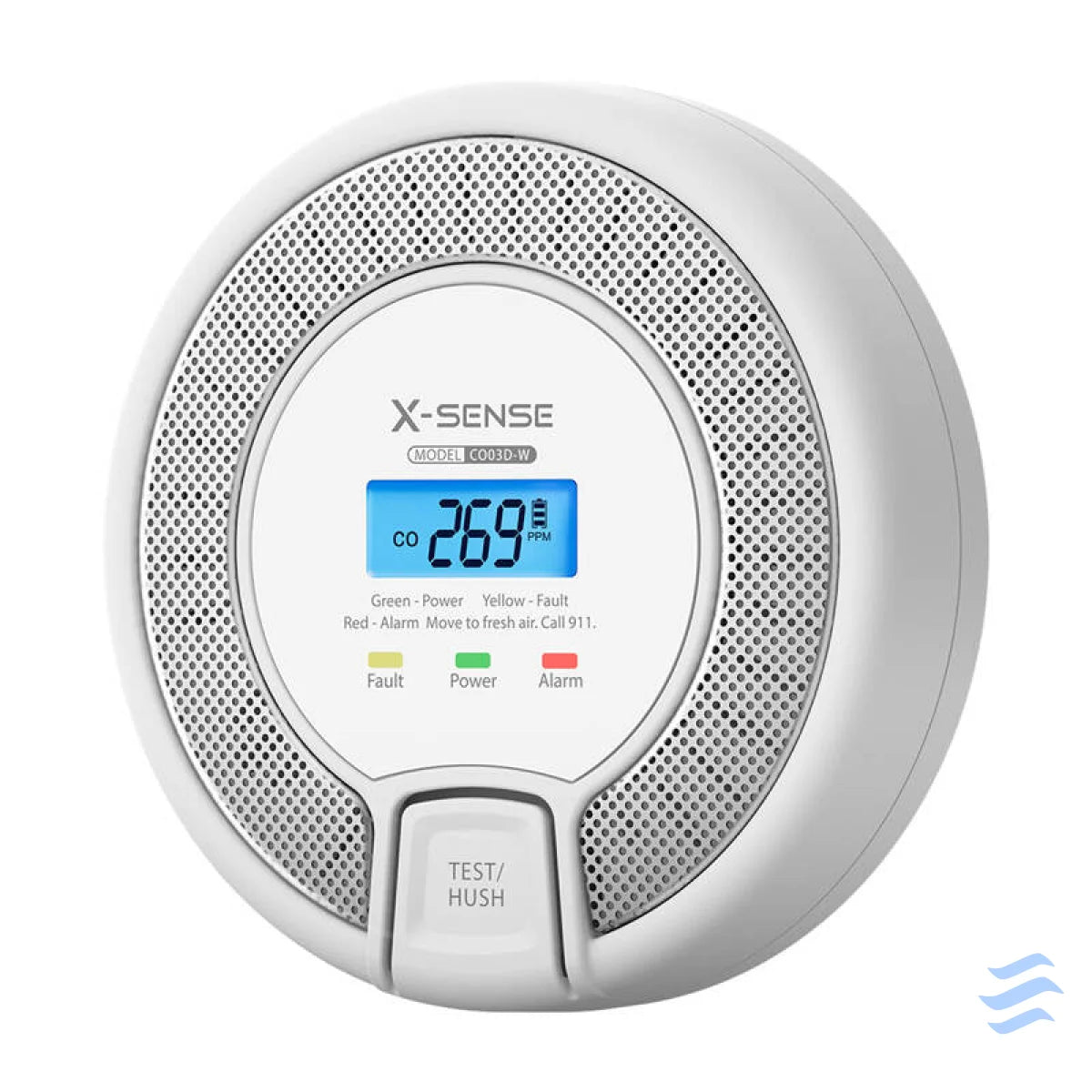

X-Sense CO Sensor CO-3D-W Link+.
The X-Sense CO03D-W Link+ is an advanced wireless carbon monoxide sensor that offers the highest level of protection against the dangerous and odorless gas carbon monoxide (CO). With its wireless connectivity feature, this sensor creates a safety network in the home, allowing it to synchronize with other X-Sense Link+ alarms, meaning that when one sensor detects a danger, all other devices on the network immediately sound the alarm. This advanced feature gives you the maximum level of protection and the assurance that everyone in the house will be immediately alerted to a threat, no matter where they are.
Wireless network for complete protection
The CO03D-W detector uses Link+ wireless technology, which allows up to 24 devices to be connected on a single network, making it an ideal choice for large homes or multi-story buildings. When one device detects the presence of carbon monoxide, all other alarms on the network will sound immediately, alerting the entire family to the danger. With this solution, all household members can be sure they are protected, even if they are far from where the danger is detected.
Precision Figaro CO Sensor
Inside the X-Sense CO03D-W sensor is a high-end electrochemical sensor from Figaro, which provides reliable and precise detection of carbon monoxide. The sensor responds to different concentrations of CO depending on their level, triggering an alarm faster in the event of a greater threat, allowing for faster rescue efforts. For example, at a concentration of 30 ppm, the alarm will be triggered after 120 minutes, but at a concentration of 300 ppm, after only 3 minutes.
LCD display and LED indication
With an easy-to-read LCD display, you can monitor the level of CO concentration in the room in real time, allowing you to monitor the situation at all times. The tri-color LED indicators - green, yellow and red - provide additional information about the device's status, such as operational readiness, low battery and alarm signal. A high-pitched audible alarm of ≥85 dB at 1 meter ensures that the signal will not be missed, even in noisy environments.
Replaceable batteries and low power warning
The sensor is powered by three AA alkaline batteries, which can be easily replaced, allowing for long-term use of the device. A built-in low-battery warning system ensures that you will be notified when the batteries need to be replaced, guaranteeing uninterrupted operation of the sensor.
Test and mute function
The X-Sense CO03D-W is equipped with a test/silence button that allows you to easily test the sensor and mute the alarm when needed. Regular testing of the alarm is key to making sure it is working properly. If a false alarm is detected, the beep can be silenced for up to 9 minutes, eliminating the need to immediately dismantle the unit.
Compact design and easy installation
The X-Sense CO03D-W carbon monoxide detector features a modern and compact design, making it fit discreetly into any interior. Its small size (110 x 110 x 37 mm) and lightweight design facilitate installation, which is quick and easy, thanks to the included mounting accessories.
Included
- CO sensor x1
- Mounting bracket x1
- Mounting screws x2
- Mounting pins x2
- 1.5V AA alkaline batteries x3
- Instruction manual x1
| Manufacturer |
X-Sense |
| Model |
CO03D-W |
| Safety standard: |
EN 50291-1:2018 |
| Sensor type: |
Electrochemical (Figaro) |
| Service life: |
10 years |
| Power supply: |
3 × 1.5 V AA alkaline batteries (replaceable) |
| Alarm level: |
≥ 85 dB at 1 m |
| Operating temperature range: |
4.4-37.8°C (40-100°F) |
| Operating humidity: |
≤ 85% RH (non-condensing) |
| Mute time: |
≤ 9 minutes |
| Indicators: |
Red, green and yellow LEDs |
| Product weight: |
133 g |
| Product dimensions: |
110 x 110 x 37 mm |
| Maximum number of connected devices: |
24 units |
