Description

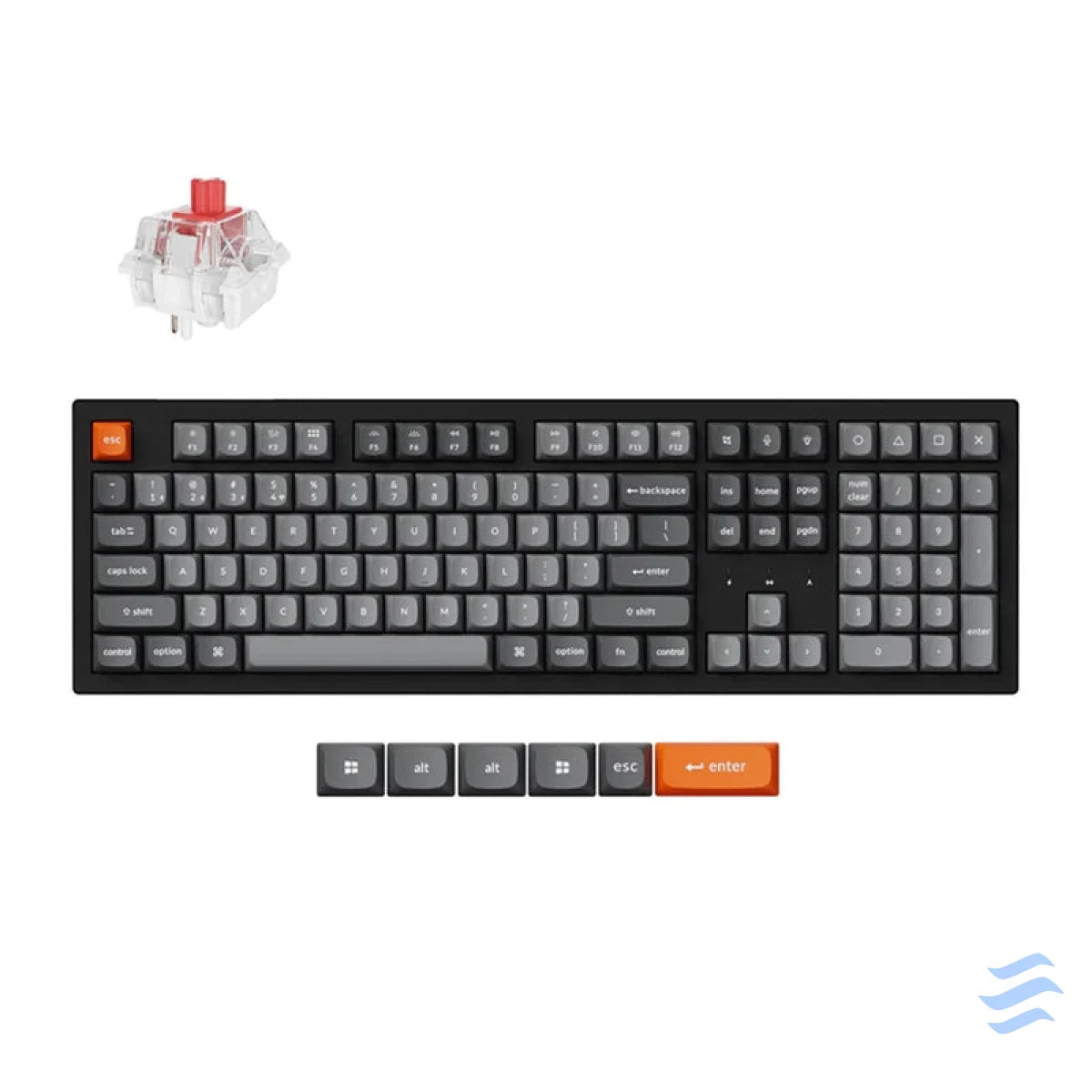

Keychron K10 Max RGB Red Switch Wireless Keyboard (Black) [K10M-B1]
The Keychron K10 Max is a wireless mechanical keyboard with a full 100% layout (108 keys) that combines versatility, typing comfort and high performance. With support for 2.4GHz connectivity, Bluetooth and USB-C, it provides flexibility in any situation - whether working or playing. The ability to program macros with QMK and the Keychron Launcher app allows full personalization of settings.
3 ways to connect
The K10 Max offers 2.4 GHz wireless connectivity with a refresh rate of 1000 Hz, which guarantees low latency - perfect for dynamic gaming. With Bluetooth 5.1, you can conveniently switch between 3 devices, such as a computer, tablet and phone. The keyboard also supports a wired connection, giving you extra stability for demanding tasks.
Full personalization with QMK and Keychron Launcher
With QMK software, you have the ability to freely map keys, create macros and shortcuts, customizing the keyboard to your needs. In addition, the Keychron Launcher app allows easy configuration through your browser - just plug in the K10 Max in wired mode and use Chrome, Edge or Opera.
Comfort of use
The K10 Max is distinguished by the use of multiple layers of acoustic foam, such as IXPE, PET and EPDM, which improve user comfort. In addition, the steel mounting plate ensures quick response with each press, and the optimal weight of the device increases stability. On the other hand, the 3-position angle adjustment and OSA profiled keys provide optimal wrist support, reducing fatigue even when typing and playing for hours.
Universal compatibility
With Mac users in mind, the K10 Max is equipped with a dedicated system switch and additional keys for macOS and Windows. The ability to save two layouts means you can quickly switch between systems without having to reconfigure.
Powerful performance and low latency
At the heart of the K10 Max is a high-performance ARM microcontroller with 256 KB of Flash memory, which provides great working flexibility and fast performance. In 2.4 GHz and wired modes, the keyboard operates at 1000 Hz, which means virtually imperceptible latency - even in dynamic games.
Swappable switches
The K10 Max supports hot-swap, which means you can freely swap switches without soldering. Compatibility with most MX 3-pin and 5-pin switches (Cherry, Gateron, Kailh, Panda and others) allows full customization in seconds. In addition, the red Keychron Super Switch mechanical switches used in the K10 Max are characterized by high precision manufacturing and durability of up to 50 million clicks.
Durability and stability for a long time
For greater comfort, the keyboard is equipped with dual PBT keys in OSA profile (OEM with rounded edges). They are resistant to abrasion even with prolonged use. What's more, screw-mounted PCB stabilizers improve the stability of larger keys such as space, shift, enter and delete. The keyboard also supports third-party stabilizers.
RGB backlighting
The RGB backlighting is designed to be clearly visible from all angles. You can choose from 22 backlighting modes, as well as change its color, saturation, brightness and speed. This allows you to fully customize the keyboard to suit your own style.
Included
- keyboard
- USB-A to USB-C cable
- USB-A 2.4 GHz receiver
- USB-A to USB-C receiver extension
- switch removal and replacement tool
- screwdriver
- allen wrench
| Manufacturer |
Keychron |
| Model |
K10 Max |
| Color |
black |
| Number of keys |
108 (100%) |
| Switches |
mechanical, Red Switch |
| Number of multimedia keys |
12 |
| Frame material |
ABS |
| Keycap material |
double PBT |
| Overlay profile |
OSA |
| Layout |
ANSI |
| Sampling frequency |
1000 Hz (2.4 GHz, wired mode); 90 Hz (Bluetooth mode) |
| N-Key Rollover (NKRO) |
Yes (for wired and wireless modes) |
| Backlighting |
22 types of RGB backlighting |
| Rechargeable battery |
Lithium-polymer, 4000 mAh |
| Operating time |
About 190 h (without backlight); about 100 h (with backlight) |
| Connection |
2.4 GHz / Bluetooth / USB-C |
| Bluetooth version |
5.1 |
| Compatibility (systems) |
MacOS / Windows / Linux |
| Dimensions |
447.37 x 139.82 mm |
| Weight |
1530 g |
| Height without keys (front) |
23.7 mm |
| Height without keys (rear) |
29.8 mm |
| Height with keys (front) |
32.9 mm |
| Height with keys (rear) |
40.1 mm |
| Writing angle |
3,43°, 7,26° i 10,06° |
| MCU |
ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Operating temperature |
-10 to 50 ℃ |
