MINI PC Minis Forum NAB9 Plus Intel Core i9-12900HK 16 GB RAM + 512 GB
The Minis Forum NAB9 Plus combines high performance with compact dimensions. The Intel® Core™ i9-12900HK Alder Lake processor is equipped with 14 cores and 20 threads, which translates to a maximum clock speed of up to 5 GHz. You'll also gain 16GB of DDR4 RAM and a fast 512GB PCIe 4.0 SSD, allowing you to work comfortably. Importantly, the hardware can be easily mounted with a VESA mount, saving space on your desk.
Intel Core i9 processor
The Intel® Core™ i9-12900HK chip used is a unit with 14 cores and 20 threads, which can operate at up to 5 GHz. Thanks to the use of Intel 7 architecture and Alder Lake technology, the processor can perfectly handle multitasking and advanced programs. It will be perfect for video editing, using advanced analytical tools, etc.
RAM and SSD drive
The Minis Forum NAB9 Plus is equipped with 16 GB of DDR4 RAM clocked at 3200 MHz, which gives a good starting point for most daily tasks. For more demanding users, there is an option to expand the RAM up to 32 GB. What's more, the fast 512GB PCIe 4.0 SSD is expandable up to 4TB. In addition, space is available for a 2.5" SATA HDD.
Cooling that keeps up with the pace of work
A built-in cooling system with fans backed by PCM (Phase Change Materials) technology is responsible for stability during operation. This allows the design to dissipate heat more efficiently, even under heavy load. As a result, it improves cooling efficiency by more than 25%, resulting in lower temperatures and efficient operation while maintaining quiet operation.
Integrated graphics card
The device has an integrated Intel® Iris® Xe graphics card, which will prove useful for everyday tasks, multimedia handling, photo editing or simpler 3D projects. Importantly, the NAB9 Plus supports external graphics cards via the OCulink connector, which allows you to easily connect a GPU without occupying an M.2 slot, a great option for those who want to expand the computer's graphics capabilities in the future, such as for gaming or AI.
Wide connectivity and expansion options

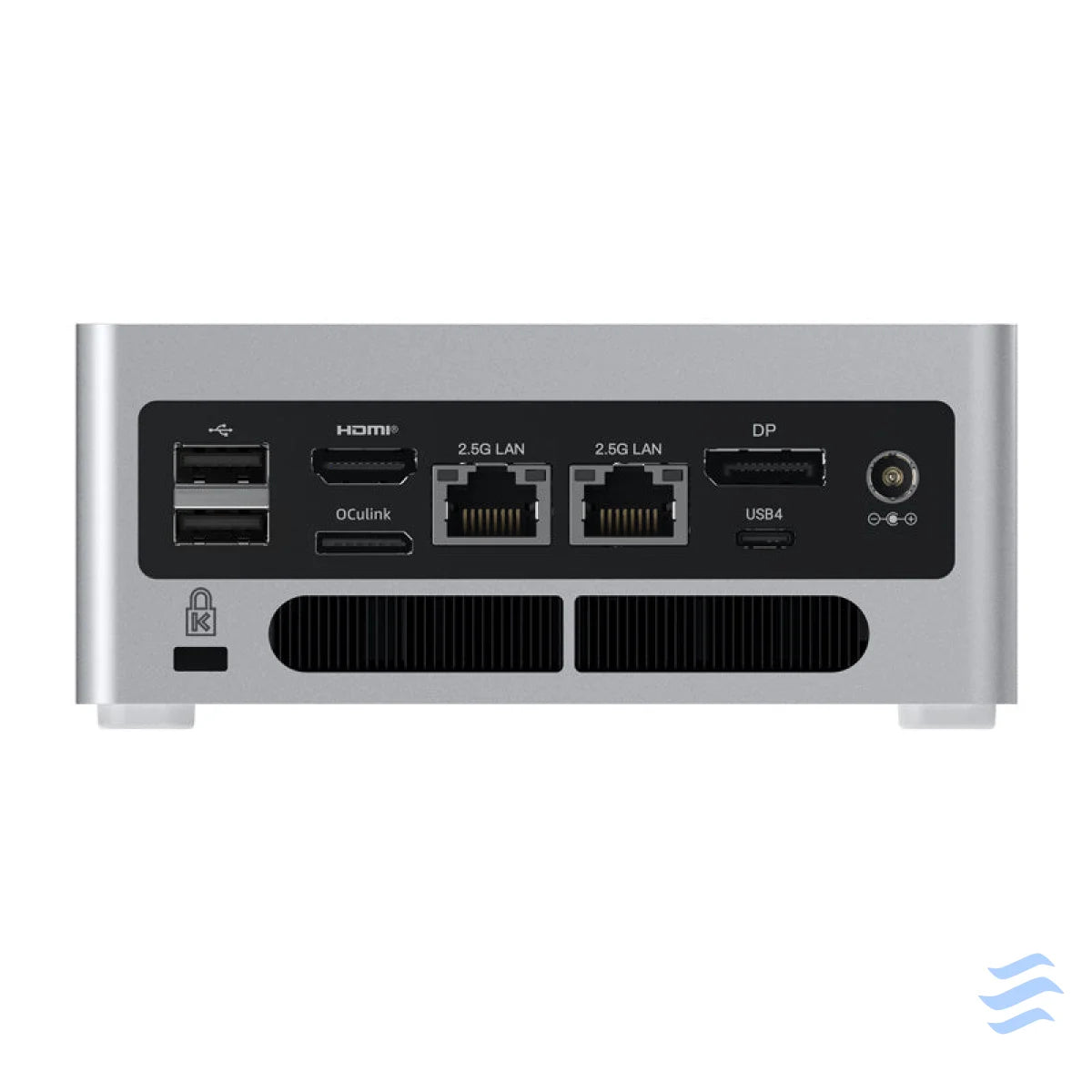

On the back of the chassis is a USB4 port, which supports PD power (65-100 W), data transfer at up to 40 Gbps, as well as video output. There are also two USB 3.2 Gen2 ports, two USB 2.0, HDMI 2.0, DisplayPort 1.4, OCulink, 3.5mm combo jack, and 2 RJ45 2.5G Ethernet ports. That's a rich set of connectors that allows you to connect virtually any peripheral, monitor or accessory - without the use of additional adapters.
Wireless connectivity
The NAB9 Plus features Wi-Fi 6e and Bluetooth 5.3, ensuring fast and stable connection to the network and wireless accessories. This is important especially in remote and mobile work environments, where network reliability is critical.
Included
- Mini PC
- Power cable
- Power adapter
- HDMI cable
- VESA mount
- Screws
- User manual
| Manufacturer | Minis Forum |
|---|---|
| Model | NAB9 Plus |
| Processor | Intel® Core™ i9-12900HK |
| Architecture | Alder Lake |
| Number of cores | 14 |
| Number of threads | 20 |
| Base frequency | none |
| Maximum frequency | 5 GHz |
| Processor technology | Intel 7 |
| RAM type (DDR) | DDR4 |
| RAM capacity | 16 GB |
| RAM memory frequency | 3200 MHz |
| Maximum RAM memory capacity | 32 GB |
| SSD type | M.2 2280 PCIe4.0 SSD ×1; 2.5" SATA HDD ×1 |
| SSD capacity | 512 GB |
| Maximum capacity of SSD | 4 TB |
| Graphics card | Intel® Iris® Xe |
| Connectivity | M.2 2230 Wi-Fi (Wi-Fi 6e, BT5.3) |
| Ports | RJ45 2.5 Gigabit Ethernet Port ×2; USB4 ×1 (rear); USB3.2 Gen2 Type-A ×2; USB2.0 Type-A ×2; HDMI2.0 ×1; DP1.4 ×1; OCulink ×1; DMIC ×1; 3.5mm Combo Jack ×1 |
| Operating system | none |
| Cooling system | built-in fans |
| Mounting | VESA |
Warranty: 24 months
