Description

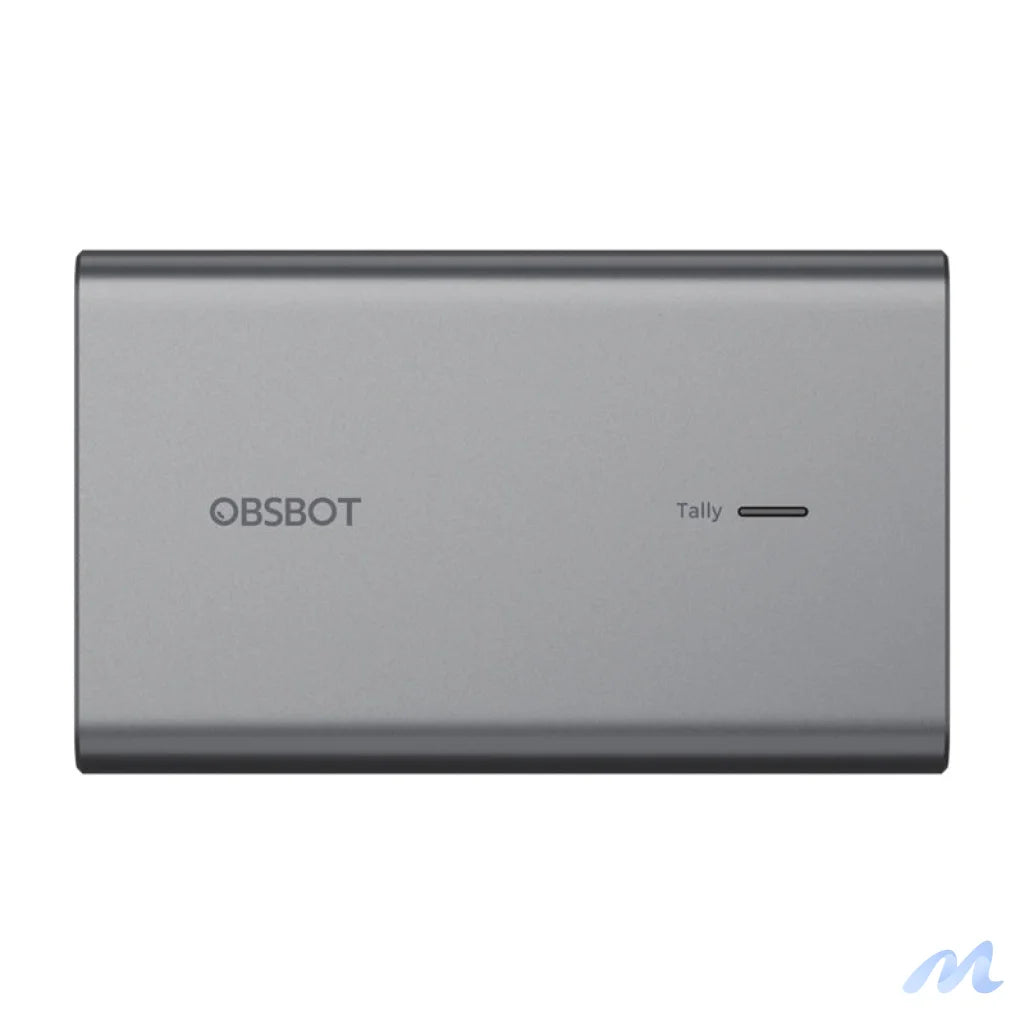

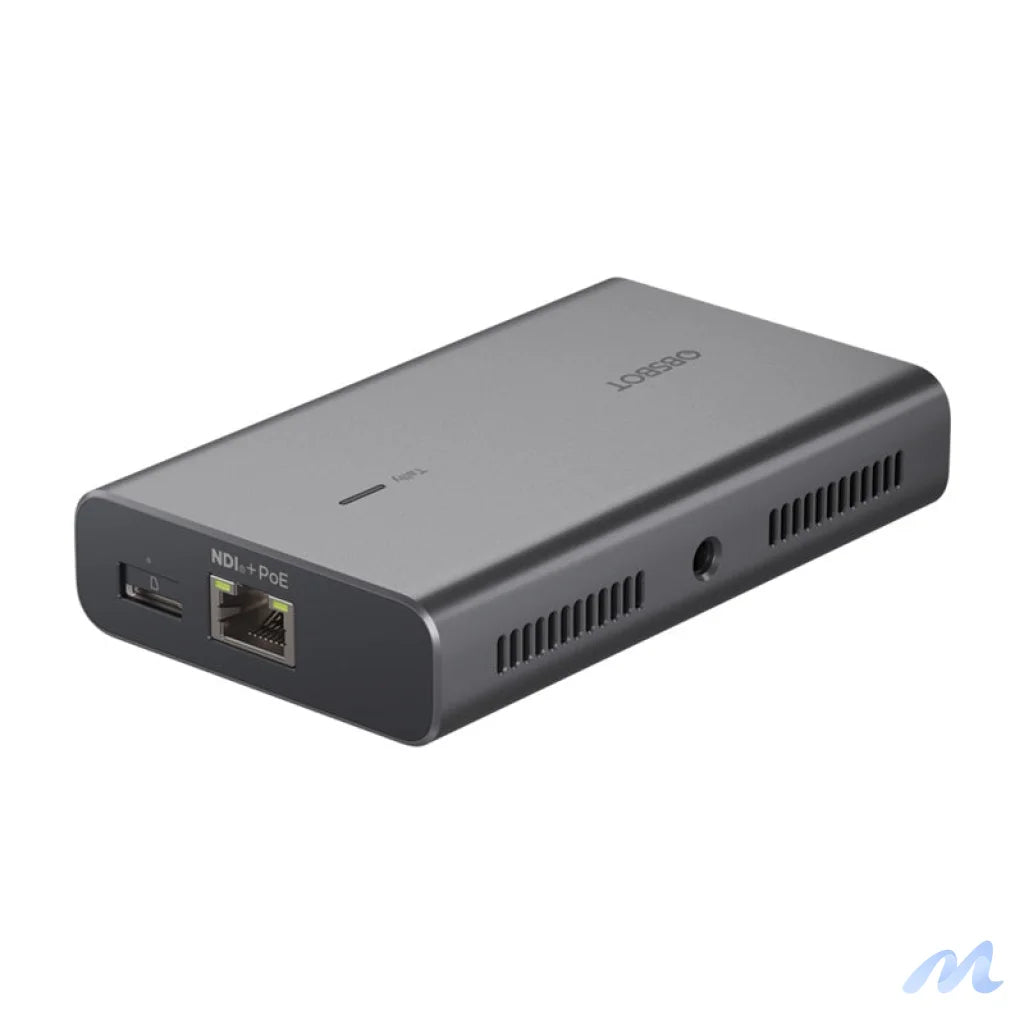

OBSBOT UVC to NDI Adapter
OBSBOT UVC to NDI adapter is an advanced tool that allows you to instantly convert UVC signals to NDI protocol. This allows you to easily integrate your devices into a professional-quality streaming system. This is ideal for those looking for a way to simplify the live broadcasting process while maintaining the highest quality video and audio.
Save space and energy
The OBSBOT UVC to NDI adapter supports power over PoE (Power over Ethernet), which means you don't need to use a separate power supply. This saves space, simplifies equipment setup and avoids cable clutter. All you need is one Ethernet cable to provide both data transmission and power, making this solution extremely convenient and efficient.
Built-in indicator light
The adapter is designed with ease of use in mind. It has a built-in indicator light so you can check the status of the device at any time. This is a simple and very useful solution that allows you to quickly know whether the transmission is working properly, which is crucial in professional live productions.
Recording during transmission
The OBSBOT UVC to NDI adapter also supports video recording to a microSD card while a live broadcast is taking place. This is an extremely functional solution that allows you to simultaneously stream and archive footage, without the need for additional recording equipment. This gives you full control over your transmissions and allows you to easily store them for later.
Included
- UVC to NDI adapter
- USB-C cable
- USB-C to USB-A adapter
| Manufacturer |
OBSBOT |
| Model |
ONB-2209-CW |
| PoE support |
Supported |
| Dimensions |
116 x 70 x 22.5 mm |
| Weight |
202 g |
| Supported decoding formats |
MJPEG/H264 |
| Compatibility |
UVC 1.0/1.1/1.5 protocol |
| Supported encoding formats |
H264/H265 |
| Supported resolution |
3840x2160@[60 59.94 50 30 29.97 25 24 23.98], 2560x1440@[60 59.94 50 30 29.97 25 24 23.98], 1920x1080@[60 59.94 50 30 29.97 25 24 23.98], 1280x720@[60 59.94 50 30 29.97 25 24 23.98] |
| Power |
USB-C 2.0, 9V/2A, 5V/3A, 12/2A or 20V/1A (depending on adapter), support for PD 3.0 |
| Networking |
RJ45 10/100/1000 Mbps Ethernet port (with PoE support) IEEE 802.3 af/at, maximum power 25W |
| Rated power |
5-20VDC, up to 15W |
| Memory card type |
Micro SD, up to 512 GB |
| Operating temperature |
0°C-40°C |
