Description

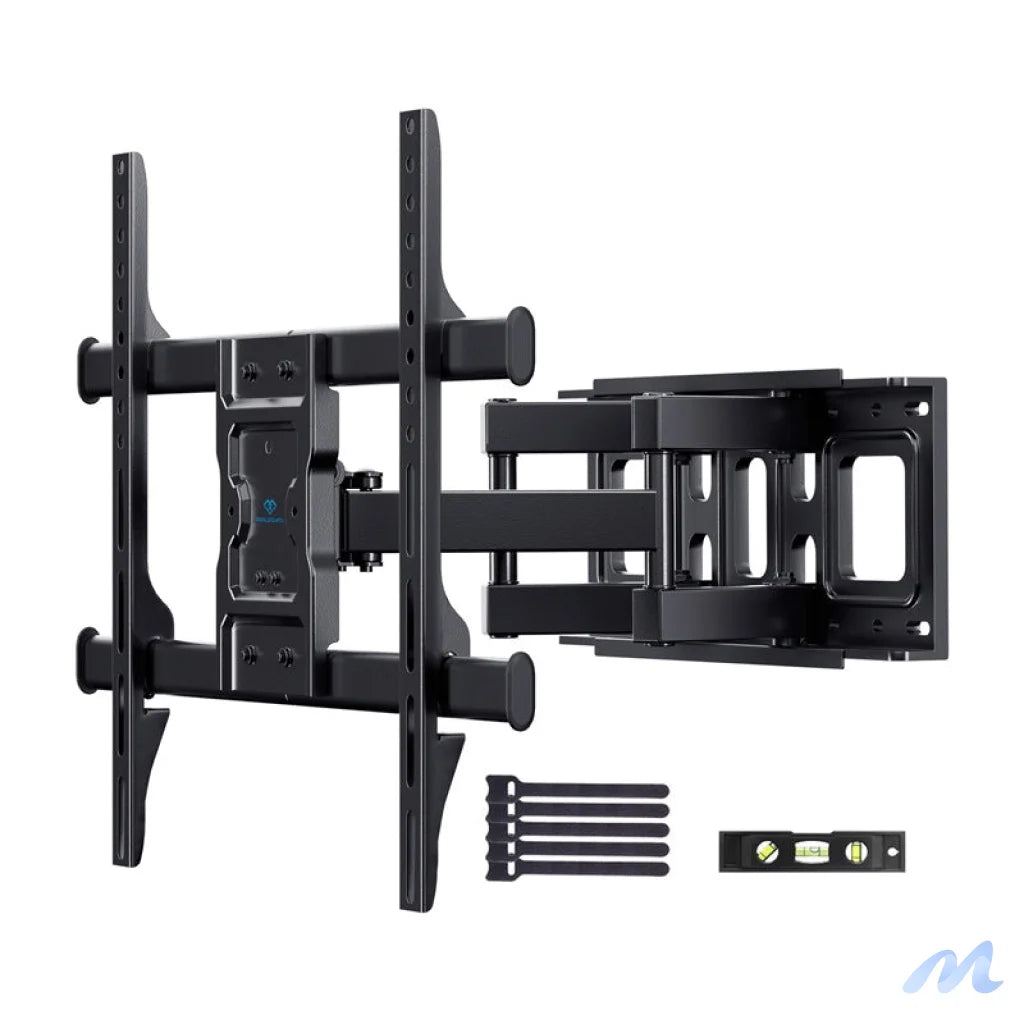

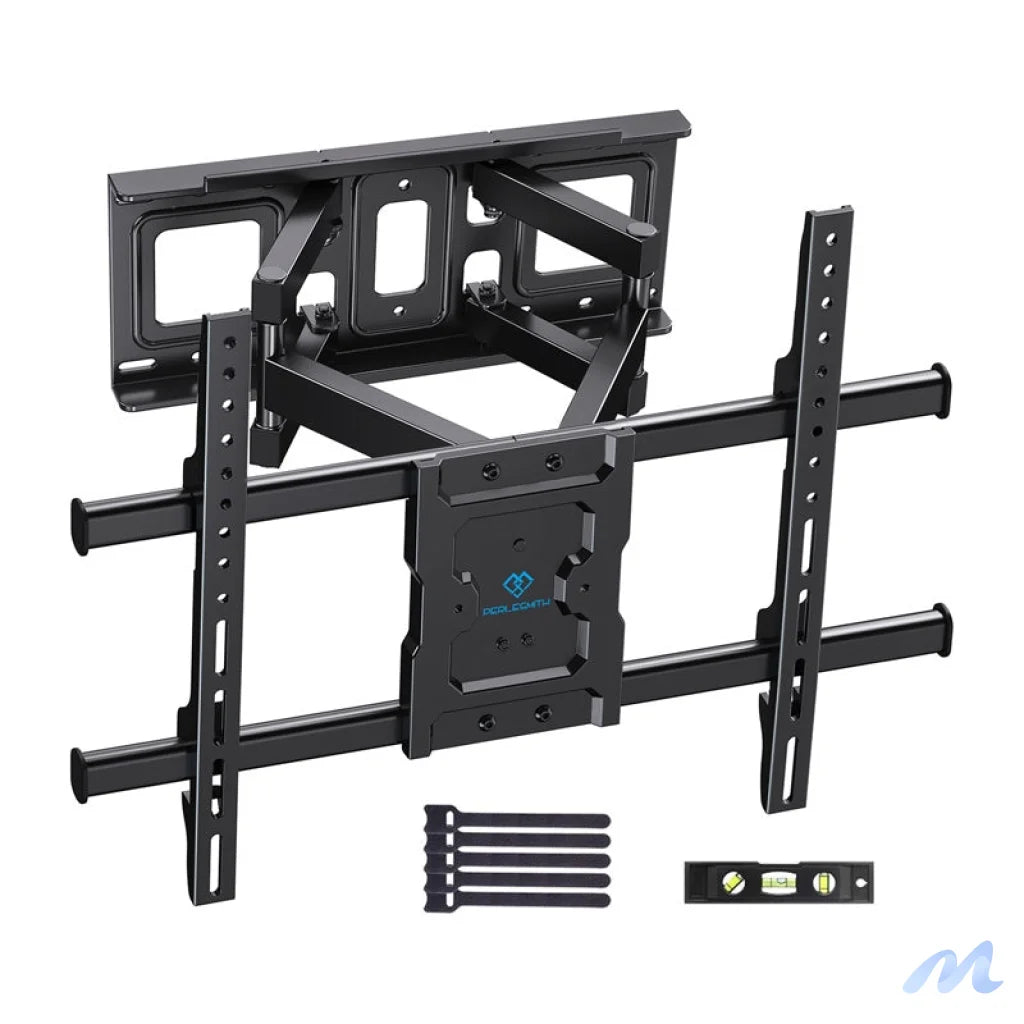

Perlesmith TV Wall Mounts PSPILFK1
The Perlesmith PSPILFK1 mount allows for smooth viewing angle adjustment with screen tilt from +5° to -15° and horizontal rotation of ±60°. Extension up to 376 mm from the wall provides enough flexibility to adjust the distance, and the ±3° leveling function allows you to correct the leveling even after installation.
Robust construction and high load capacity
The mount's double arm made of steel holds TVs weighing up to 60 kg. Thanks to a precision stamping process and the use of strong allen screws, the mount ensures stability and long life. Additional reinforcements at the connection points increase safety during use.
Compatibility with large screens
Perlesmith PSPILFK1 supports TVs from 37 to 85 inches and VESA mounting standards from 200x100 mm to 600x400 mm. It can be mounted on both masonry and concrete walls, as well as those with wooden studs, making it easy to use in different types of rooms.
| Manufacturer |
Perlesmith |
| Model |
PSPILFK1 |
| Purpose |
TV with diagonal from 37 to 85 inches |
| Maximum load |
60 kg |
| Arm movement |
extension up to 376 mm |
| Horizontal rotation |
±60° |
| Tilt |
5° / -15° |
| Level adjustment |
±3° |
| VESA compatibility |
from 200x100 mm to 600x400 mm |
| Material |
steel |
| Construction type |
double arm |
| Mounting surfaces |
brick, concrete or wooden stud wall |
| Fastening system |
Allen screws |
