Description
Product information

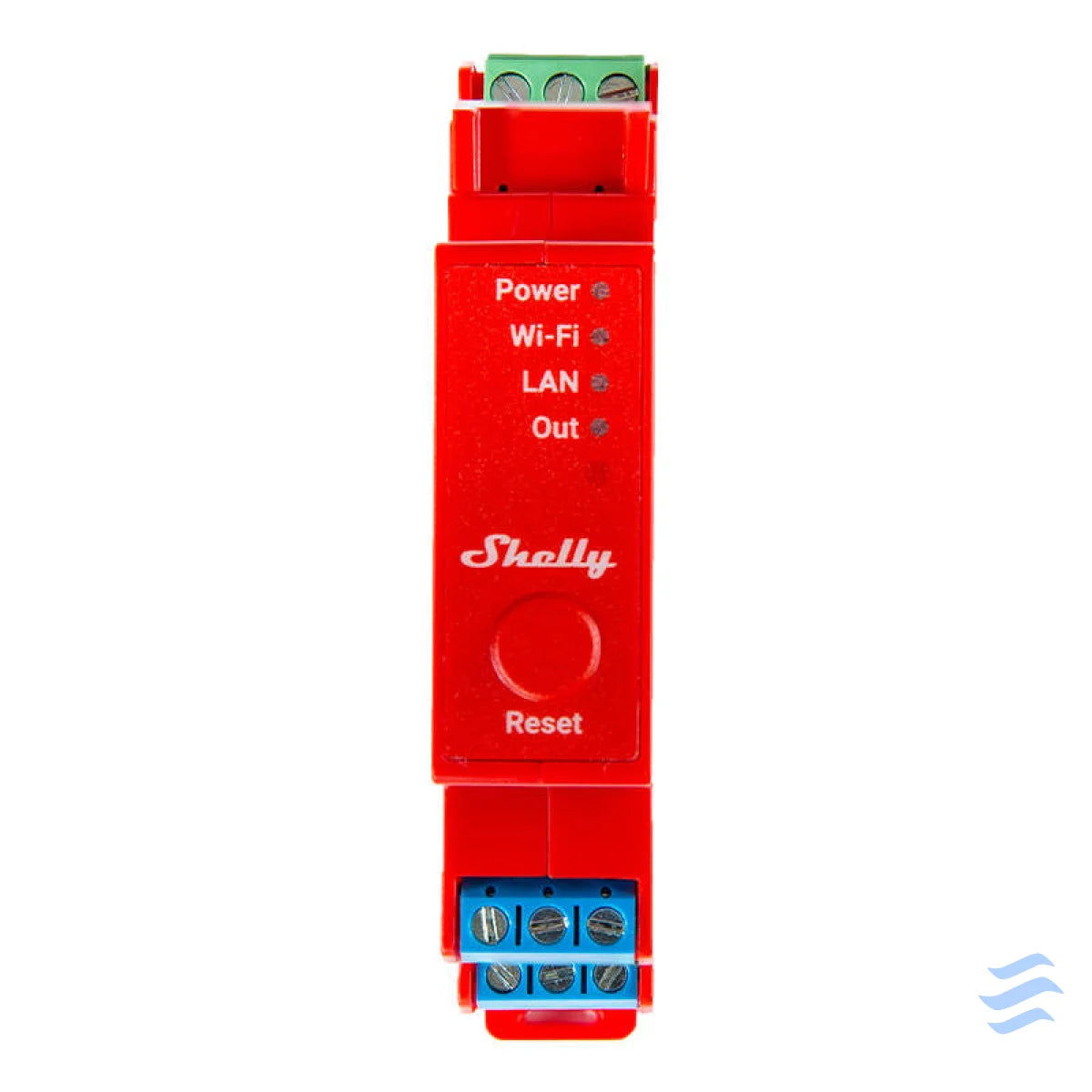

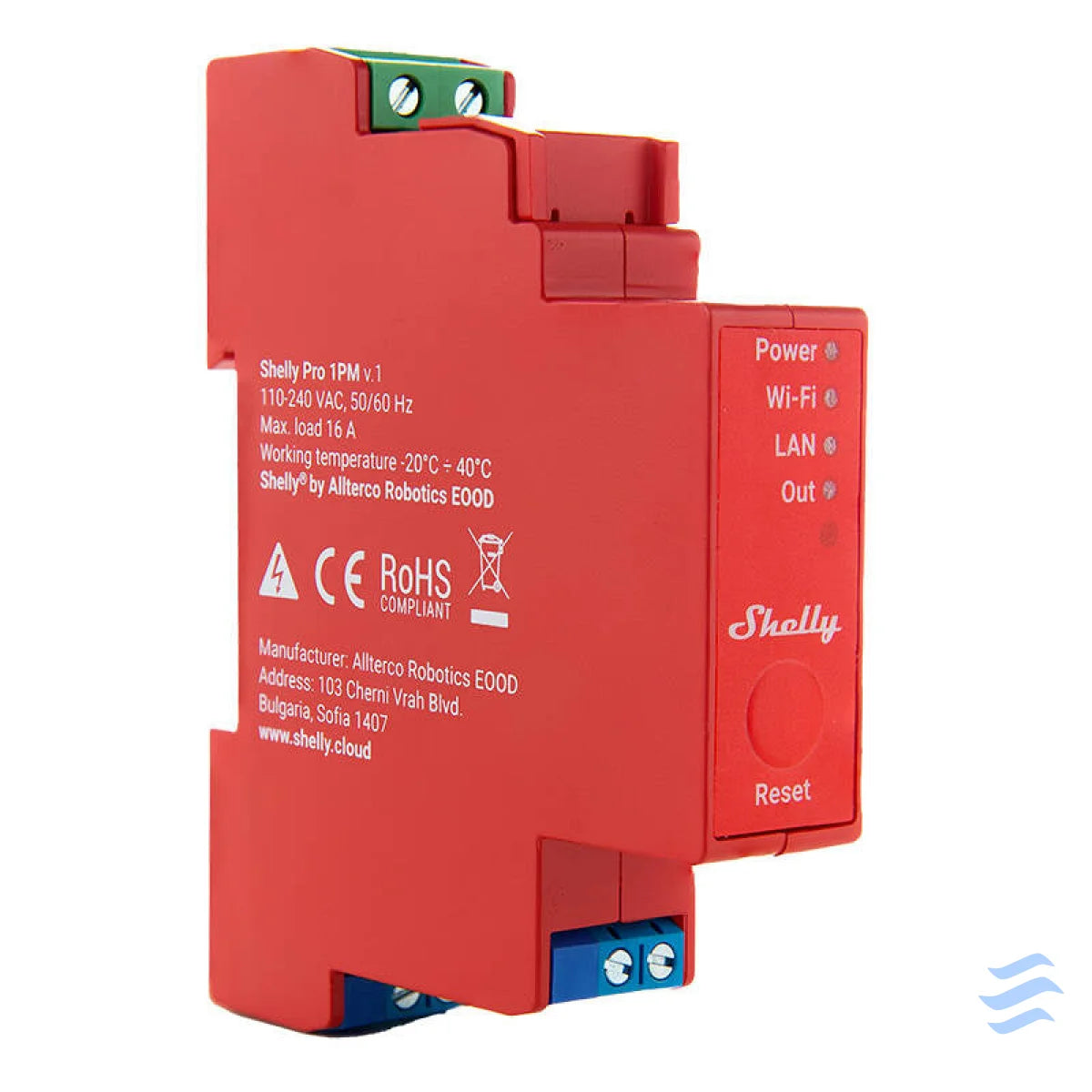

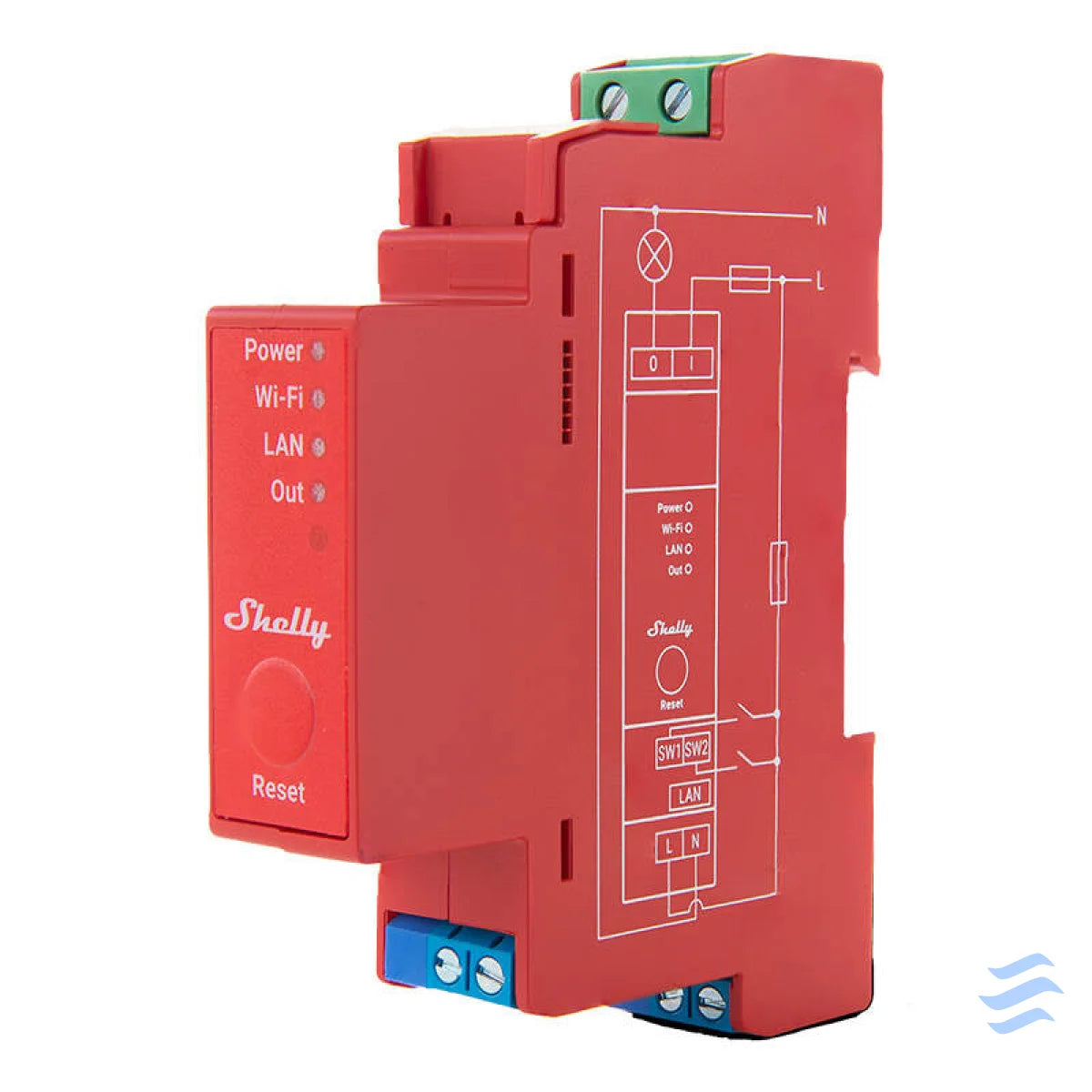

1-Channel DIN Rail Relay with Power Monitoring Shelly Pro 1PM WiFi/LAN
Shelly Pro 1PM is an intelligent DIN rail relay with one channel, capable of controlling devices with a maximum load of 16 A. It comes with a built-in power meter, allowing users to precisely monitor the energy consumption of automated lighting or other equipment. With support for WiFi, LAN, and Bluetooth, it is well-suited for both home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings, and Amazon Alexa, making home control even more convenient. Moreover, scripting features enable the creation of custom automation scenes based on various events, such as weather forecasts.
Many Possibilities
Gain full control over your home with Shelly Pro 1PM. This product is versatile and allows for precise energy consumption monitoring and remote control of various devices. You can use it to control your jacuzzi remotely while tracking energy usage or implement underfloor heating automation to prevent energy wastage. Shelly Pro 1PM is the key to efficient and intelligent home automation.
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-201PE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max AC Switching Current | 16 A |
| AC Voltmeter | Yes |
| AC Ammeter | Yes |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 94 x 19 x 69 mm ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to 40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
Warranty: 24 months
1-Channel DIN Rail Relay with Power Monitoring Shelly Pro 1PM WiFi/LAN
Shelly Pro 1PM is an intelligent DIN rail relay with one channel, capable of controlling devices with a maximum load of 16 A. It comes with a built-in power meter, allowing users to precisely monitor the energy consumption of automated lighting or other equipment. With support for WiFi, LAN, and Bluetooth, it is well-suited for both home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings, and Amazon Alexa, making home control even more convenient. Moreover, scripting features enable the creation of custom automation scenes based on various events, such as weather forecasts.
Many Possibilities
Gain full control over your home with Shelly Pro 1PM. This product is versatile and allows for precise energy consumption monitoring and remote control of various devices. You can use it to control your jacuzzi remotely while tracking energy usage or implement underfloor heating automation to prevent energy wastage. Shelly Pro 1PM is the key to efficient and intelligent home automation.
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-201PE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max AC Switching Current | 16 A |
| AC Voltmeter | Yes |
| AC Ammeter | Yes |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 94 x 19 x 69 mm ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to 40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
Warranty: 24 months
