Shelly Pro 3 DIN Rail 3-channel Relay, WiFi/LAN
- Ships today! The product is in stock at our warehouse located in Finland. Orders are shipped at lightning speed usually the same or next business day. Delivery time depends of the destination country.
- Ships in 4–7 days The product is shipped from supplier warehouse and delivered first to our warehouse located in Finland. You will receive a tracking link by email once we have shipped your order from our warehouse, usually within 4–7 business days after your order.
- Out of stock The product is currently unavailable. Please send a message to our customer service for more information.
Please take a look of our Shipping methods and costs page for more information.
Do you have any question?
We prefer that you send your message with our live chat. Contacting us with the chat allows us to see the product & page where you at the moment so it will be faster for us to check the product you are interested.
We can help you immediately if we are available, if we are busy packing orders we will get back to you and contact you by email & live chat.
If you are in a hurry you can leave your message with the contact form.
Would you like to place a larger wholesale order? Or would like to request for quotation for custom order?
Request for quatation:
- Add all the items and quantities into the cart
- Go to the "Cart page" by clicking this link or click the "Contact us" button in the slider cart.
- In the "Cart page" you can click the "Contact us" button and you can send a message and quote request for your cart items.
Description
Product information

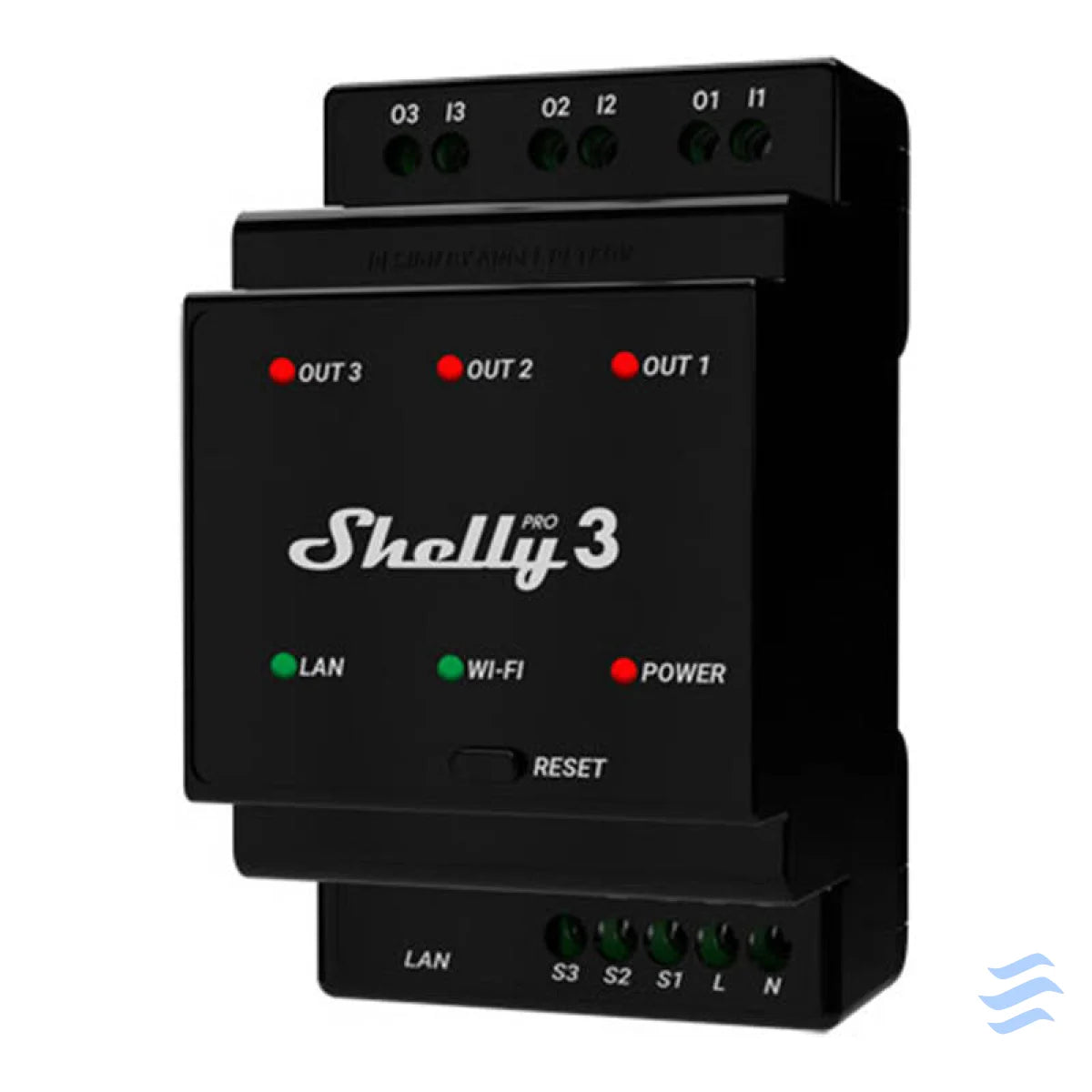

3-Channel DIN Rail Relay Shelly Pro 3 WiFi
Shelly Pro 3 is an advanced DIN rail relay with three independent channels. Each channel supports a load of up to 16 A, with a total capacity of up to 48 A. With support for WiFi, LAN, and Bluetooth, it is well-suited for both home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings, and Amazon Alexa, making home control even more convenient. Equipped with potential-free contacts, it provides great flexibility in handling various voltages and offers a wide range of possibilities in home automation. Furthermore, scripting features allow the creation of custom automation scenes based on various events, such as weather forecasts.
Many Possibilities
Gain full control over your home with Shelly Pro 3. It excels in various applications, allowing you to remotely control lighting in your home, safely lock and unlock doors, adjust the bathroom fan's operation based on detected motion, automate your pool pump, or control garden irrigation. With Shelly Pro 3, your home will become even smarter!
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-003XE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max DC Switching Voltage | 30 V |
| Max AC Switching Current | 16 A per channel, 48 A total |
| Max DC Switching Current | 16 A per channel, 48 A total |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 96 x 53 x 59 ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to +40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
Warranty: 24 months
