Description

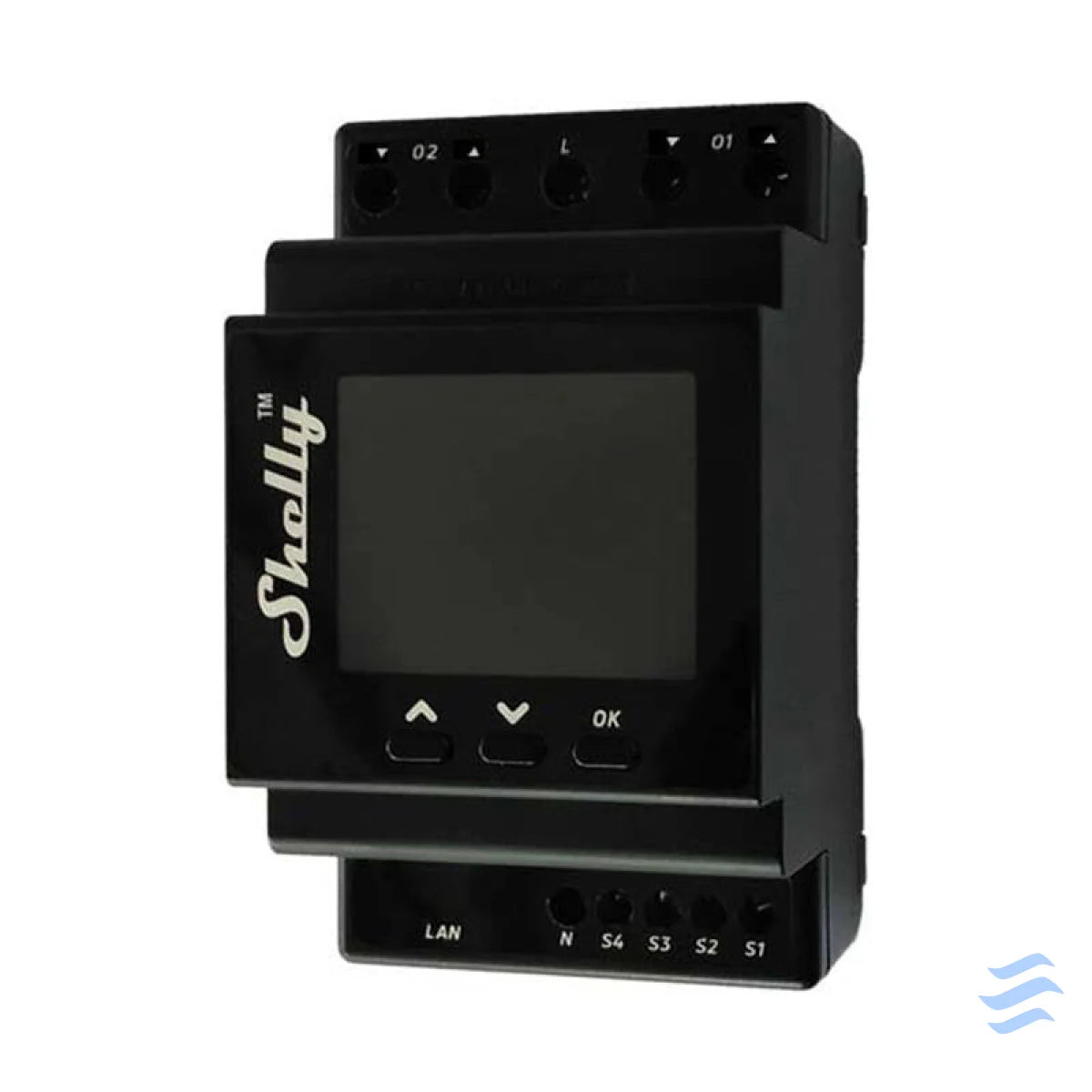

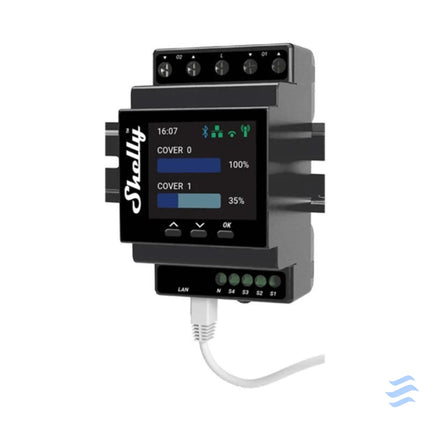

Double DIN Rail Controller Shelly Pro Dual Cover PM WIFI with Power Measurement
Shelly Pro Dual Cover/Shutter PM is an intelligent controller with a double enclosure designed for DIN rail mounting, bringing a new level of control to your blinds, curtains, awnings, gates, and many other devices. It supports a 16A load per channel.
Maintain Full Control Over Energy
Built-in precise power meters allow for accurate control and monitoring of energy consumption for each cover independently. This enables you to track how much energy each shade consumes and make informed decisions for efficient energy management.
Create Custom Solutions
Shelly Pro Dual Cover/Shutter PM also gives you the ability to create advanced custom automations based on various events, weather forecasts, and other factors. You can use scripts to tailor the device's operation to your individual needs and lifestyle.
| Manufacturer |
Shelly |
| Name |
Shelly Pro Dual Cover/Shutter PM |
| Model |
SPSH-002PE16EU |
| Power Supply Voltage |
AC: 110 - 240 V |
| Power Consumption |
< 3 W |
| Maximum AC Switching Voltage |
240 V |
| Maximum AC Switching Current |
16 A per output |
| Dimensions |
96 x 53 x 59 ±0.02 mm |
| Weight |
150 g |
| Mounting |
DIN rail |
| Voltmeter (AC) |
Yes |
| Amperemeter (AC) |
Yes |
| Internal Temperature Sensor |
Yes |
| Wi-Fi Protocol |
802.11 b/g/n |
| Wi-Fi Range |
Up to 30 m indoors and 50 m outdoors |
| Bluetooth Protocol |
4.2 |
| Bluetooth Range |
Up to 10 m indoors and 30 m outdoors |
| CPU |
ESP32-D0WDQ6 |
| Flash Memory |
8 MB |
| Ambient Temperature |
-20°C to 40°C |
| Humidity |
30% to 70% RH |
| Maximum Altitude |
2000 m |
