Description

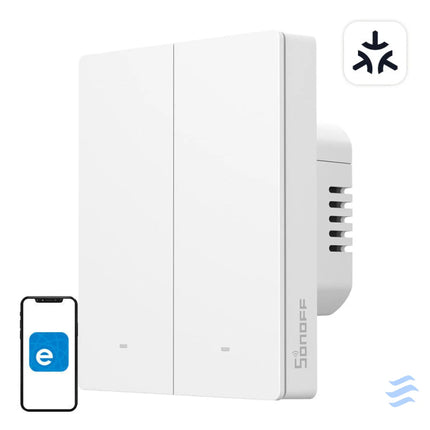

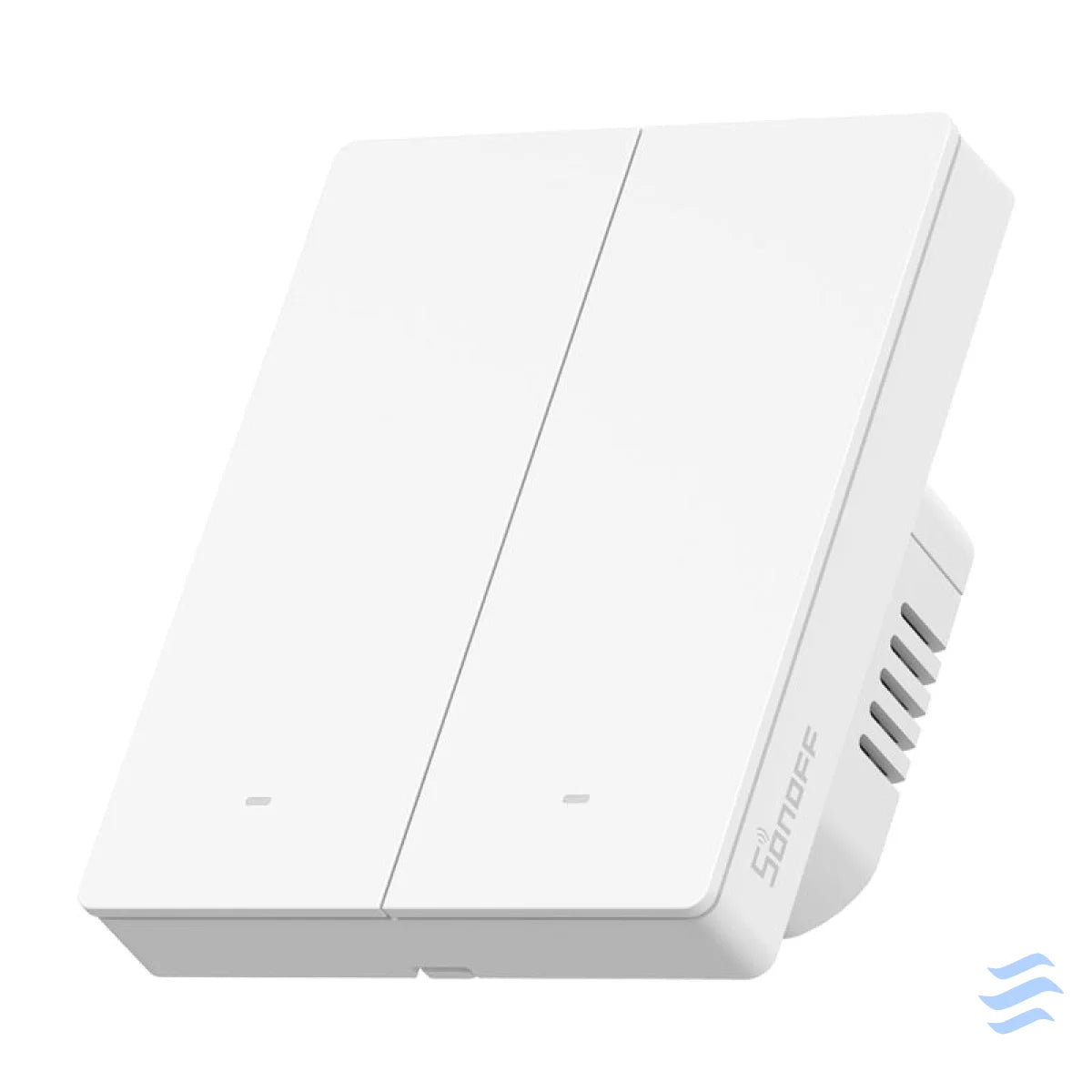

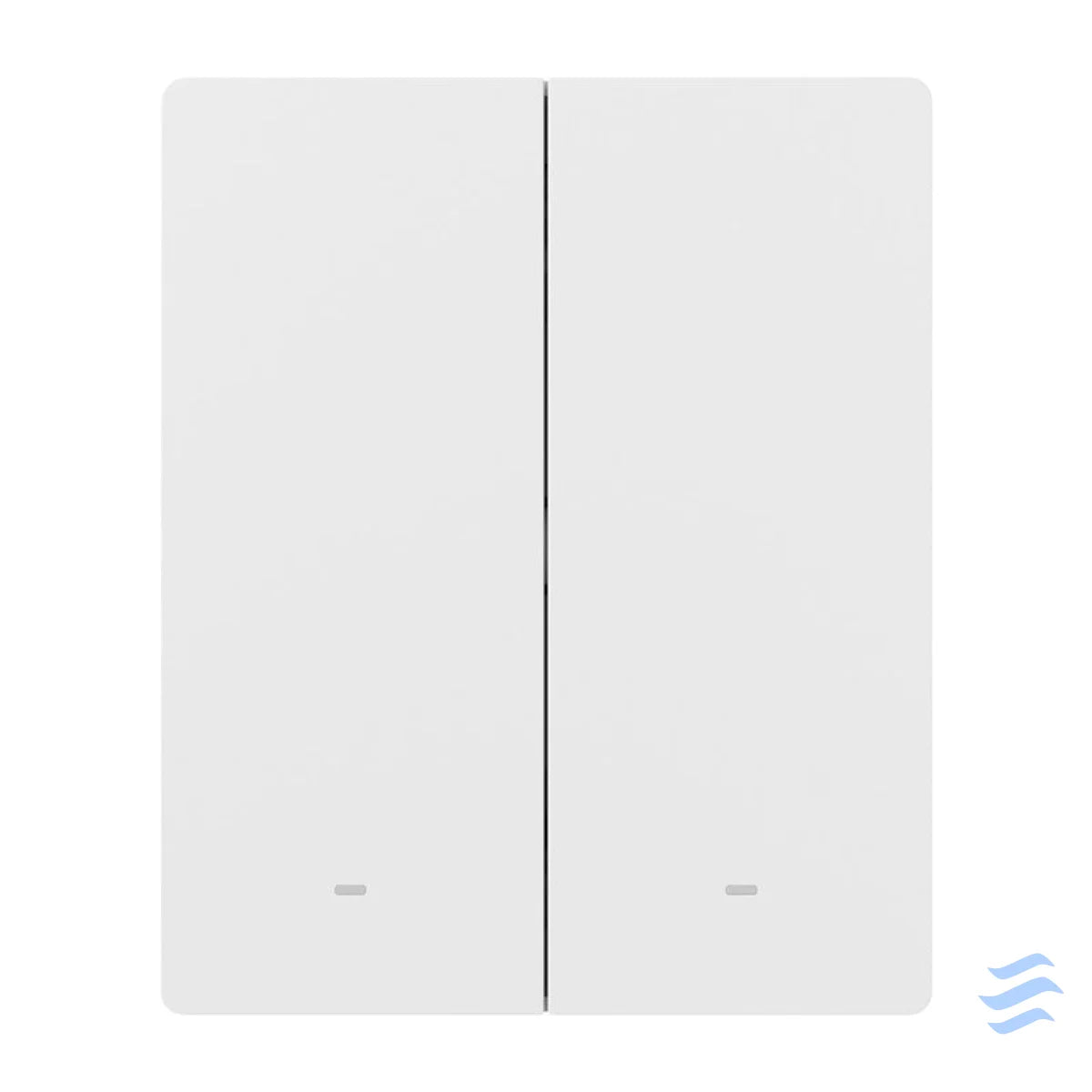

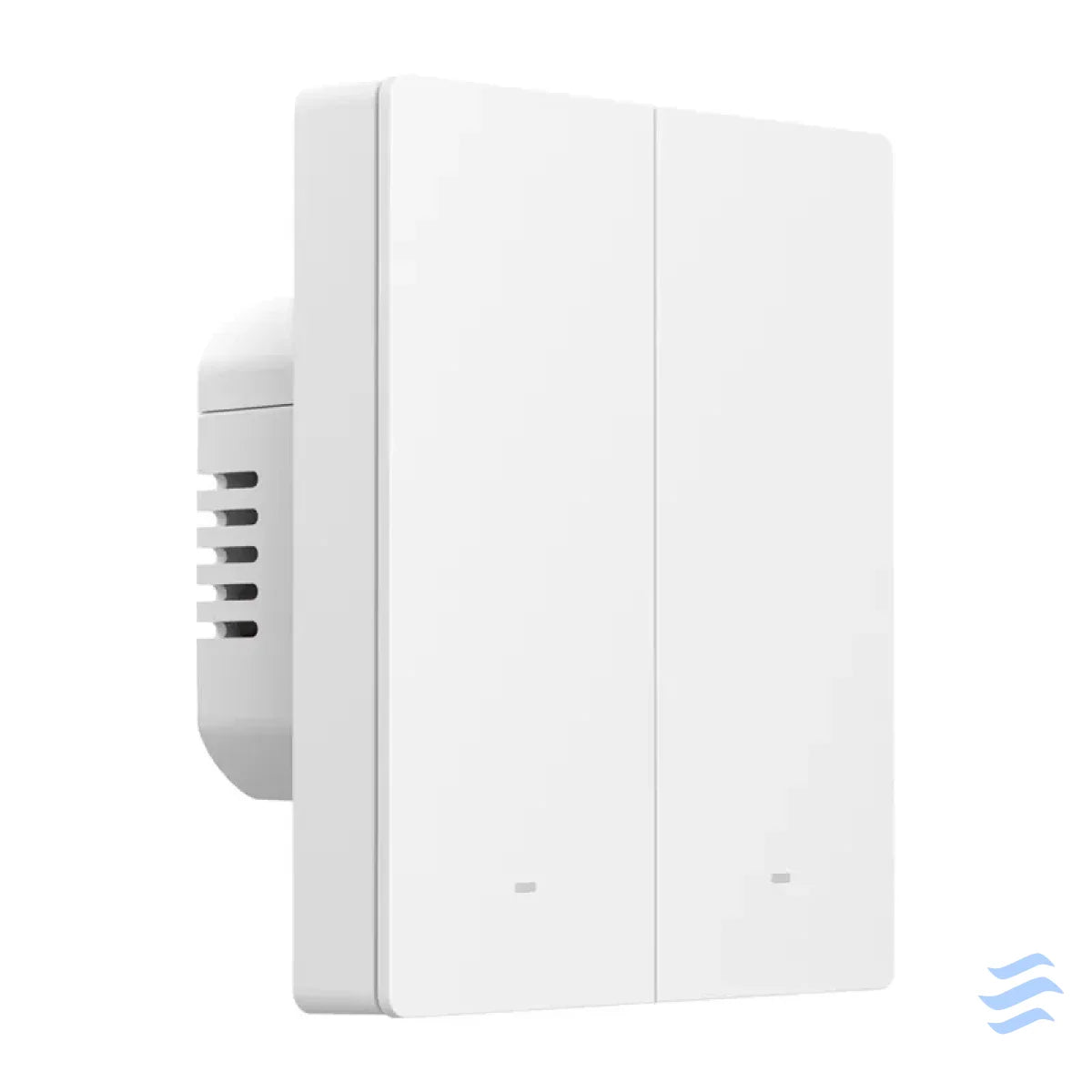

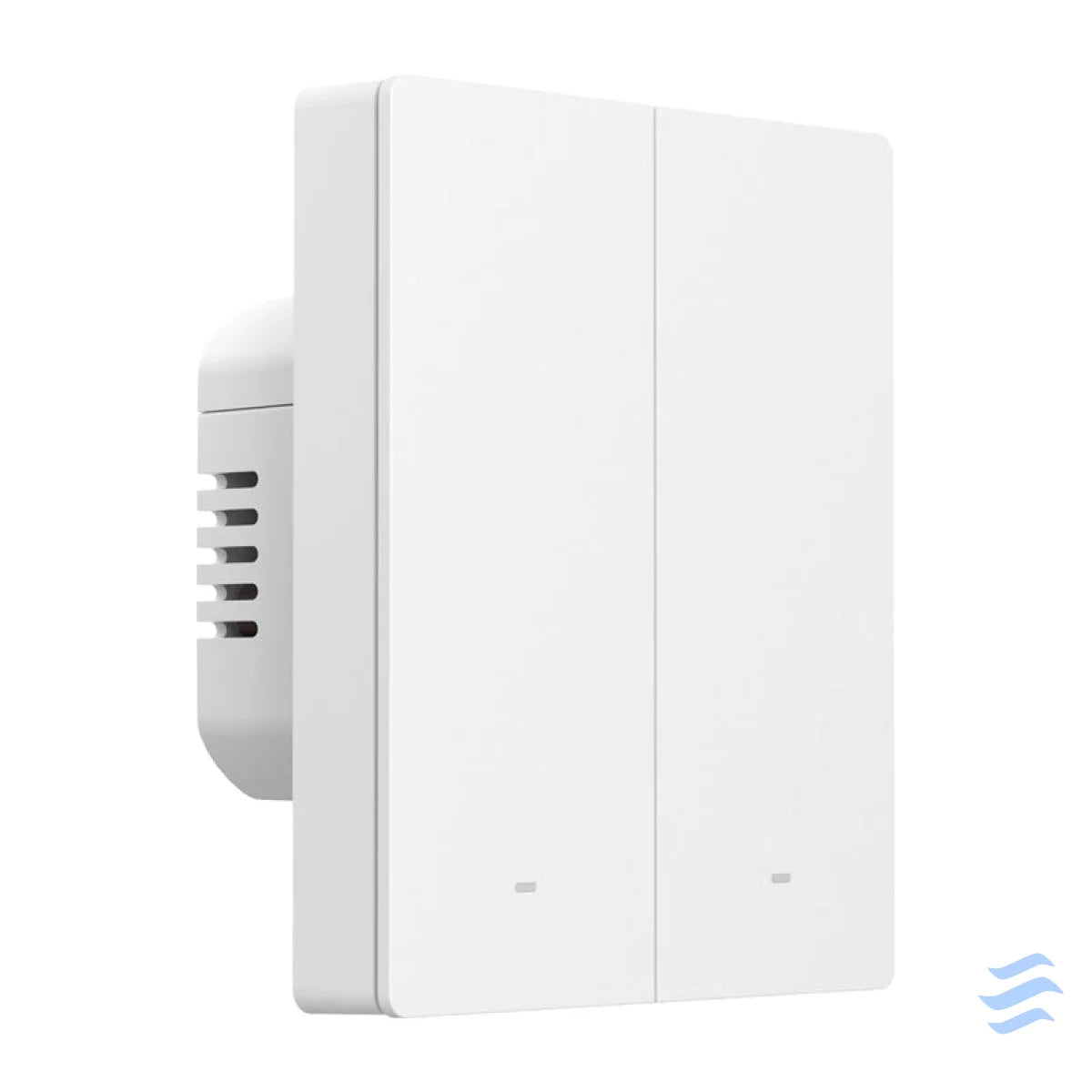

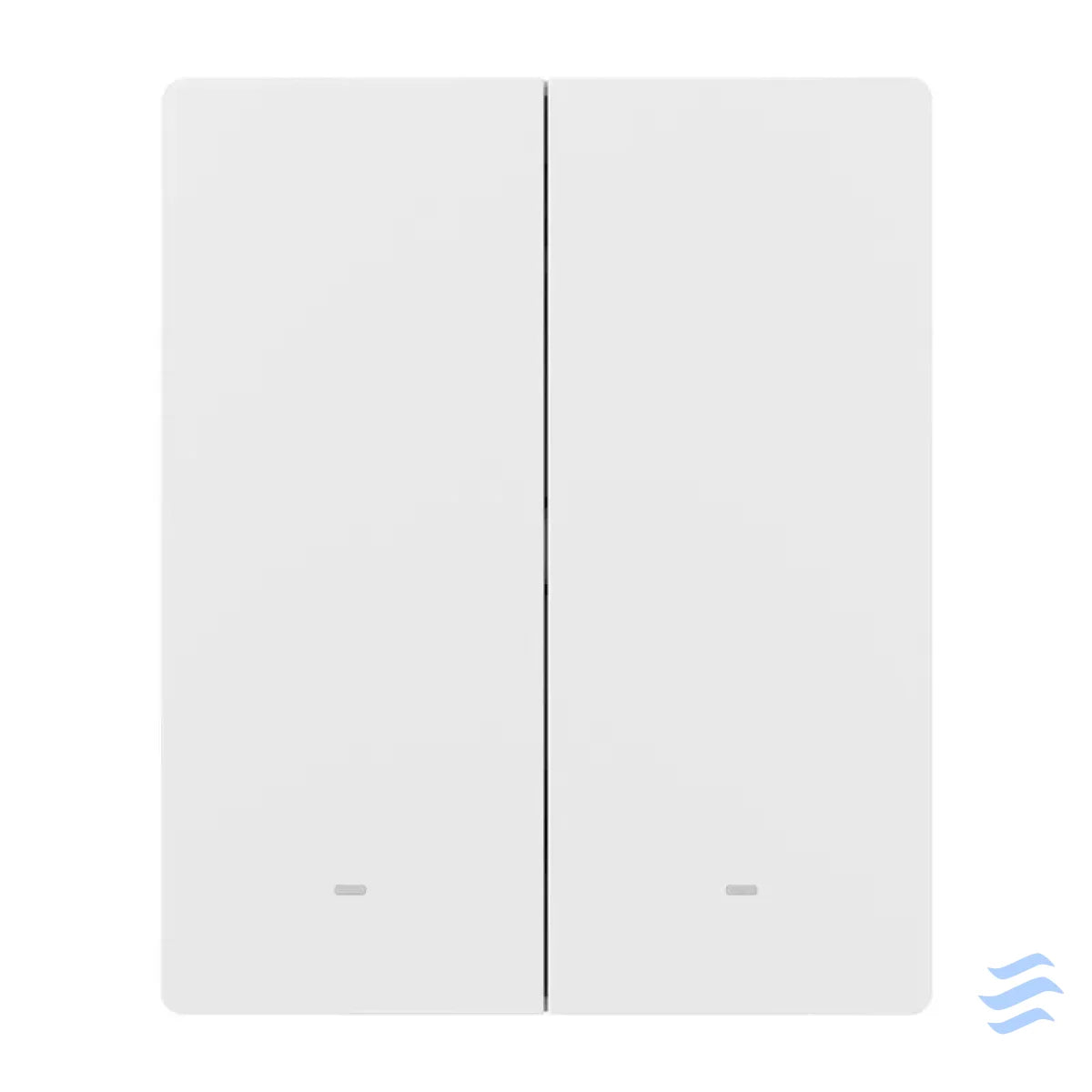

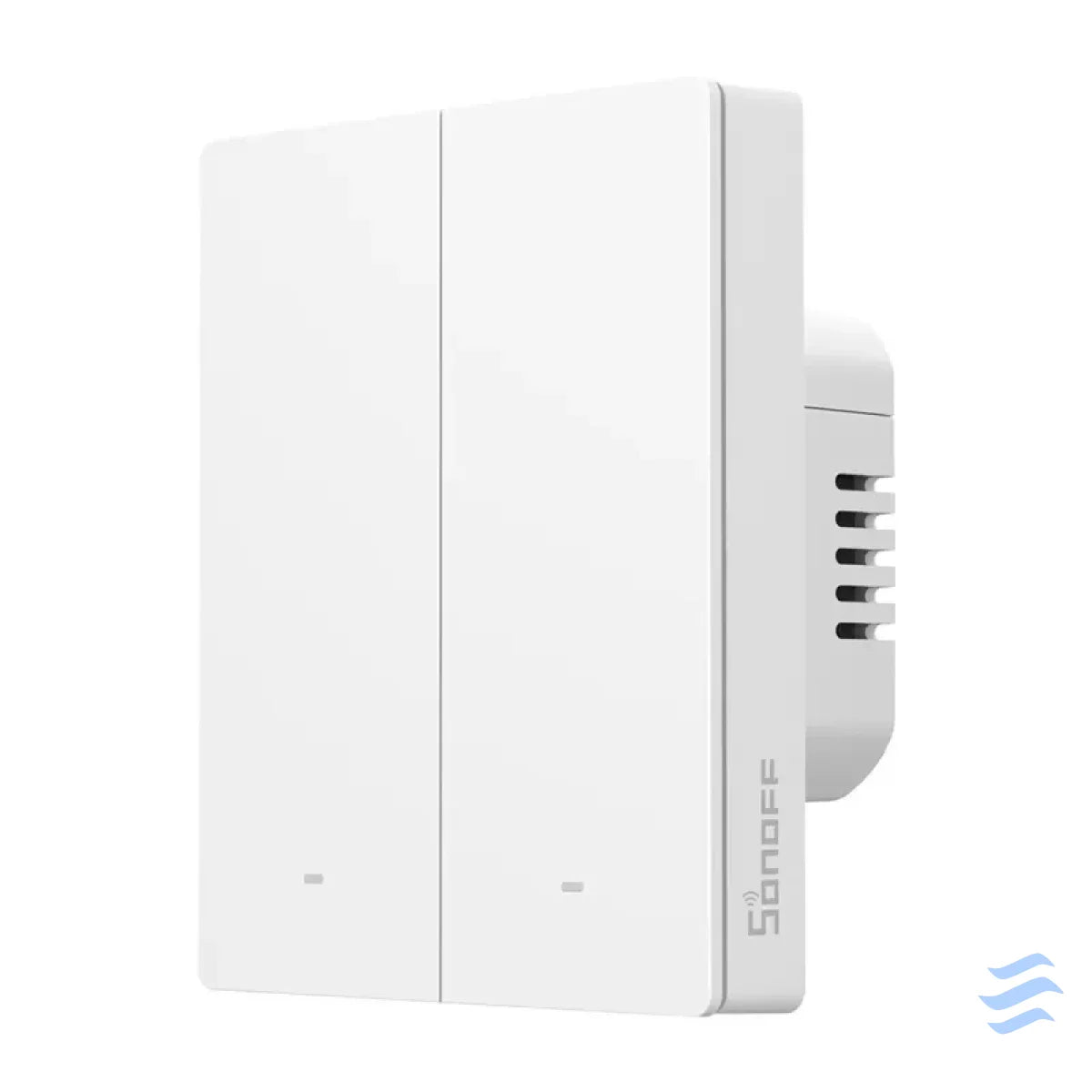

M5-2C-80W Matter smart wall switch (2-channel, for frame).
The Sonoff M5 Matter wall switch allows you to conveniently manage lighting and electrical devices in your home. With physical buttons, you can easily turn lights on and off, and with the help of the eWeLink app, manage your devices from anywhere in the world. You don't have to worry about forgetting to turn off the lights - now you have everything under control. The product fits into a frame that you can buy separately.
Seamless integration and voice control
The Matter-certified M5 integrates perfectly with ecosystems such as Alexa, Google Home, Apple Home, and works with other devices from different brands. The switch supports voice control, so you can turn on the lights even when your hands are busy - just a simple command!
Stability and speed of operation
The device provides fast response and stable operation. Even in poor network conditions, the switch operates smoothly within the local home network. You can easily manage devices through the Apple Home app and create automation with other devices from different manufacturers.
Security and high quality
The M5 Matter switch is made of high-quality PC V0 material, which provides resistance to high temperatures. The separation of high and low voltage allows the switch to be removed safely. The device is CE certified, which guarantees its safe use.
Additional capabilities
The M5 Matter works with the separately available NSPanel, allowing control of lighting and home appliances via a touch screen. Both devices are available in the same color, allowing you to decorate your home's interior with consistency. What's more, with the R5 Scene Controller you can control the same light from two different locations, eliminating the need for complicated wiring.
| Manufacturer |
Sonoff |
| Model |
M5-2C-80W |
| MCU |
ESP32 |
| Nominal value |
2C: 100-240V ~ 50/60Hz 5A/Gang 10A Total Max. |
| Max Load |
2C: 2200W (1-1100W/Gang) |
| LED load |
2C: 300W/220V/Gang, 150W/110V/Gang |
| Wireless connectivity |
IEEE 802.11 b/g/n 2.4GHz |
| Net weight |
2C-80W(139g) |
| Dimensions |
86x71x41.5mm |
| Color |
White |
| Housing material |
PC V0+CRS |
| Place of application |
Internal |
| Operating temperature |
-10°C~40°C |
| Working humidity |
5%~95% RH, non-condensing |
| Compliance with certificates |
CE/RoHS |
| Performance standard |
EN 60669-2-1 |
