Description

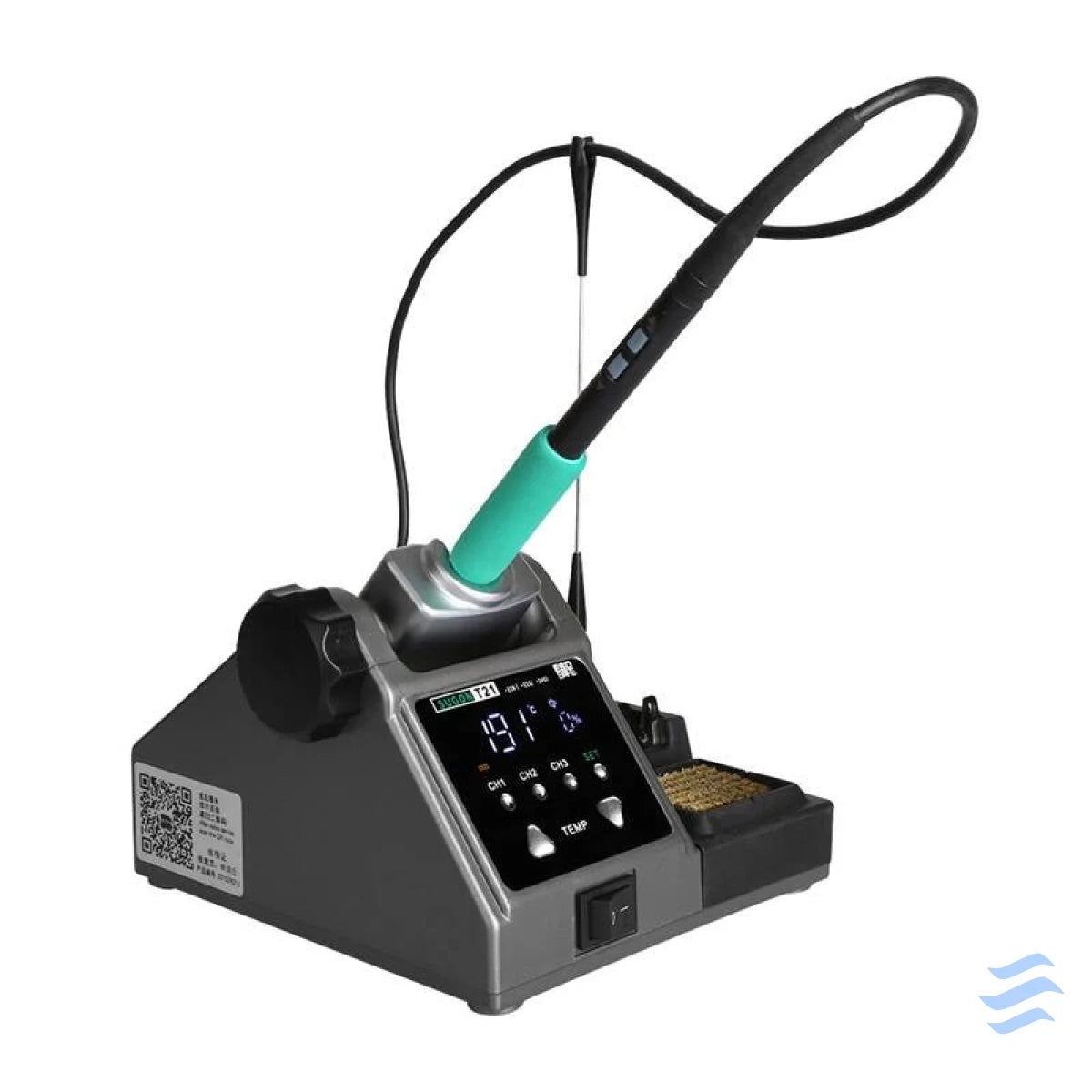

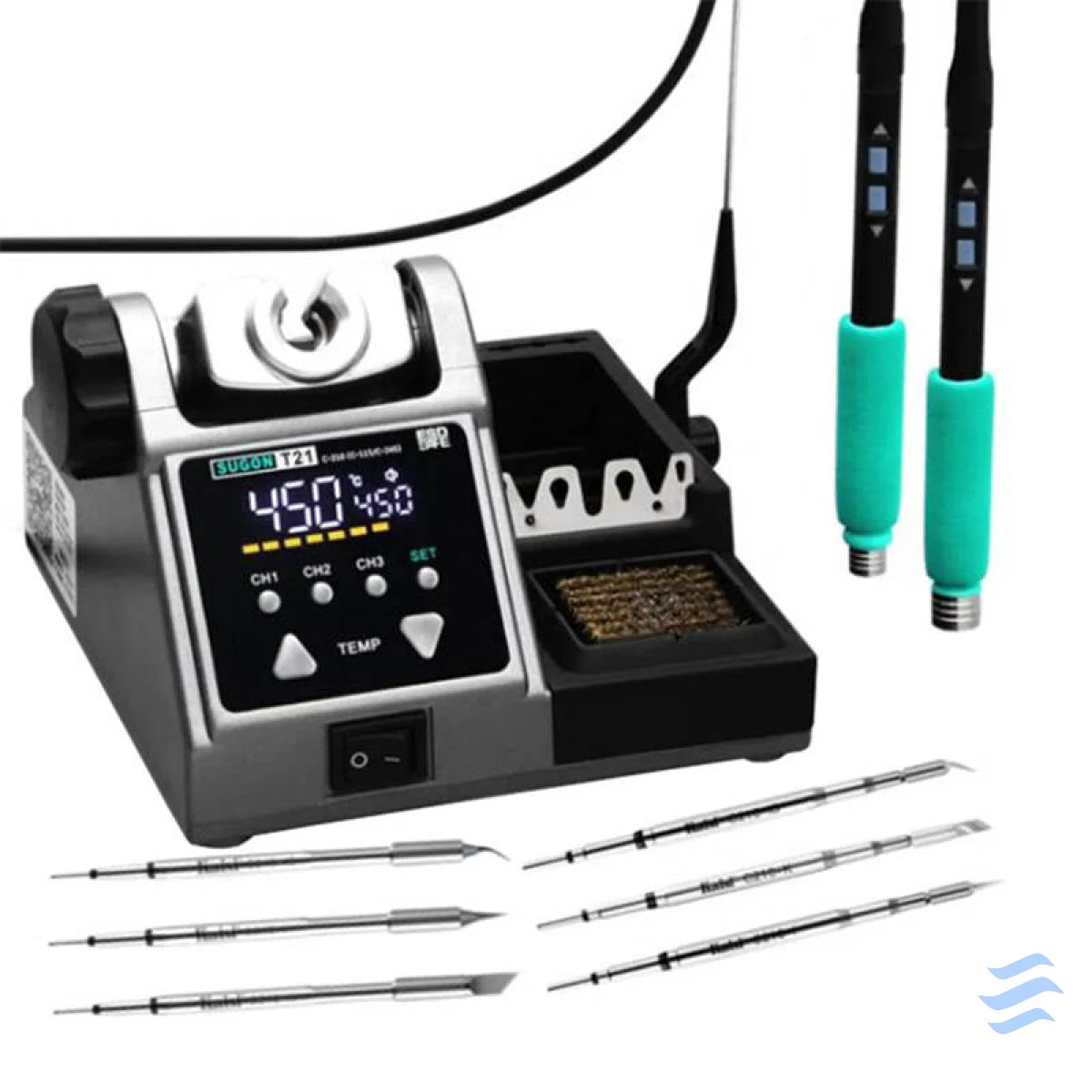

SUGON T21 soldering station + C210 / C245 soldering tips
SUGON T21 is a modern soldering station designed for electronics professionals. It is distinguished by the innovative T210/T245 wired holder, which allows intuitive temperature adjustment without interrupting work. The device supports T115, T210 and T245 chucks, providing versatility in application. The ergonomic design with 45° handle adjustment enhances user comfort. The station offers intelligent temperature management, quick switching between saved settings and energy-saving functions. With advanced technology and high precision, the SUGON T21 is the ideal solution for demanding users.
Precise control
The SUGON T21 is an integrated soldering station that allows direct temperature control with the T210/T245 wire holder. Such a solution is convenient during work, as it allows you to quickly adjust parameters without having to reach the main panel. This simplifies operation and increases the smoothness of work when soldering precision components.
Versatility and convenience of use
The station is compatible with three types of soldering holders: T115, T210 and T245, which provides a wide range of applications. The support of different holders makes it possible to work with both small electronic components and larger soldering products requiring more tin. In addition, the T245 holder can work with the 470 series heating element, making it an ideal choice for larger soldering points.
Flexibility and ergonomic design
The SUGON T21 is distinguished by its ergonomic design, which allows the holder to be adjusted 45° in the front and back. Such a solution makes it possible to adjust the position to the individual needs of the user, increasing the comfort and convenience of work. In addition, the ability to quickly replace the heating core without tools makes the station extremely practical for everyday use.
Intelligent temperature management
To ensure maximum working efficiency, the SUGON T21 offers a standby temperature setting function at 0°C, 150°C, 180°C or 200°C. This means that the T245 holder is ready for use as soon as you pick it up, without having to wait for it to heat up. In addition, the station allows the user to store three temperature values in memory - with a simple press of a button, you can quickly switch between the set values.
Advanced control functions
The SUGON T21 soldering station is equipped with a set of control functions that allow you to precisely control the soldering process. Options such as immediate shutdown when the handle is put down, selection of temperature units (°C/°F), temperature compensation, key lock and on/off beeps add to the convenience. In addition, the automatic heating shut-off function reduces energy consumption and extends the life of the device.
Included
- T21 soldering station
- C210 holder
- heating core 210 x3
- hub
- power cable
- user manual
| Manufacturer |
SUGON |
| Model |
T21 |
| Operating temperature range |
100~450°C |
| Power |
120 W |
| Supported soldering holders |
T115, T210, T245 |
| Temperature control |
Directly on the T210/T245 holder |
| Handle adjustment range |
Handle angle adjustment of 45° (forward/backward) |
| Standby mode |
Standby temperature setting possible (0°C, 150°C, 180°C, 200°C) |
| Temperature memory |
Three groups of preset temperatures - quick read (1 second), write (3 seconds) |
| Software functions |
Automatic switching to standby mode, switching of temperature units (°C/°F), temperature compensation function, key lock, option to enable/disable audible signal, option to disable warm-up |
