Description

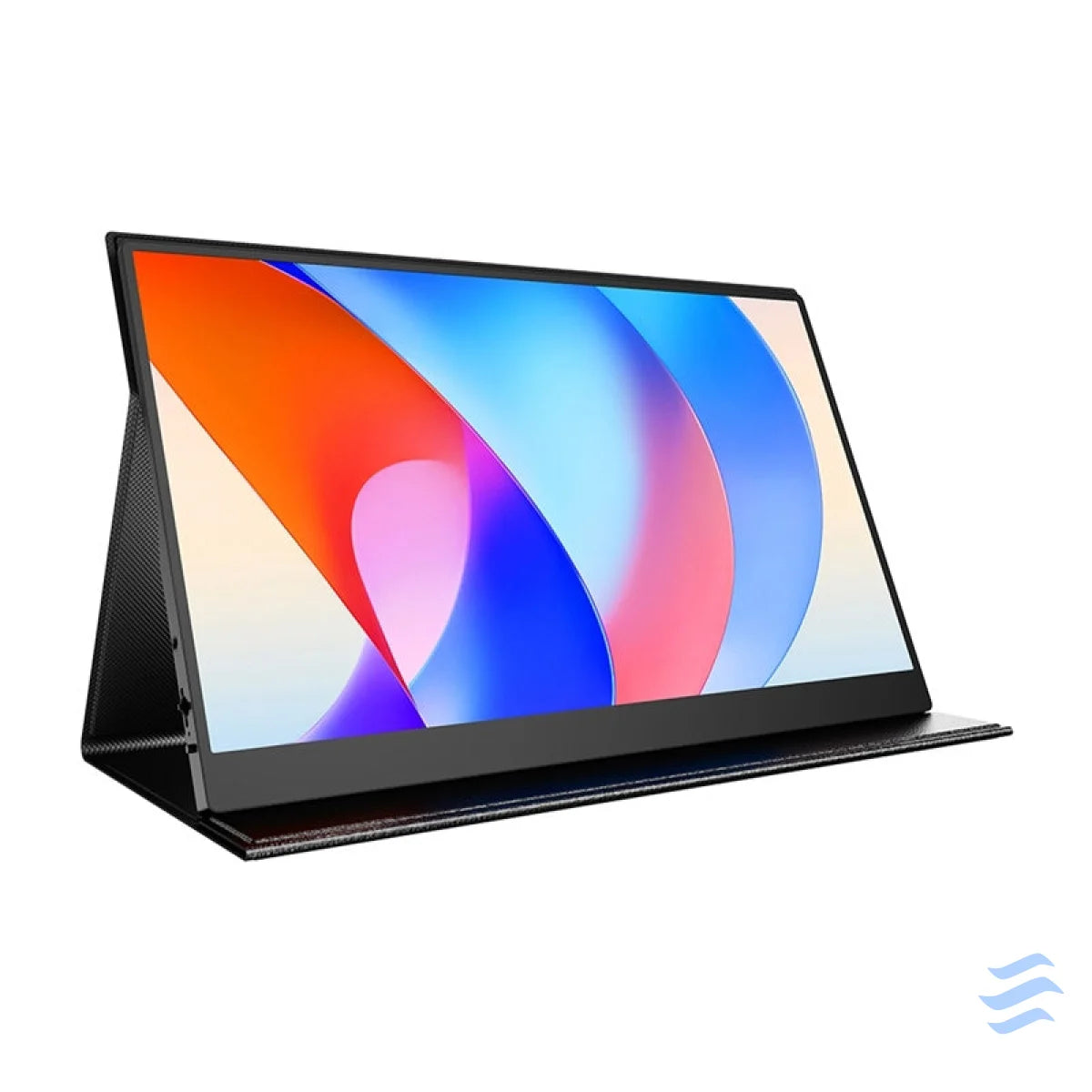

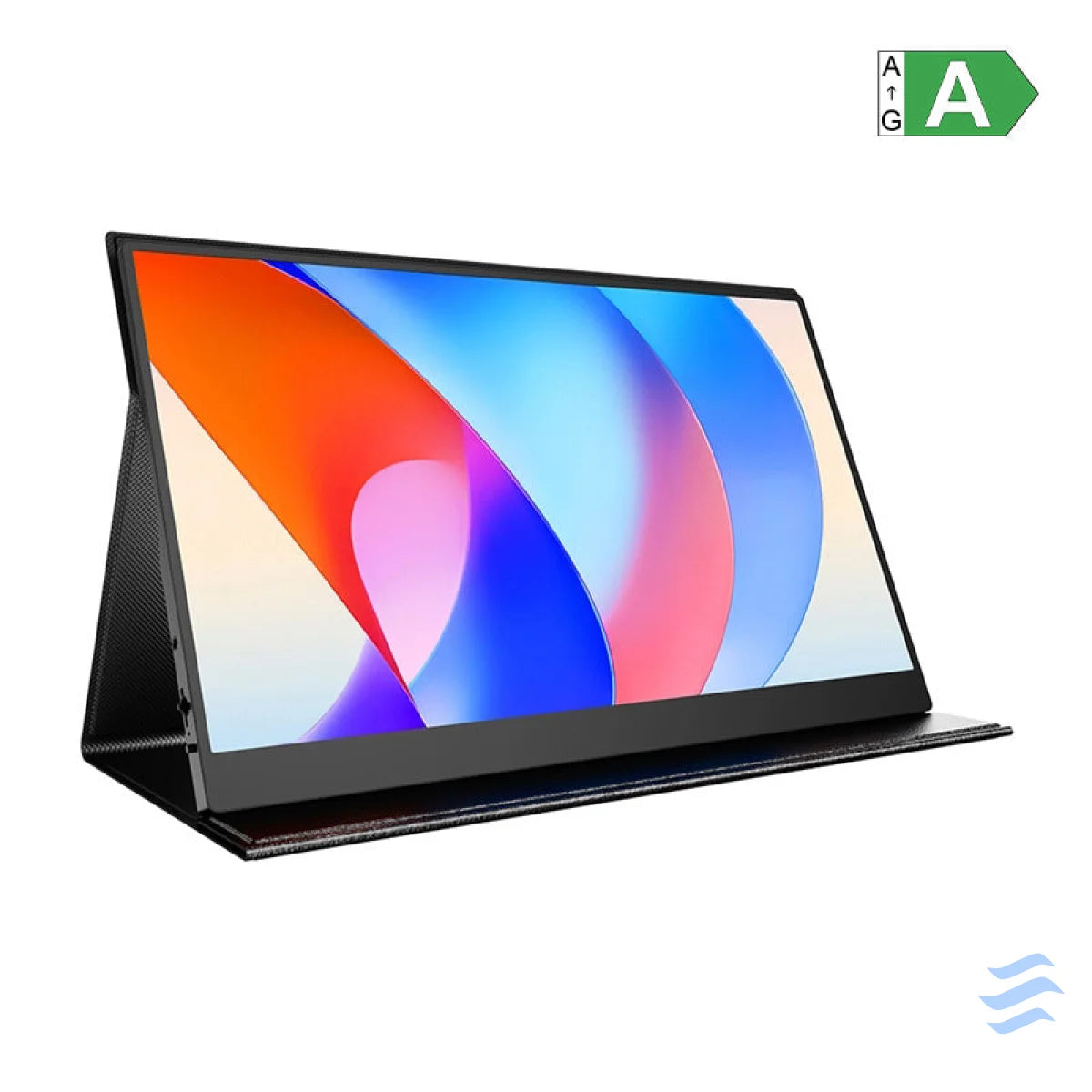

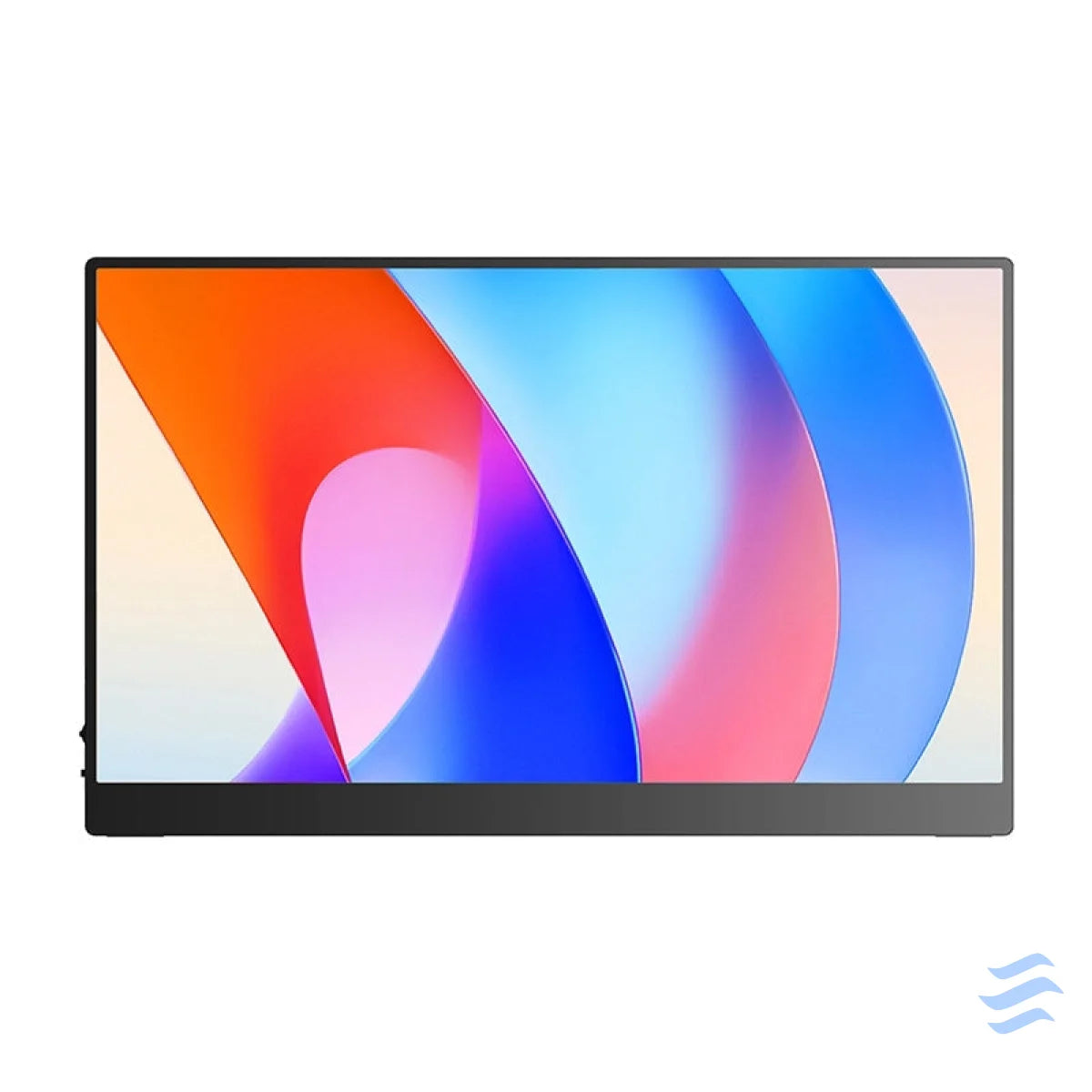

Uperfect USetup E7 15.6" 1920x1080 60Hz portable touchscreen monitor
The Uperfect USetup E7 is a 15.6-inch touchscreen portable monitor with Full HD (Full High Definition, high resolution - 1920 × 1080 pixels) resolution, designed for basic office, multimedia and mobile applications. Featuring an IPS panel (In-Plane Switching, a liquid crystal technology that provides wide viewing angles and better colors) and connectors that allow easy connection of various devices, the monitor offers functionality in a compact ABS (Acrylonitrile Butadiene Styrene, a durable plastic) housing.
Full HD touch display
With a resolution of 1920×1080 and a 15.6" diagonal, the screen provides a clear 16:9 aspect ratio, with 10-point touch technology for gesture control and precise mouse-free operation. A refresh rate of 60 Hz (hertz, the number of image refreshes per second) and a response time of 20 ms (milliseconds) are enough for everyday tasks and working with documents.
IPS matrix and matte surface
The IPS panel provides a full 178° viewing angle for comfortable use of the monitor. The matte finish of the screen reduces glare, which improves readability in well-lit environments. The brightness of 250 cd/m² (candelas per square meter, a unit of brightness) and the reproduction of 66% of the sRGB color space (the standard RGB color space - Red, Green, Blue, or red, green and blue) are sufficient for basic office and entertainment applications.

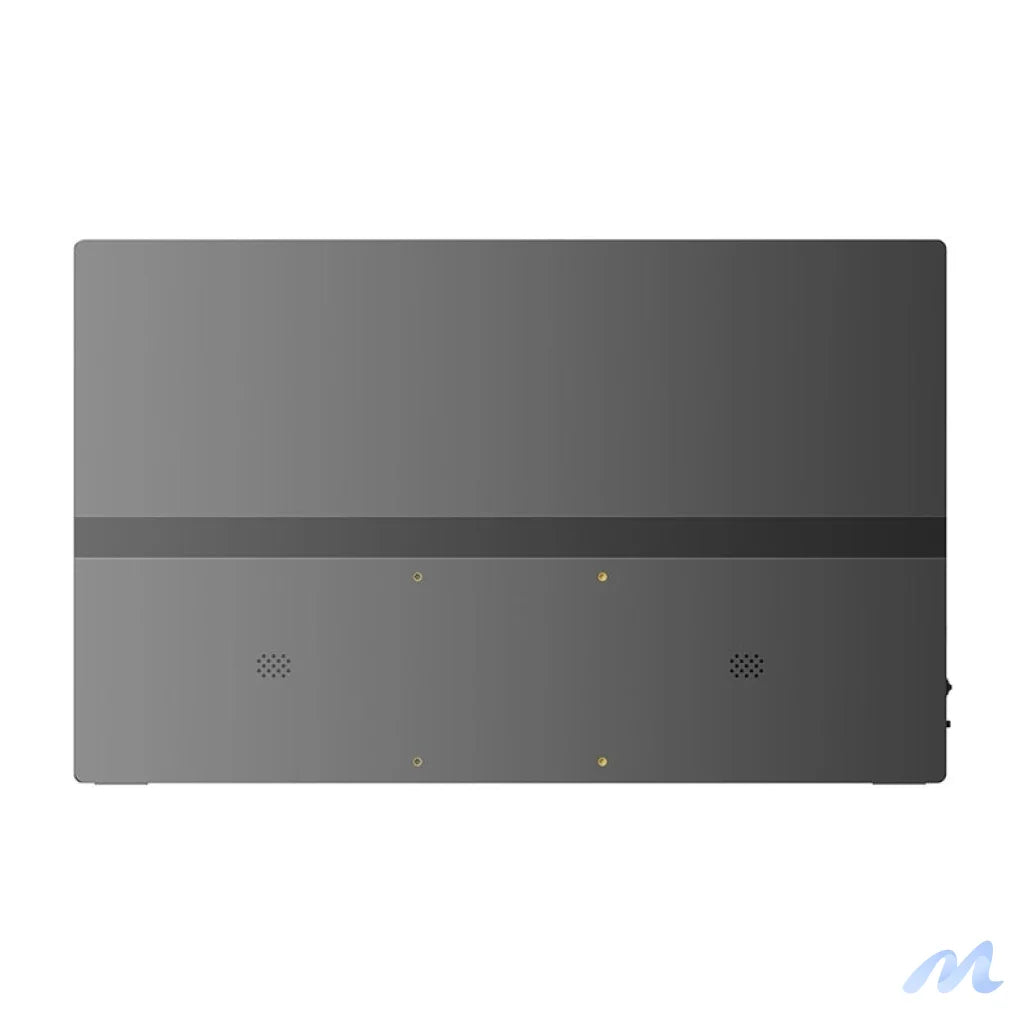

Lightweight design and VESA mounting

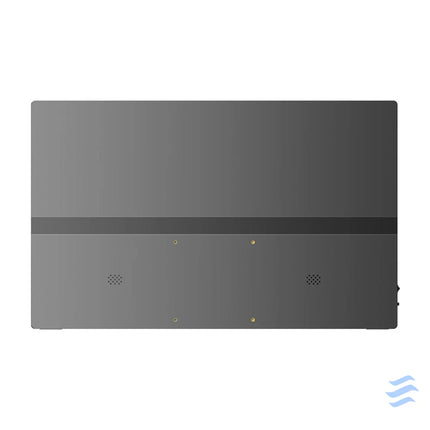

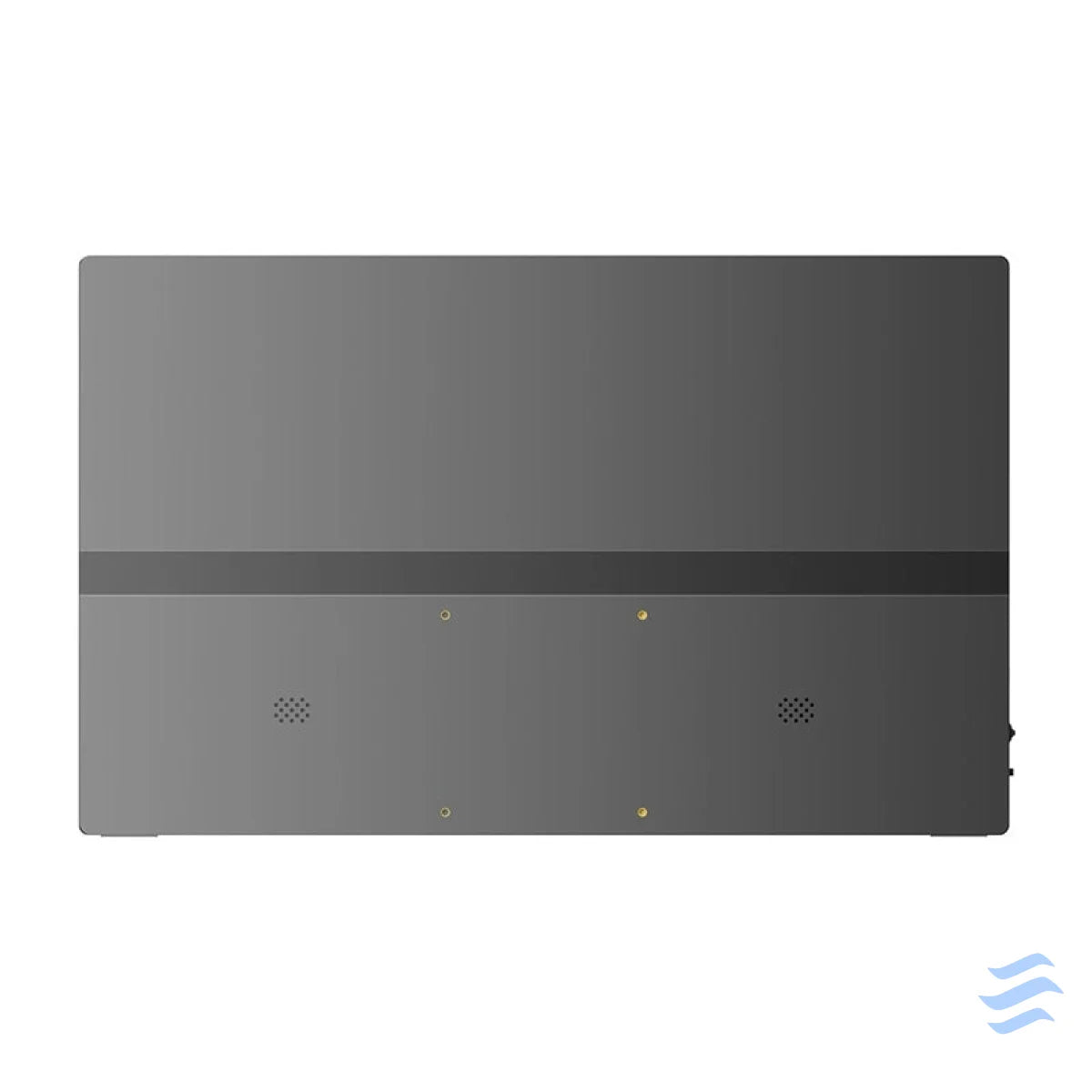

The monitor is made of ABS plastic, which ensures low weight and good mobility. The chassis is compatible with VESA (Video Electronics Standards Association, a standard for mounting video devices) 75 × 75 mm mounts, allowing it to be mounted on a bracket, and power is supplied via a cable with a USB-C (Universal Serial Bus Type-C, a universal connector for data and power) port.

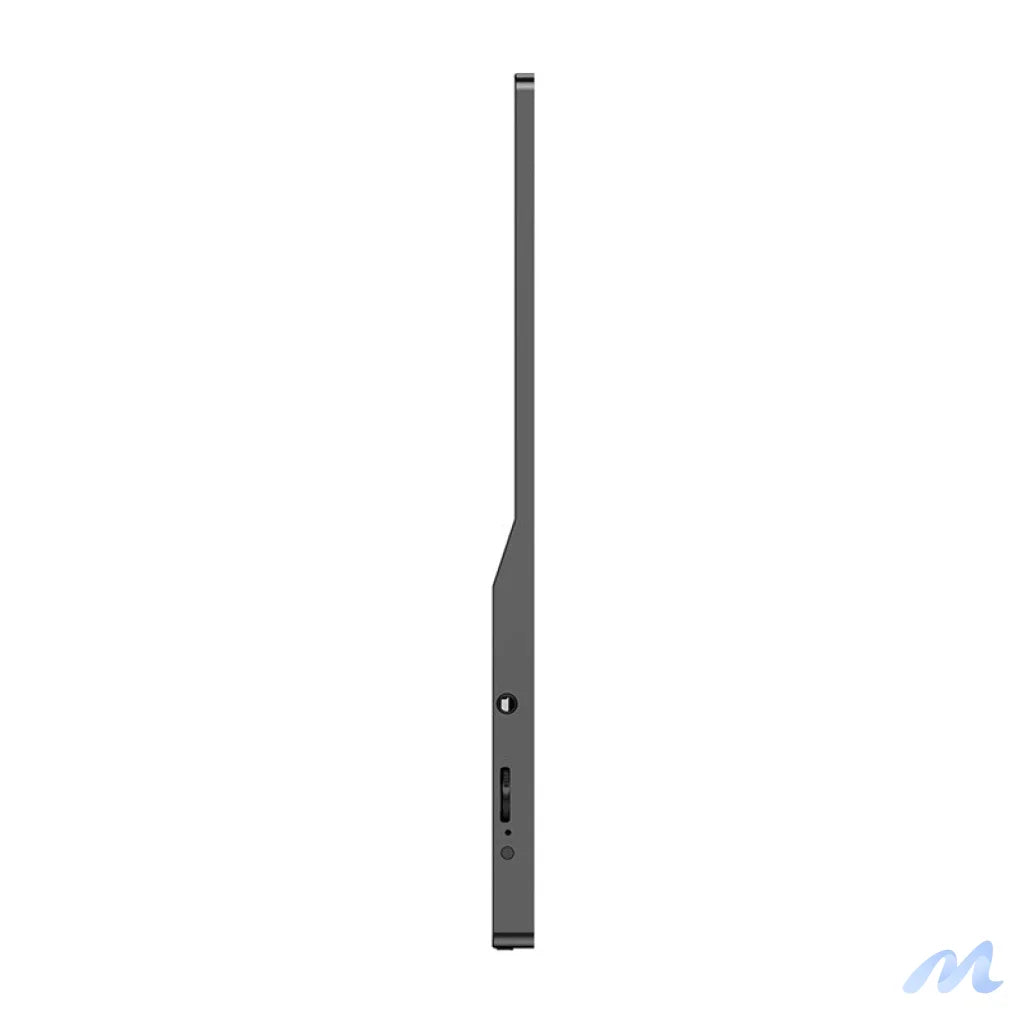

Built-in ports and speakers

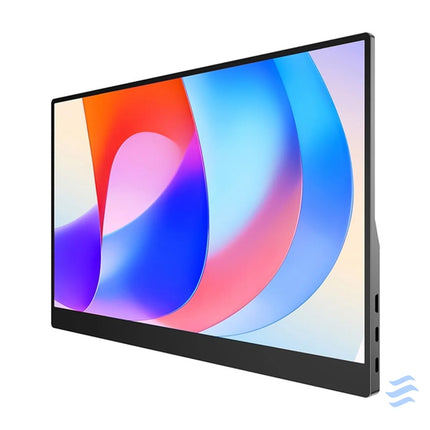

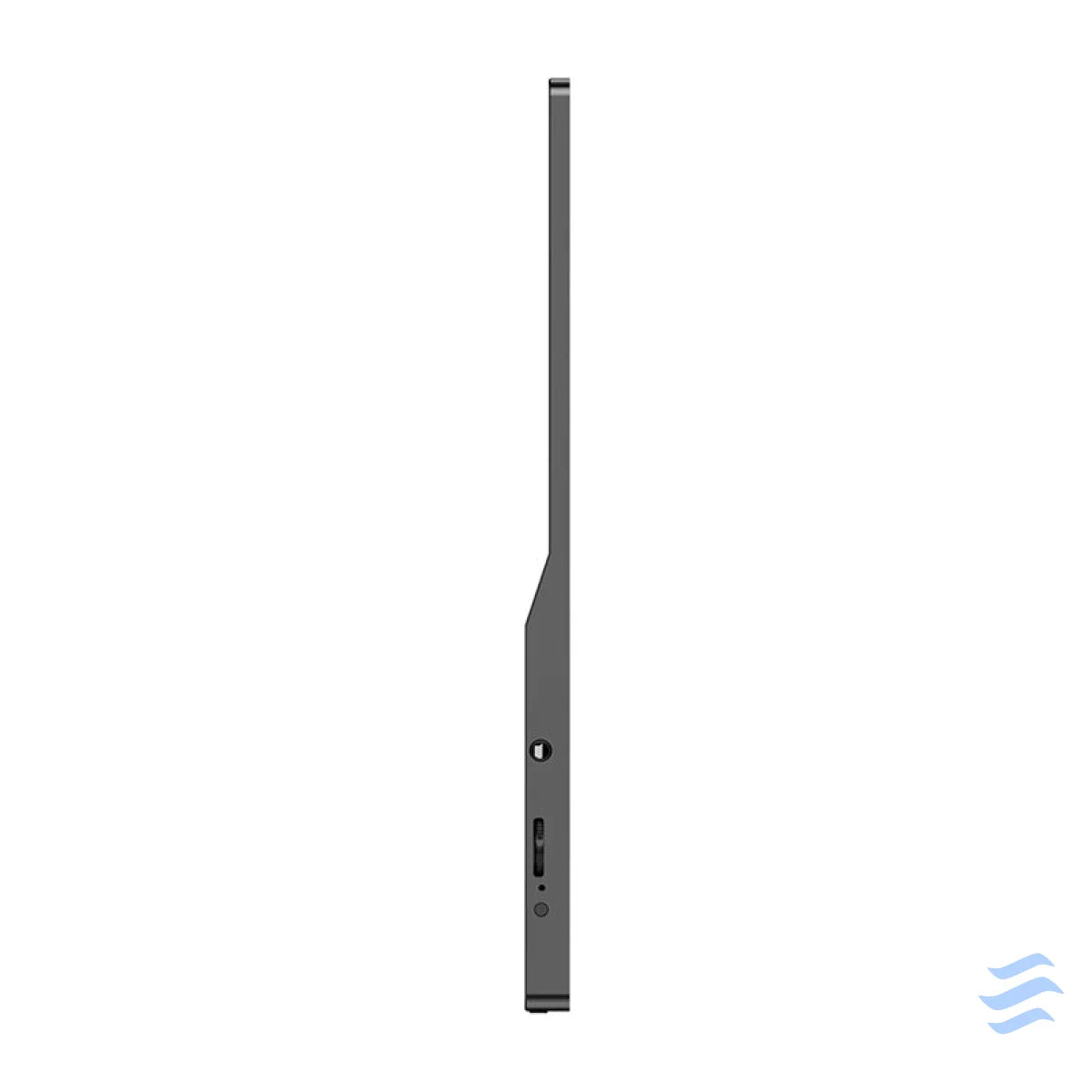

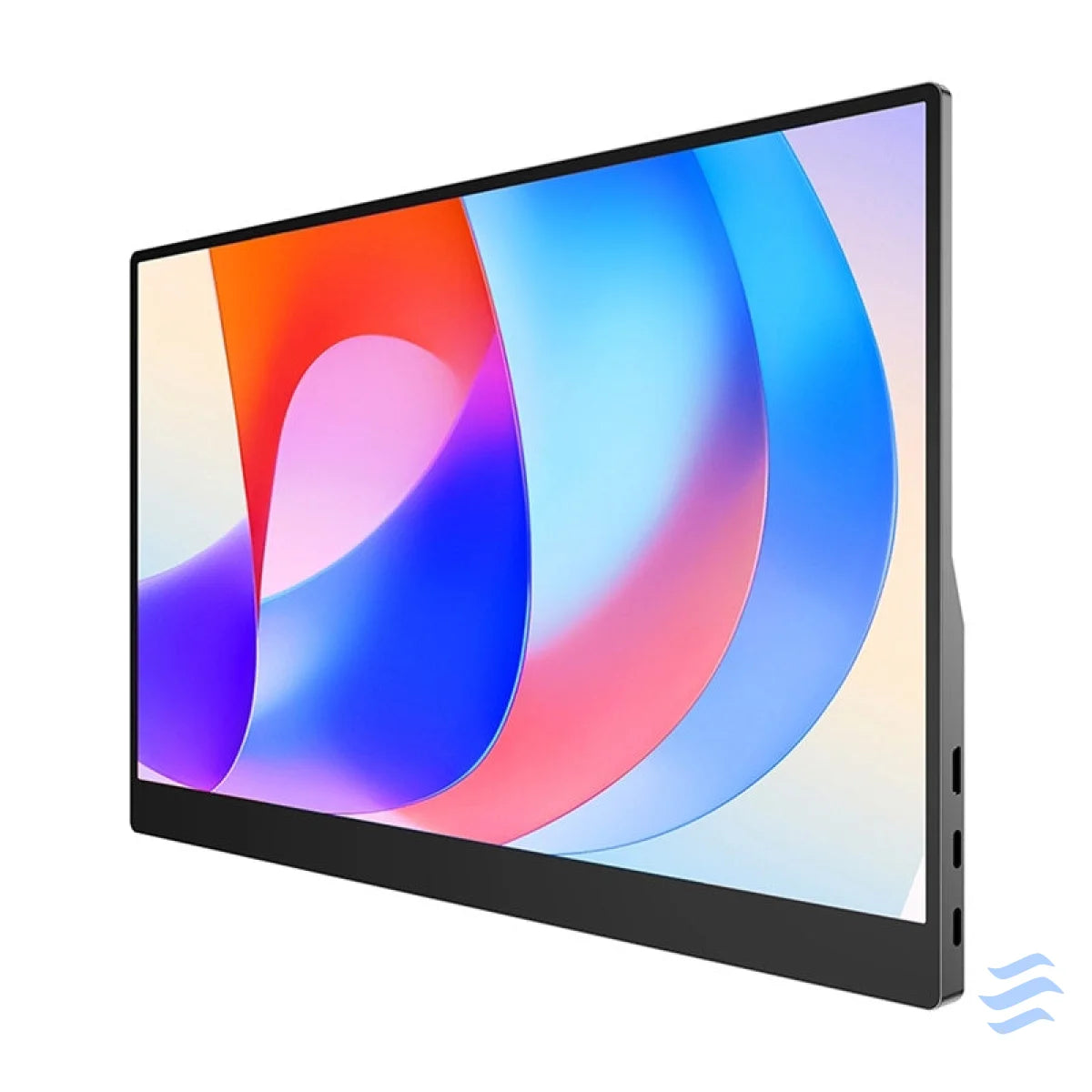

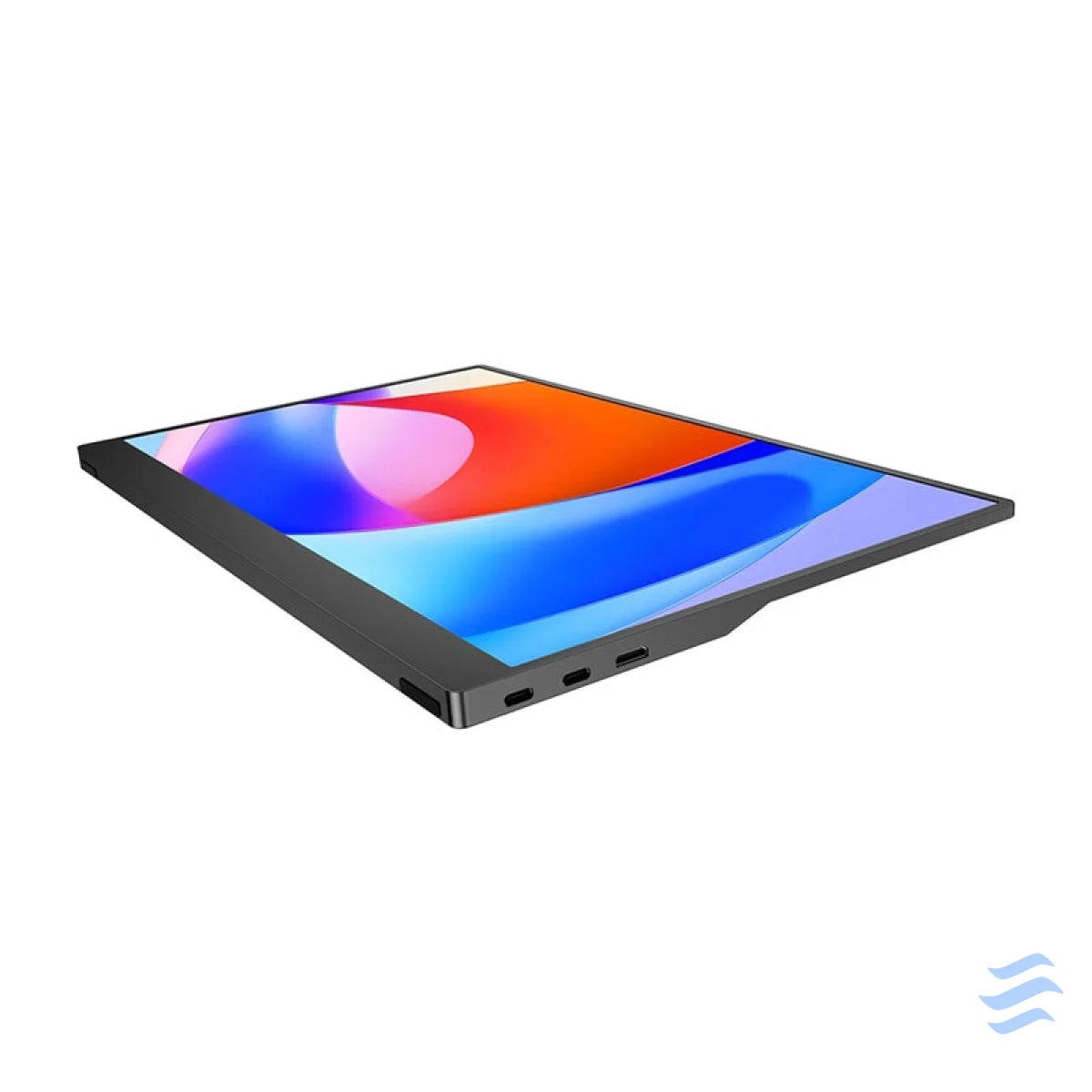

The USetup E7 offers two USB-C ports, a mini HDMI connector (High-Definition Multimedia Interface, an interface for high-definition video and audio) and a 3.5mm jack socket (standard audio connector). Built-in stereo speakers (2 × 1W) enable audio playback. The set includes a set of cables, a charger, a leather case and VESA mounting screws.
Included
- Portable monitor
- Mini HDMI cable (1080P)
- 2x USB-C (2.0) cable
- 5V 3A power adapter
- Leather case
- 4x VESA M3 × 4 mm screws
- User manual
| Manufacturer |
Uperfect |
| Model |
USetup E7 |
| Screen diagonal |
15.6" (39.62 cm) |
| Resolution |
1920×1080 (Full HD) |
| Display area |
344.16 × 193.59 mm |
| Refresh rate |
60 Hz |
| Matrix type |
IPS |
| Screen coating |
Matte |
| Touch screen |
10-point |
| Viewing angle |
178° |
| Brightness |
250 cd/m² |
| Contrast |
800:1 |
| Screen aspect ratio |
16:9 |
| Response time |
20 ms |
| Color palette |
45% NTSC / 66% sRGB |
| Number of colors |
16.7 million (8-bit) |
| Housing material |
ABS |
| Built-in speakers |
2 × 1W (8Ω) |
| Connectors |
2x USB-C; Mini HDMI (1080P); AUX 3.5mm |
| VESA mounting |
75 × 75 mm (M3 × 4 mm screws) |
| Power supply |
7W (5V 3A power adapter included) |
| Built-in rechargeable battery |
no |
