Wire Splicing Connector pack Sonoff (54 pcs)
- Ships today! The product is in stock at our warehouse located in Finland. Orders are shipped at lightning speed usually the same or next business day. Delivery time depends of the destination country.
- Ships in 4–7 days The product is shipped from supplier warehouse and delivered first to our warehouse located in Finland. You will receive a tracking link by email once we have shipped your order from our warehouse, usually within 4–7 business days after your order.
- Out of stock The product is currently unavailable. Please send a message to our customer service for more information.
Please take a look of our Shipping methods and costs page for more information.
Do you have any question?
We prefer that you send your message with our live chat. Contacting us with the chat allows us to see the product & page where you at the moment so it will be faster for us to check the product you are interested.
We can help you immediately if we are available, if we are busy packing orders we will get back to you and contact you by email & live chat.
If you are in a hurry you can leave your message with the contact form.
Would you like to place a larger wholesale order? Or would like to request for quotation for custom order?
Request for quatation:
- Add all the items and quantities into the cart
- Go to the "Cart page" by clicking this link or click the "Contact us" button in the slider cart.
- In the "Cart page" you can click the "Contact us" button and you can send a message and quote request for your cart items.
Description
Product information

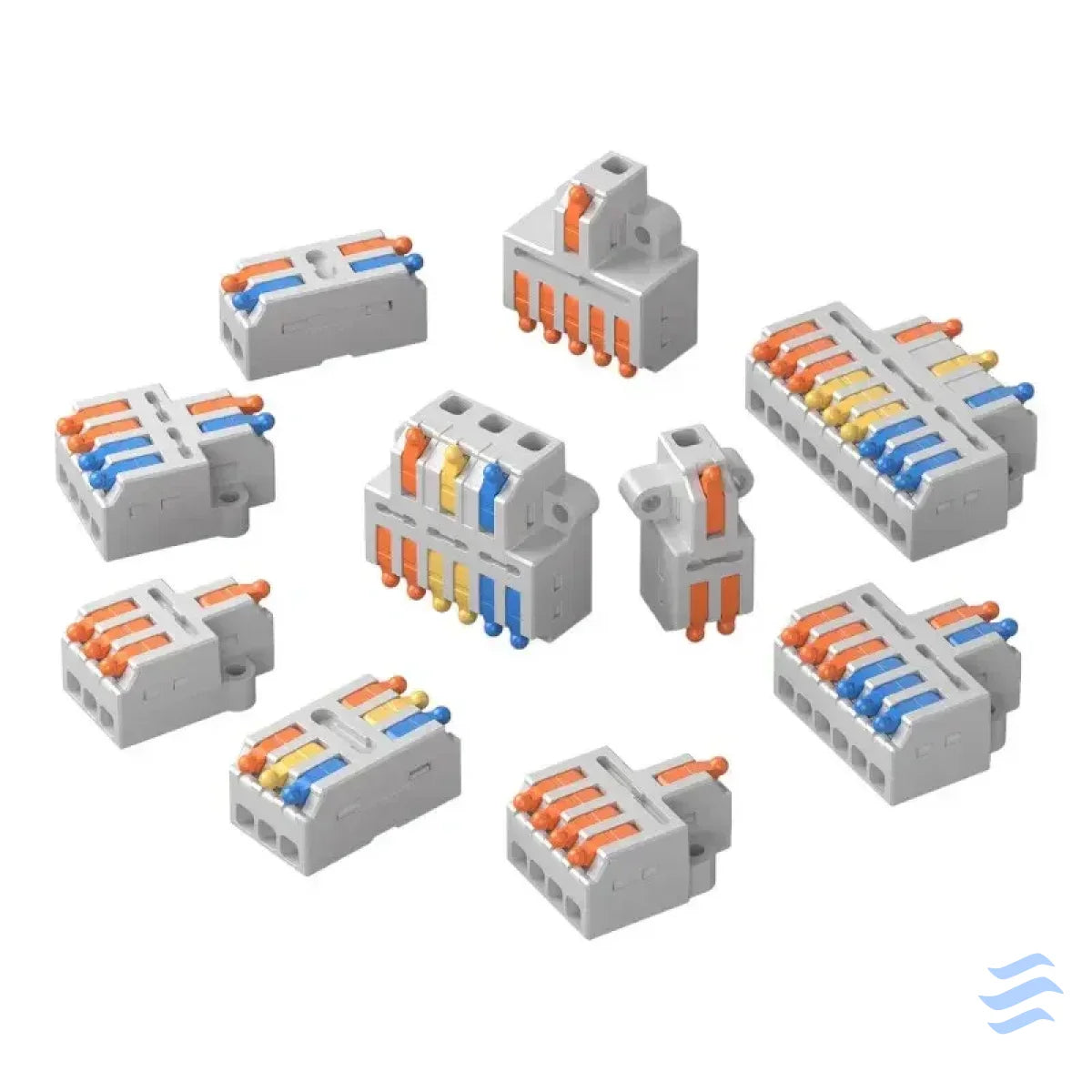

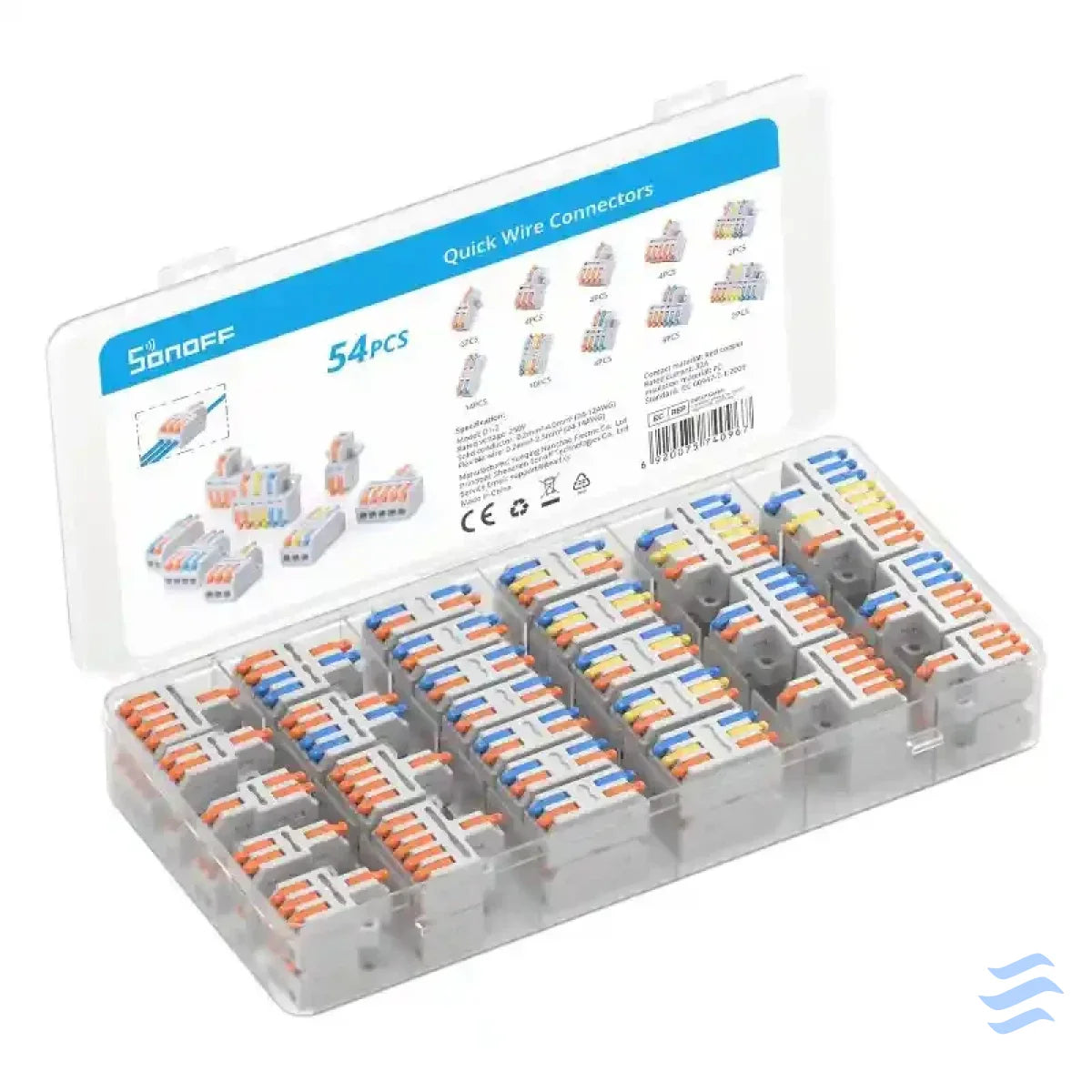

Sonoff Quick Connector Kit (54 pieces).
The Sonoff D1-2 quick connector set is a complete solution for a variety of wire connection needs. It contains 54 pieces of connectors in a variety of configurations, allowing them to be widely used in electrical installations. Made of high-quality red copper and insulated with PC material - ensuring safety and durability.
Many possibilities
The Sonoff D1-2 set is designed for use with voltage ratings up to 250 V and amperage up to 32 A. The connectors can handle solid wires from 0.2 to 4 mm² (24-12AWG) and flexible wires from 0.2 to 2.5 mm² (24-14AWG). Thanks to the variety of types of quick connectors included, users can easily adapt them to specific installation requirements.
Simple and fast installation
Sonoff D1-2 quick disconnects are designed for maximum simplicity and speed of installation. The lever mechanism allows quick connection of cables, significantly reducing installation time. Technological innovations reduce the time spent working on wiring by up to 70%, which is especially beneficial in projects requiring a large number of connections.
Multifunctional use
Thanks to the various types of available quick connectors, the Sonoff D1-2 kit can be used in a wide range of applications, from domestic to industrial. It is ideal for connecting wires in electrical boxes, switches, lamps, fans and other devices.
Safety and durability
Sonoff D1-2 connectors provide a high level of safety and durability. The use of red copper as a contact material guarantees excellent conductivity, while the PC insulation protects against damage and ensures long-lasting use. The product is also CE certified, which confirms its compliance with European safety standards.
Included
- 2x quick connect 3 In 6 Out
- 2x quick connect 3 In 9 Out
- 6x quick disconnect 1 In 2 Out
- 4x quick disconnect 1 In 3 Out
- 4x quick disconnect 1 In 4 Out
- 4x quick disconnect 1 In 5 Out
- 4x quick disconnect 2 In 4 Out
- 4x quick disconnect 2 In 6 Out
- 14x quick disconnect 2 In 2 Out
- 10x quick disconnect 3 In 3 Out
| Manufacturer | Sonoff |
|---|---|
| Model | D1_2 |
| Rated voltage | 250 V |
| Rated current | 32 A |
| Contact material | Red copper |
| Insulation | PC |
| Solid conductor | 0.2-4 mm2 (24-12AWG) |
| Flexible conductor | 0.2-2.5 mm (24-14AWG) |
| Number of pieces in the set | 54 |
Warranty: 12 months
Sonoff Quick Connector Kit (54 pieces).
The Sonoff D1-2 quick connector set is a complete solution for a variety of wire connection needs. It contains 54 pieces of connectors in a variety of configurations, allowing them to be widely used in electrical installations. Made of high-quality red copper and insulated with PC material - ensuring safety and durability.
Many possibilities
The Sonoff D1-2 set is designed for use with voltage ratings up to 250 V and amperage up to 32 A. The connectors can handle solid wires from 0.2 to 4 mm² (24-12AWG) and flexible wires from 0.2 to 2.5 mm² (24-14AWG). Thanks to the variety of types of quick connectors included, users can easily adapt them to specific installation requirements.
Simple and fast installation
Sonoff D1-2 quick disconnects are designed for maximum simplicity and speed of installation. The lever mechanism allows quick connection of cables, significantly reducing installation time. Technological innovations reduce the time spent working on wiring by up to 70%, which is especially beneficial in projects requiring a large number of connections.
Multifunctional use
Thanks to the various types of available quick connectors, the Sonoff D1-2 kit can be used in a wide range of applications, from domestic to industrial. It is ideal for connecting wires in electrical boxes, switches, lamps, fans and other devices.
Safety and durability
Sonoff D1-2 connectors provide a high level of safety and durability. The use of red copper as a contact material guarantees excellent conductivity, while the PC insulation protects against damage and ensures long-lasting use. The product is also CE certified, which confirms its compliance with European safety standards.
Included
- 2x quick connect 3 In 6 Out
- 2x quick connect 3 In 9 Out
- 6x quick disconnect 1 In 2 Out
- 4x quick disconnect 1 In 3 Out
- 4x quick disconnect 1 In 4 Out
- 4x quick disconnect 1 In 5 Out
- 4x quick disconnect 2 In 4 Out
- 4x quick disconnect 2 In 6 Out
- 14x quick disconnect 2 In 2 Out
- 10x quick disconnect 3 In 3 Out
| Manufacturer | Sonoff |
|---|---|
| Model | D1_2 |
| Rated voltage | 250 V |
| Rated current | 32 A |
| Contact material | Red copper |
| Insulation | PC |
| Solid conductor | 0.2-4 mm2 (24-12AWG) |
| Flexible conductor | 0.2-2.5 mm (24-14AWG) |
| Number of pieces in the set | 54 |
Warranty: 12 months
