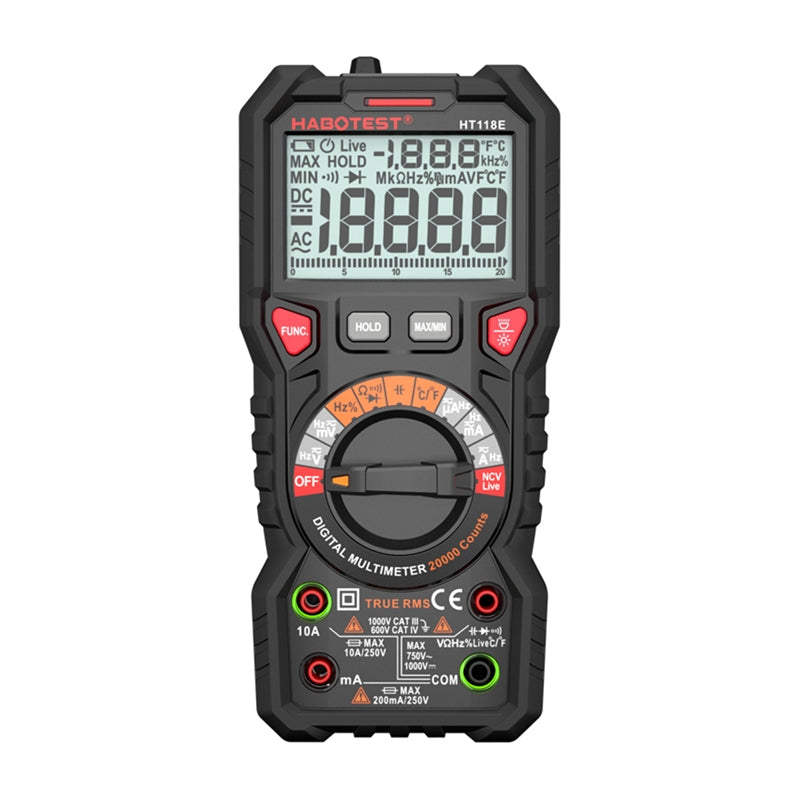

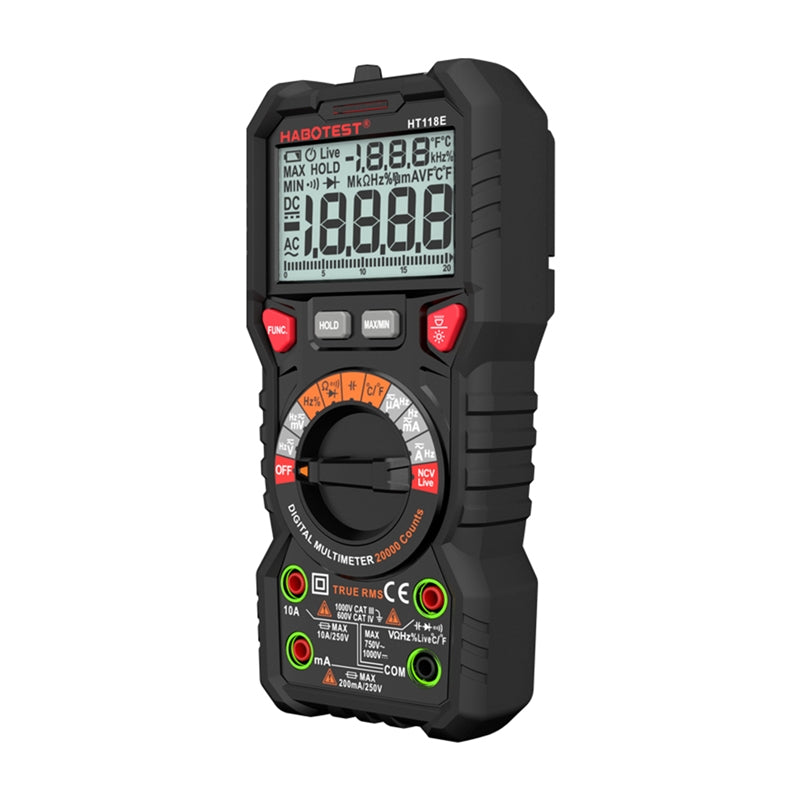

Habotest HT118E Universal Digital Multimeter True RMS NCV
The Habotest HT118E is a versatile digital multimeter that supports up to 20,000 counts and offers precise measurements of AC/DC voltage, current, resistance, capacitance, frequency and temperature (-20°C to 1000°C). A True RMS function ensures accurate readings, and non-contact voltage detection (NCV) enhances operational safety. A large LCD display with backlight, LED flashlight, automatic range selection, and built-in stand provide comfort in all conditions.
Wide range of measurements
The HT118E multimeter offers measurement of AC/DC voltage up to 1000V, current up to 10A, resistance up to 100MΩ, capacitance up to 2mF and frequency up to 20MHz. The ability to test diodes, check circuit continuity, and measure minimum and maximum values makes it an extremely functional tool for electronics engineers, electricians and do-it-yourselfers.
NCV and Live Test function
With non-contact voltage detection (NCV), you can check the presence of voltage in wires without physical contact. Live Test allows you to quickly detect a live wire, and a built-in audible and light alarm signals the danger.
Backlit screen and result memory
The HT118E features an easy-to-read, 2.7-inch LCD display with dual backlighting that automatically turns orange when 80V or 1A is exceeded, warning of high voltage. A data storage function saves measurement results, and a dynamic bar graph makes analysis easy.
Durability and safety
A double fuse protects both the multimeter and the electrical system under test. The housing with protective silicone covering protects against mechanical damage and electric shock. CAT III 1000V and CAT IV 600V safety certifications ensure that the multimeter can be used even at high voltages.
Practical solutions

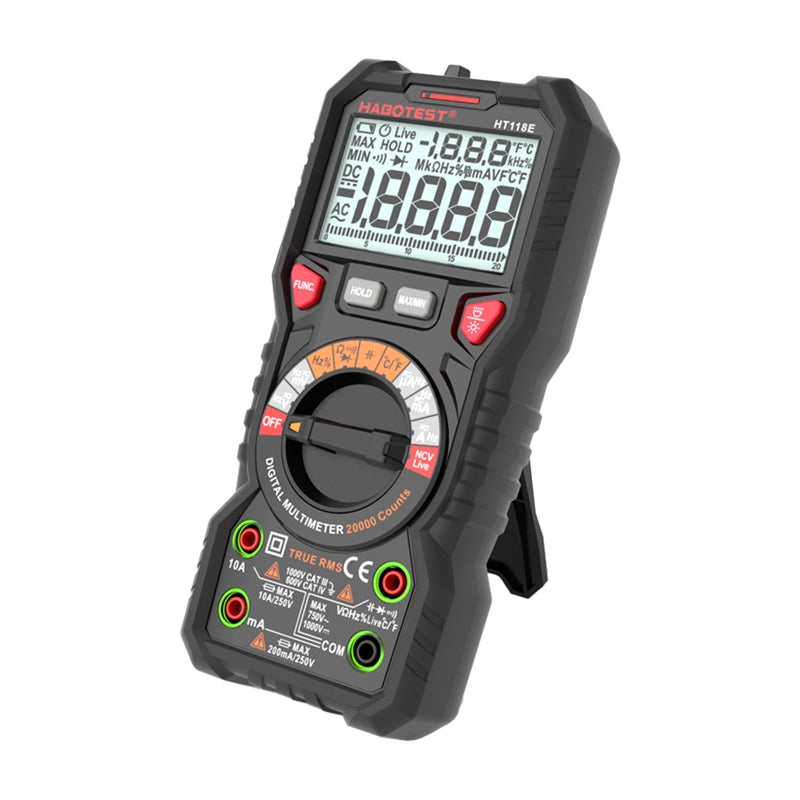

The built-in LED flashlight allows work in dark rooms, and the stable stand allows comfortable use without holding the meter in your hand. Flexible cable extrusions help keep the work area tidy. Power is provided by 2 AA batteries (included), and an automatic shut-off function after 15 minutes extends the operating time.

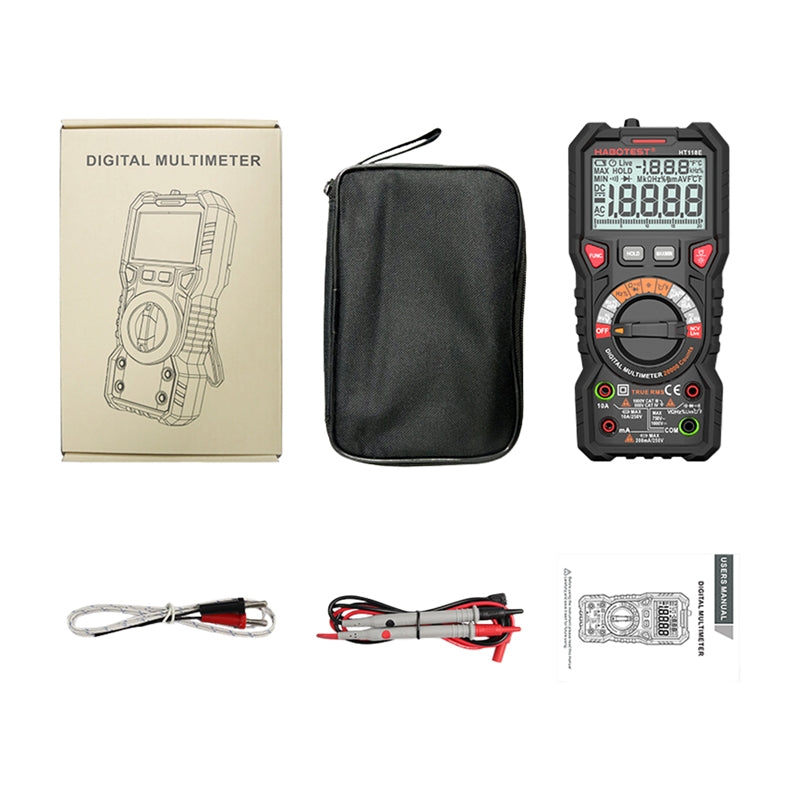

Included:
Habotest HT118E True RMS NCV digital multimeter
Measurement cable x2 (red and black)
Thermocouple for temperature measurement
AA battery x2
Protective cover
Manufacturer
Habotest
Manufacturer code
HT118E
DC voltage
200mV / 2V / 20V / 200V / 1000V
AC voltage
200mV / 2V / 20V / 200V / 750V
DC current
200μA / 2000μA / 20mA / 200mA / 10A
AC current
200μA / 2000μA / 20mA / 200mA / 10A
Resistance
200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 100MΩ
Capacitance
20nF / 200nF / 2μF / 20μF / 200μF / 2mF
Frequency
200Hz / 2kHz / 20kHz / 200kHz / 2MHz / 20MHz
Temperature range
from -20°C to 1000°C
Sampling frequency
~3 times/second
Number of counts
20 000
Display
2.7" LCD
Dual backlight
yes
Live Test (live wire test)
yes, audible and light alarm
Non-contact voltage detection (NCV)
yes, audible and light alarm
Diode testing
yes
Max/min value measurement
yes
Data storage
yes
True RM
yes
Frequency response
1kHz
Automatic shutdown
yes
Low battery indicator
yes
Active jack indicator
yes
LED flashlight
yes
Power supply
2x AA battery
Housing material
ABS with silicone protective cover
Safety standards
EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT III 1000V, CAT IV 600V
