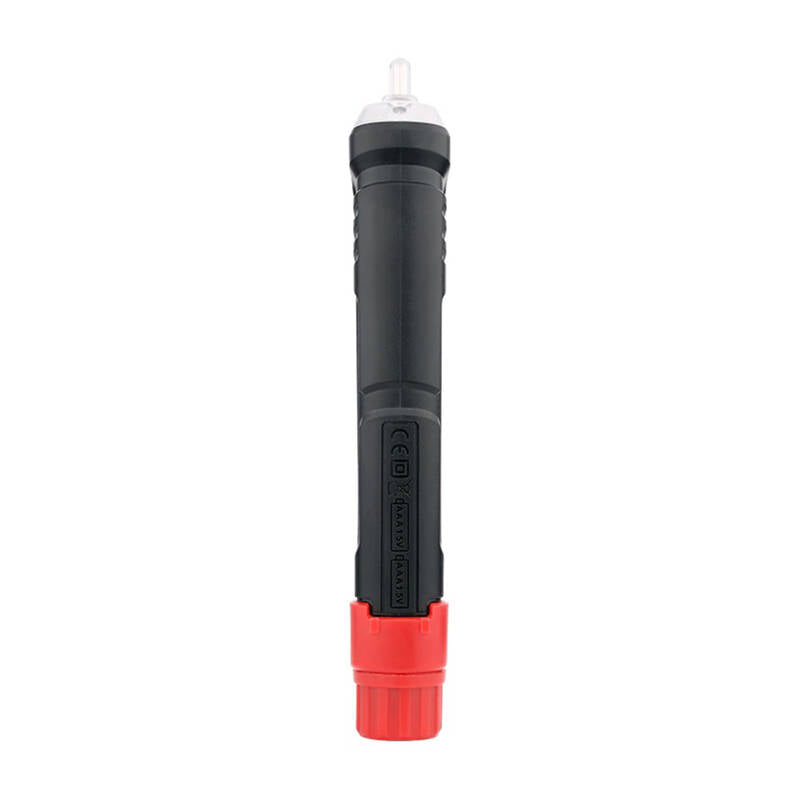

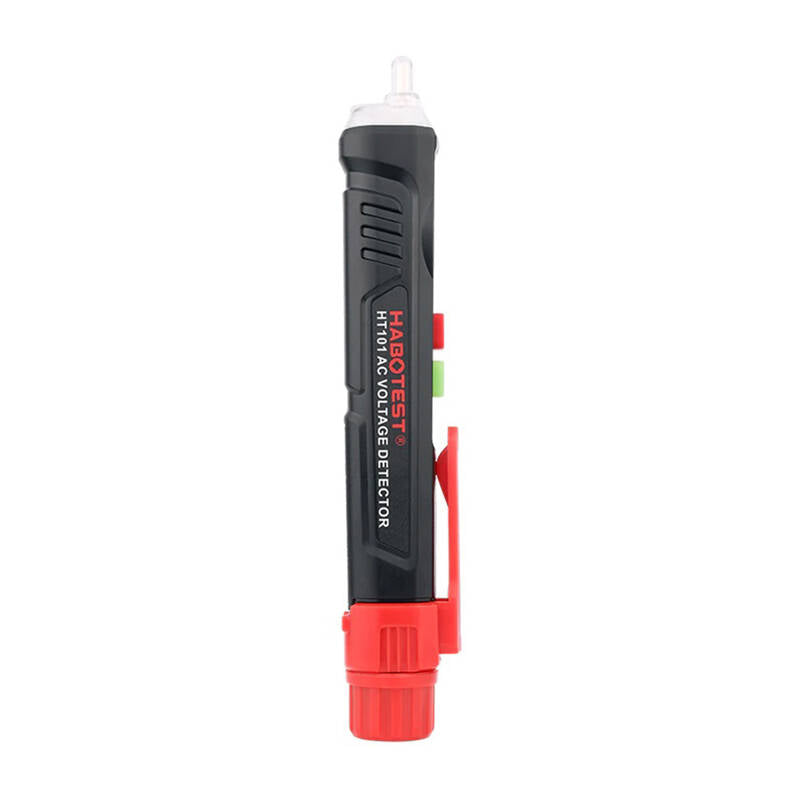

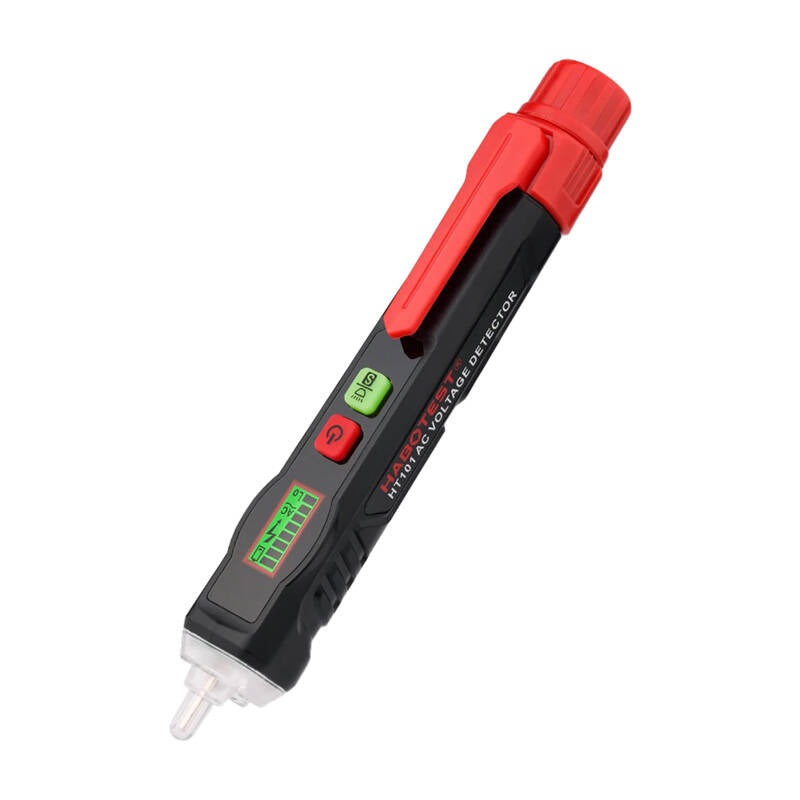

Habotest HT101 non-contact voltage and phase tester
The Habotest non-contact voltage (NCV) and phase detector provides precise measurement and safe use. Equipped with LCD and sensitivity adjustment button - it is very convenient to use. It offers breakpoint checking, as well as active and inactive cable detection, and automatically shuts off after 3 minutes of inactivity. The built-in LED flashlight will make your work easier. The device is powered by 2 AAA 1.5V batteries.
Accurate measurement
HT101 provides precise, non-contact measurement. You can adjust its sensitivity using the built-in button. It measures voltage in the range of 12-1000V and 48~1000V. The detector also detects breakpoints, so it is suitable for many applications.
Function to detect active and inactive cables
The detector intelligently detects active and inactive cables, and is equipped with a dual visual and audible alarm. Simply place the device against the surface of the cable. A green display and slow beep indicates an inactive cable. A red display and very fast alarm indicates an active cable.
Designed with user comfort and safety in mind

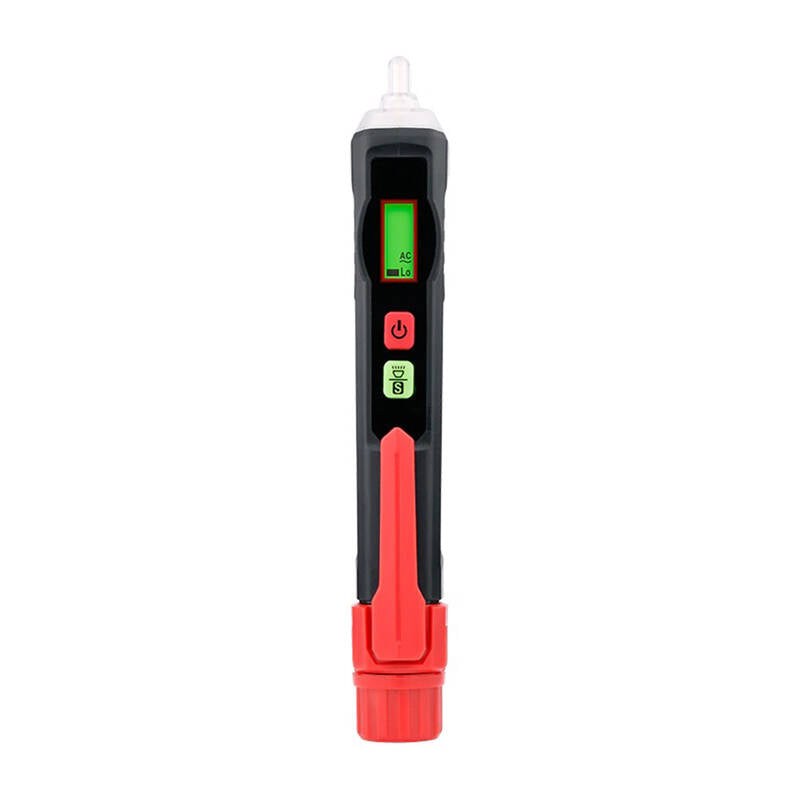

The clear LCD will provide you with key information. HT101 also has a built-in LED flashlight. Thanks to it, you can use the device even in dark rooms. You also don't have to worry about the battery running out too fast if you forget to turn the sensor off - it will automatically stop working after 3 minutes of inactivity. In addition, the indicator will notify you when the battery is low.
Small, handy, easy to transport
The device is compact, portable and convenient to use. Easy to reach buttons allow you to quickly and easily turn the detector on, off and adjust sensitivity. A built-in clip allows you to attach the HT101 to clothing, bags or backpacks, for example, making it easy to transport.
Brand
Habotest
Model
HT101
HT100P
Voltage detection range
High sensitivity: AC 12-1000V; Low sensitivity: AC 48-1000V
High sensitivity: AC 12-1000V; Low sensitivity: AC 48-1000V
Picker shape
Round
Extended
Frequency
50/60 Hz
50/60 Hz
Alert type
Sound and light
Sound and light
Non-contact phase detection
Yes
Yes
Backlight
Double, red and green
Double, red and green
Testing cable activity
Yes
Yes
Display signal strength
4-level bar chart
4-level bar chart
Way to indicate signal intensity
Sound: slow to fast; Backlight: green to red; Bar graph: low to high < / span>
Sound: slow to fast; Backlight: green to red; Bar graph: low to high
Flashlight
Yes
Yes
Automatic shutdown
Yes, after 3 minutes of inactivity
Yes, after 5 minutes of inactivity
Low battery indicator
Yes
Yes
Power
2x AAA 1.5V batteries
2x AAA 1.5V battery (included)
Weight
Ok. 35 g
Ok. 32 g
Dimensions
157 x 23 x 18.8 mm
157 x 27 x 23 mm
Security
EN61010-1, -2-030; EN61326-1, CAT III 1000V
EN61010-1, -2-030; EN61326-1, CAT III 1000V
