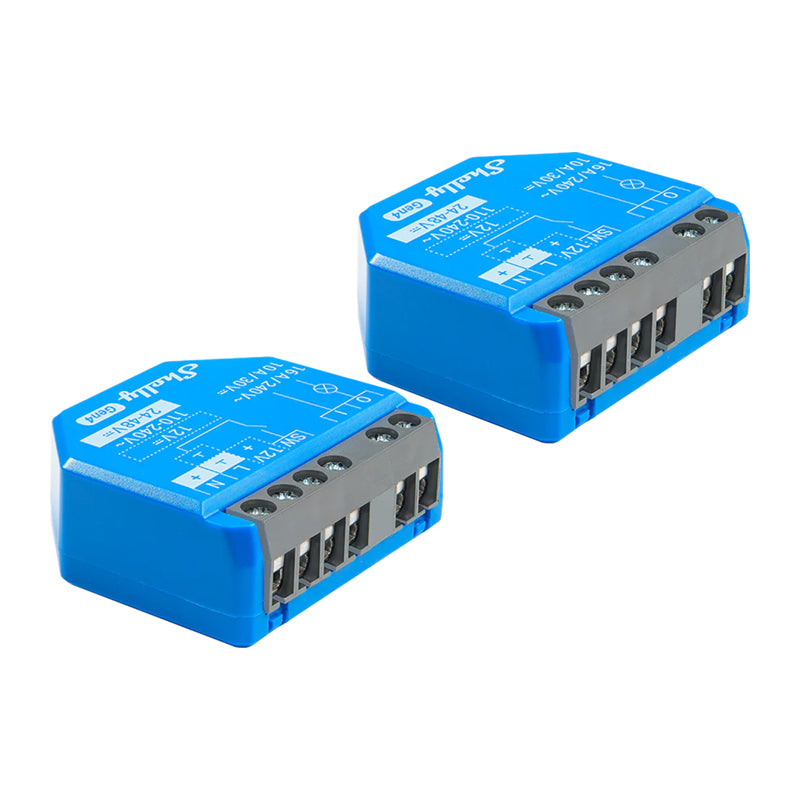

The Shelly 1 Gen4 Zigbee/Matter is a compact flush-mounted controller with potential-free contacts that allows for remote control of various electrical devices—both via a local network and the internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), making it easy to integrate with your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa, and SmartThings. The controller is ideal for residential, office, hotel, and other facilities. The set includes two controllers.
Integration with any system
The Shelly 1 Gen4 controller supports four main wireless communication protocols: Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2, and Matter. This allows you to choose which medium to use based on your installation’s capabilities and smart home ecosystem. The product also functions as a Zigbee repeater, which extends the network range. In the event of a weak Wi-Fi signal, it can act as a Wi-Fi booster, increasing connection stability.
Remote access and schedules
The device can operate both on a local Wi-Fi network and over the internet, enabling remote access regardless of the user’s location. The built-in web interface allows for configuration and control without the need to install additional apps. The advanced scheduling system lets you define detailed scenarios based on the day of the week, hour, and even the second, which works well for automating lighting, ventilation, or garden watering, among other things.
Compatibility with apps and systems
The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP API, MQTT(S), Webhooks, the UDP protocol, and virtual components. Additionally, it offers compatibility with the KNX net/IP system. Thanks to support for scripts in the ShellyScript language, it is possible to create custom rules and operational logic.
Included
Shelly x2 controller
user manual
General
Manufacturer
Shelly
Model
1Gen4
Physical specifications
Dimensions
37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
Weight
26 g / 0.92 oz
Maximum tightening torque for screw terminals
0.4 Nm / 3.5 lbin
Wire cross-section
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and sleeved wires)
Stripped wire length
6 to 7 mm / 0.24 to 0.28 inches
Mounting
Wall mount
Housing material
Plastic
Housing color
Blue
Terminal color
Gray
Environmental conditions
Operating temperature
-20°C to 40°C / -5°F to 105°F
Operating humidity
30% to 70% RH
Maximum altitude
2000 m / 6562 ft
Electrical specifications
Power supply
110–240 V~ ; 24–48 V= ; 12 V=
Power consumption
< 1 W
Neutral wire required
No
External protection
Overcurrent circuit breaker compliant with EN60898-1 (tripping characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3)
Output circuit parameters
Maximum switching voltage
240 V~ ; 30 V=
Maximum switching current
16 A / 240 V~ ; 10 A / 30 V=
Sensors and measurements
Built-in temperature sensor
Yes
Wi-Fi
Protocol
802.11 b/g/n
RF band
2412 – 2472 MHz
Maximum RF transmit power
< 20 dBm
Range
Up to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions)
Bluetooth
Protocol
4.2
RF Band
2402 – 2480 MHz
Maximum RF Transmit Power
< 4 dBm
Range
Up to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions)
Zigbee
Protocol
802.15.4
Zigbee repeater function
Yes
RF band
2400 – 2483.5 MHz
Maximum RF transmit power
< 20 dBm
Range
Up to 100 m indoors / 328 ft and up to 300 m outdoors / 984 ft (depending on local conditions)
Microprocessor Unit
Processor
ESP-Shelly-C68F
Flash memory
8 MB
Firmware features
Number of schedules
20
Webhooks (URL actions)
20, with 5 URLs per webhook
Script support
Yes
MQTT
Yes
