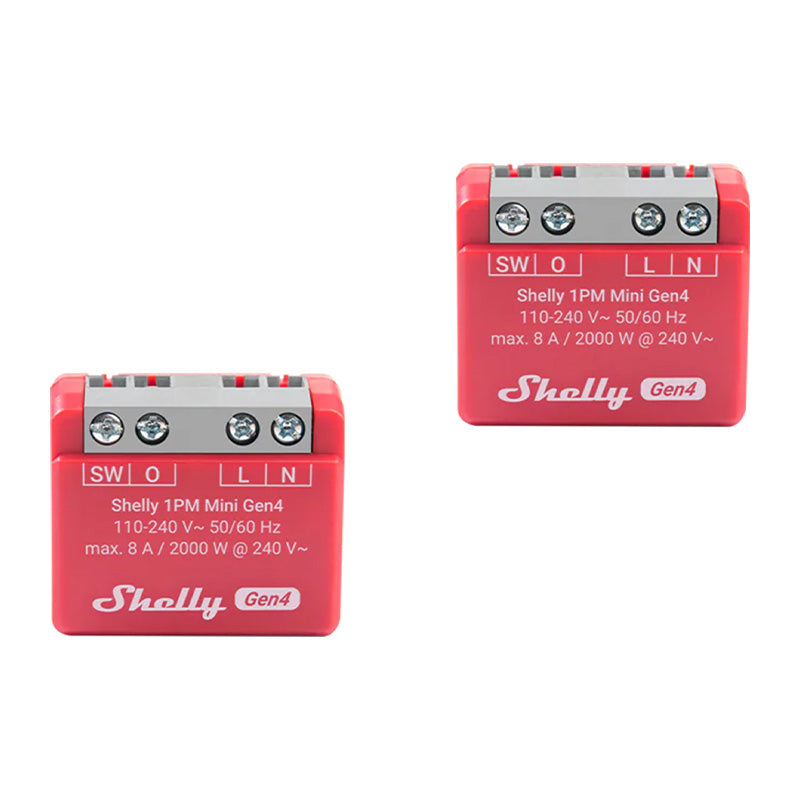

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers
The Shelly 1PM Mini Gen4 controller allows for remote control of electrical devices and precise measurement of their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth, and Matter, so it can be easily integrated with various home automation systems. It operates on a local network and via the cloud. The built-in web interface allows for configuration and monitoring without the need for additional software. Thanks to its compact size, it fits into standard electrical boxes and can be mounted behind outlets or switches in tight spaces. The set includes two controllers.
Control and monitoring in one
The Shelly 1PM Mini Gen4 functions simultaneously as a relay and an energy meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement feature allows for a detailed analysis of connected devices’ operation and helps optimize energy costs. The device sends data to the cloud or stores it locally, depending on the user’s preferences.
Compatibility and integrations with ecosystems
The device supports Zigbee, Wi-Fi, Bluetooth, and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings, and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP, and local APIs, enabling the creation of advanced scenarios and collaboration with other smart home components.
Programming, schedules, and reactions
The product allows you to create complex schedules and scenarios with the ability to set up to 20 schedules and webhooks—each with up to 5 URLs. It also supports scripts written in Shelly Script, allowing for the automation of actions based on time, device status, or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.
Stability and operational safety
The Shelly 1PM Mini Gen4 is equipped with a range of safety features, including protection against overheating, power surges, overloads, and power limits. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory, the device ensures fast data processing and stable operation. Additionally, it can function as a repeater, amplifying the Zigbee or Wi-Fi signal in hard-to-reach areas.
Included
Shelly controller x2
user manual
General
Manufacturer
Shelly
Model
1PMMiniGen4
Physical specifications
Dimensions
29 x 34 x 16 ± 0.5 mm / 1.34 × 1.11 × 0.63 ±0.02 inches
Weight
18 ±1 g / 0.63 ±0.04 oz
Maximum tightening torque for screw terminals
0.4 Nm / 3.5 lbf.in
Wire cross-section
0.2 to 2.5 mm² / 24 to 14 AWG (wire, stranded wire, and ferrules)
Wire stripping length
6 to 7 mm / 0.24 to 0.28 inches
Mounting
Wall box
Housing material
Plastic
Housing color
Red
Connector color
Gray
Environmental conditions
Operating temperature
-20°C to 40°C / -5°F to 105°F
Operating humidity
30% to 70% RH
Maximum altitude
2000 m / 6562 ft
Electrical Specifications
Power Supply
110–240 V AC
Relay
NO contact, 1-pole, µ contact
External Protection
Triggering characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limitation class 3
Output circuit parameters
Maximum switching voltage
240 V AC
Maximum switching current
8 A / 240 V AC
Power measurement
Yes
Overvoltage protection / cut-off
Yes
Overload protection / cut-off
Yes
Power overload protection / cut-off
Yes
Sensors, meters
Built-in internal temperature sensor
Yes
Wi-Fi
Protocol
802.11 b/g/n
RF band
2412 – 2472 MHz
Maximum RF power
< 20 dBm
Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions)
Bluetooth
Protocol
5.0
RF Band
2402 – 2480 MHz
Maximum RF Power
< 4 dBm
Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions)
Zigbee
Protocol
802.15.4
RF bands
2400 – 2483.5 MHz
Maximum RF power
< 20 dBm
Range
Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depending on local conditions)
Microcontroller unit
CPU
ESP-Shelly-C68F
Flash memory
8 MB
Firmware capabilities
Schedules
20
Webhooks (URL actions)
20, each with up to 5 URLs
Scripts
Yes
MQTT
Yes
