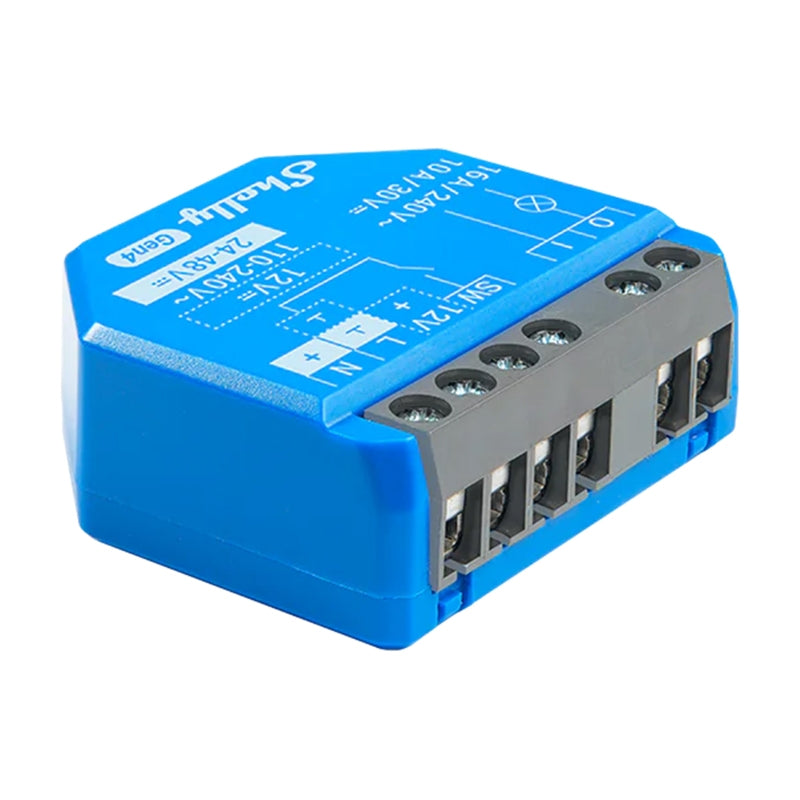

The Shelly 1 Gen4 Zigbee/Matter controller is a compact, backplane controller with potential-free contacts that allows you to remotely control a variety of electrical devices - either via the local network or the Internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), so you can easily adapt it to your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa and SmartThings. The controller will work well in residential, office, hotel and other installations.
Integration with any system
The Shelly 1 Gen4 controller supports four major wireless communication protocols: Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2 and Matter. This allows you to choose for yourself which medium you want to use depending on your installation capabilities and smart home ecosystem. The product also acts as a Zigbee repeater, which extends the network's range. In case of a weak Wi-Fi signal, it can act as its repeater, increasing the stability of the connection.
Remote access and schedules
The device can operate over both local Wi-Fi and the Internet, allowing remote access regardless of the user's location. A built-in web interface allows configuration and control without installing additional applications. An advanced scheduling system provides the ability to define detailed scenarios taking into account the day of the week, the hour and even the second, which works well for automation of lighting, ventilation or garden watering, among others.
Cooperation with applications and systems
The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP APIs, MQTT(S), WebHooks, UDP protocol and virtual components. In addition, it offers KNX net/IP compatibility. With ShellyScript scripting support, it is possible to create custom rules and operation logic.
General
Manufacturer
Shelly
Model
1Gen4
Physical parameters
Dimensions
37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
Weight
26 g / 0.92 ounces
Maximum tightening torque of screw terminals
0.4 Nm / 3.5 lbin
Cable cross section
0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-stranded and sleeved wires)
Length of stripped wire
6 to 7 mm / 0.24 to 0.28 in.
Mounting
Wall console
Housing material
Plastic
Housing color
Blue
Clamp color
Gray
Environmental conditions
Operating temperature
-20°C to 40°C / -5°F to 105°F
Operating humidity
30% to 70% RH
Maximum altitude.
2000 m / 6562 ft
Electrical parameters
Power supply
110-240 V~ ; 24-48 V= ; 12 V=
Power consumption
< 1 W
Neutral wire required
No
External protection
Overcurrent circuit breaker according to EN60898-1 (trip characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3)
Output circuit parameters
Maximum switching voltage
240 V~ ; 30 V=
Maximum switching current
16 A / 240 V~ ; 10 A / 30 V=
Sensors and measurements
Built-in temperature sensor
Yes
Wi-Fi
Protocol
802.11 b/g/n
RF bandwidth
2412 - 2472 MHz
Maximum RF transmit power
< 20 dBm
Range
Up to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions)
Bluetooth
Protocol
4.2
RF band
2402 - 2480 MHz
Maximum RF transmit power
< 4 dBm
Range
Up to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions)
Zigbee
Protocol
802.15.4
Zigbee repeater function
Yes
RF band
2400 - 2483.5 MHz
Maximum RF transmit power
< 20 dBm
Range
Up to 100 m indoors / 328 feet and up to 300 m outdoors / 984 feet (depending on local conditions)
Microprocessor unit
Processor
ESP-Shelly-C68F
Flash memory
8 MB
Firmware features
Number of schedules
20
Webhooks (URL shares)
20, with 5 URLs per webhook
Scripting support
Yes
MQTT
Yes
