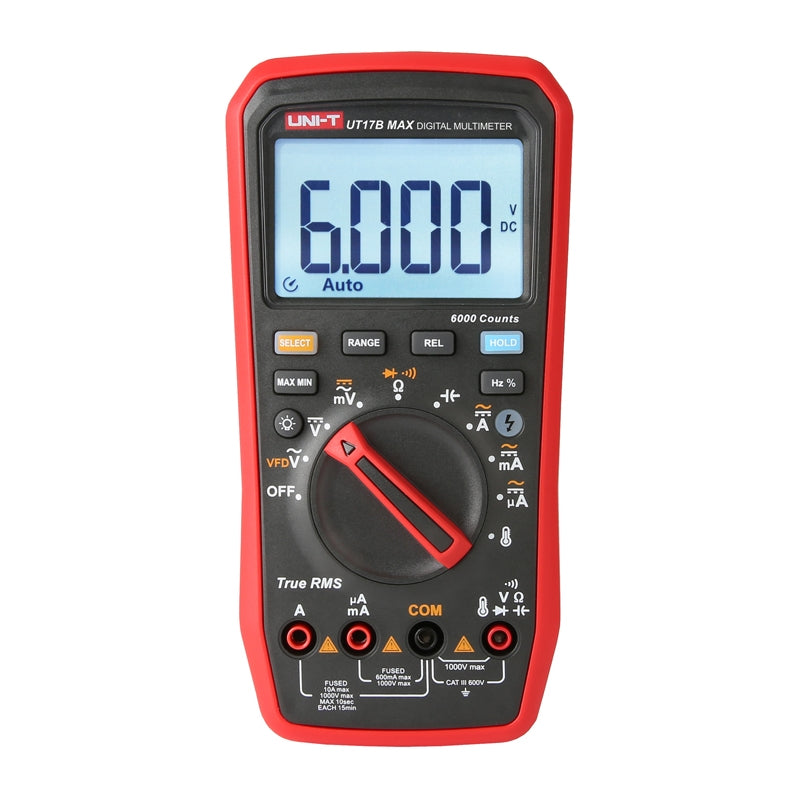

The Uni-T UT17B MAX is an enhanced version of the True RMS series multimeter, which, in addition to a wide range of basic measurements, also offers a temperature measurement function. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. With a temperature range from -55°C to 500°C, this model is better suited for a wider variety of service and diagnostic applications.
Features that simplify daily diagnostics
Like the UT15B MAX, the UT17B MAX is equipped with a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlight, automatic and manual range switching, auto-off, and wake-up with any button enhance the convenience of daily use. As a result, the device performs well in both basic and more demanding measurements.
Greater capabilities and ready to use right away
A major advantage of this model is the inclusion of a Type K thermocouple in the kit, allowing you to use the temperature measurement function right away. Safety is enhanced by a wrong-wire connection alarm and CAT III 600V overvoltage protection. It is a good choice for those who expect more advanced diagnostic capabilities without sacrificing ease of use.
Included
Digital multimeter
User manual
Standard gold-plated test leads x2
Test leads with fine tips x2
Batteries x2
Type K thermocouple x1
Specifications
Manufacturer
Uni-T
Model
UT17B MAX
Type
True RMS digital multimeter
DC voltage
600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)
AC Voltage
600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)
VFD
600.0 V ±(8%)
AC current
600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
DC current
600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
Resistance
600.0Ω to 60.00MΩ ±(0.5%+2)
Capacitance
6.000nF to 6000µF ±(2.0%+5)
Frequency
10Hz ~ 10MHz ±(0.1%+3)
Duty Cycle
1% ~ 99.9% ±(1.0%+4)
Temperature
-55°C to 500°C ±2°C / ±4°F
Display
6000
Continuity Test
Yes
Diode Test
Yes
Data Hold
Yes
MAX/MIN Mode
Yes
Relative Mode
Yes
Backlight
Adjustable
Range selection
Automatic and manual
Auto power off
Yes
Wake-up with any button
Yes
Visual and audible alarm
Yes
Wiring error alarm
Yes
Voltage category
CAT III 600V
Power Supply
2x 1.5V AA batteries
Weight
455 g
Dimensions
182 mm × 91 mm × 45 mm
Color
Red and gray
