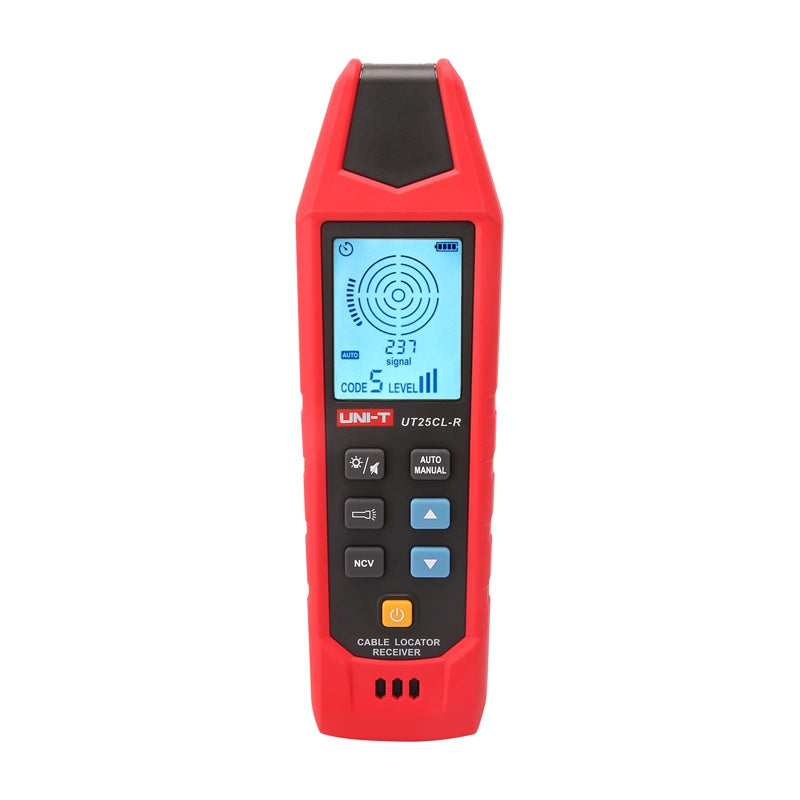

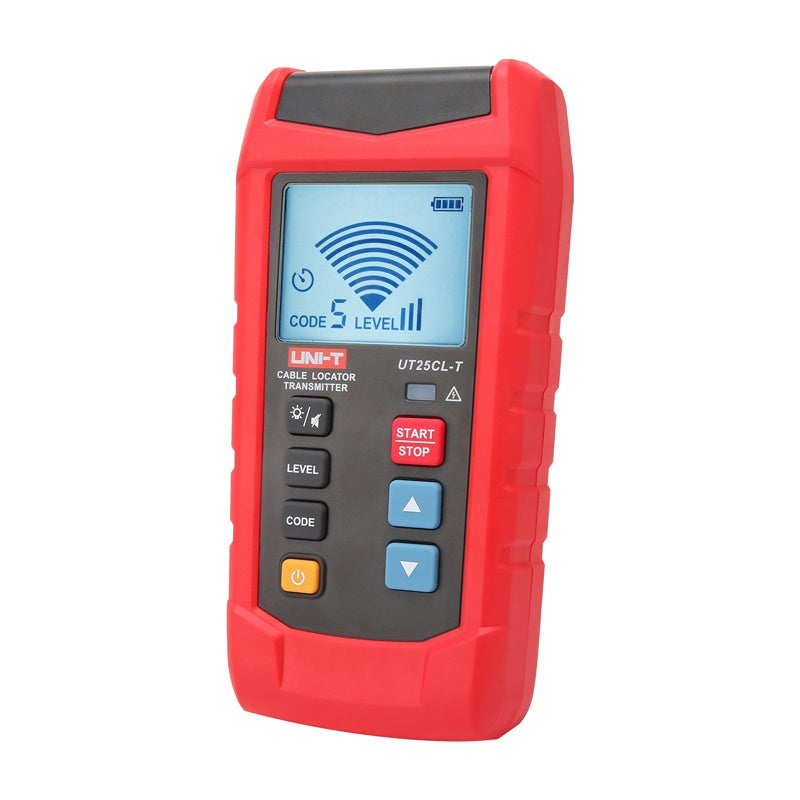

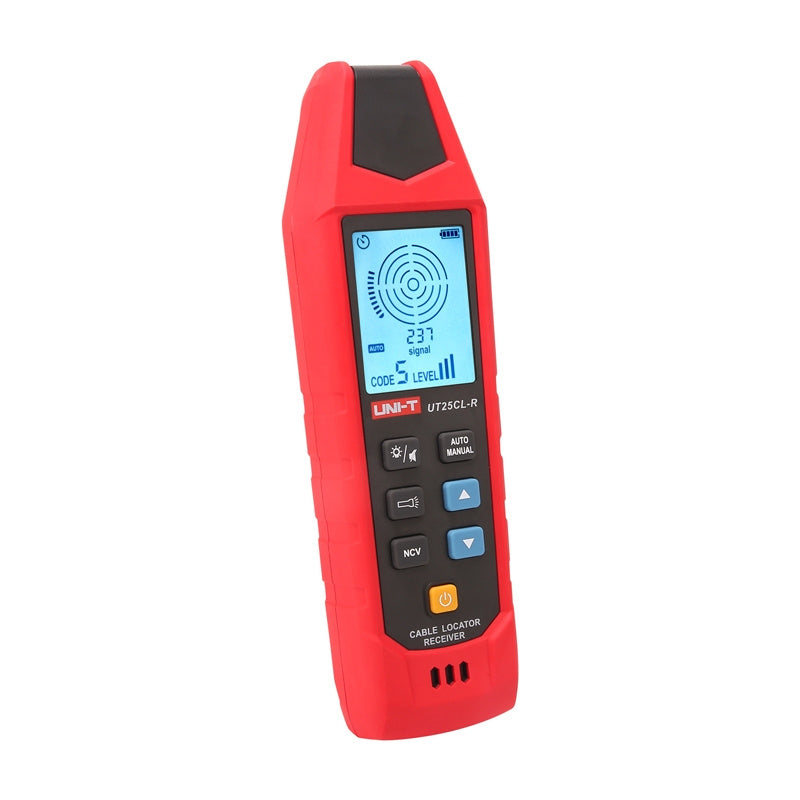

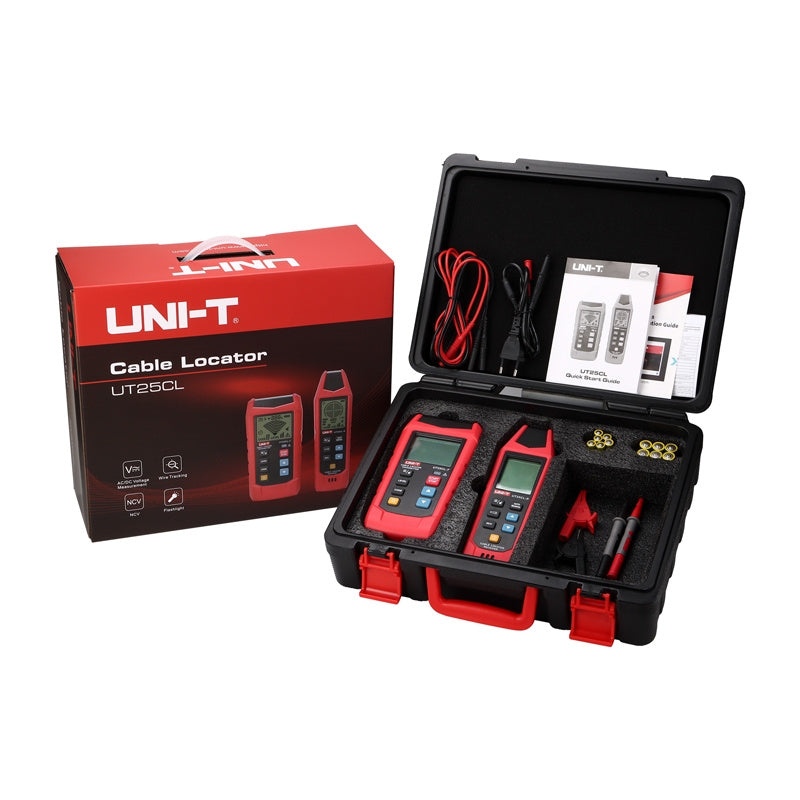

UNI-T UT25CL wire detector
The UNI-T UT25CL cable detector combines the functionality of a transmitter and a receiver, guaranteeing precise locating of cables and diagnosis of installation faults. The device allows you to detect cables in walls, locate breaks and short circuits, trace underground cables, as well as find fuses and related devices. With the ability to operate up to 8 transmitters with a single receiver, and features such as sensitivity adjustment, built-in flashlight and automatic screen illumination, the UT25CL significantly enhances work on both residential and commercial projects.
Versatility of applications in all conditions
The UT25CL is perfect for a variety of installation and service tasks. The device not only enables detection of wires in walls, but also allows precise tracking of breaks and short circuits in floor installations made of metal. With its ability to track metal water and heating pipes, the locator is also used in plumbing and repair work where accuracy and safety are key.
Smart features for even more convenience
The UT25CL detector is equipped with a system of automatic or manual sensitivity adjustment (on three levels), which allows you to adjust the operation of the device to the specific task and environmental conditions. Easy-to-read LED indicators and audible signaling make it easy to interpret results quickly, while a built-in flashlight and screen backlight provide convenience even in dimly lit areas. As an added convenience, the unit's automatic shut-off function extends the life of the device.
Certified safety and reliability
The UT25CL is capable of detecting live wires up to 480V (AC/DC), making it a reliable choice for both low and higher voltage work. It has CE and RoHS certifications, which confirm its high quality workmanship and compliance with current safety standards. It is the ideal tool for professionals who value efficiency, precision and safe work.
| Manufacturer | UNI-T |
|---|---|
| Model | UT25CL |
| Main functions | Detecting wires in the wall, locating wire breaks and short circuits, tracing underground cables, locating fuses and fuse-related devices, identifying short circuits and breaks in metal floor heating systems, tracing metal water pipes and heating pipes. |
| Sensitivity adjustment | Supported (receiver: 3 levels; transmitter: 9 levels) |
| Flashlight | Built-in |
| Illumination | Built-in |
| Manual sensitivity adjustment | Supported |
| Surge category | CAT III 480V |
| Pollution class | 2 |
| Protection class | IP: IP54 |
| Certifications | CE, RoHS |
Transmitter
| Output signal | 33KHz |
|---|---|
| Voltage range of live wire | AC/DC 8-480V; AC: 50/60Hz, accuracy 2.5% ±3°. |
| Display | Segmented LCD (TN; translucent) |
| Backlighting | Built-in |
| Code value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal level | Three levels (1, 2, 3) |
| Single-pole test | Supported (live wire test, max. voltage 480V) |
| Bipolar test | Supported (live wire test, max. voltage 480V) |
| ELV LED indicator | If the input voltage exceeds 25V, the ELV LED lights up; as the voltage increases, the brightness of the ELV LED increases; otherwise, the ELV LED will be dim or unlit |
Receiver
| Receive frequency | 33KHz |
|---|---|
| Tracking depth | Unipolar mode: approx. 0-2.5 m (single circuit: 2.5 m); Bipolar mode: approx. 0-0.5 m |
| NCV voltage range | 80V-1000V, 50Hz/60Hz |
| Depth of voltage detection | approx. 0-0.4 m |
| Code value | 0, 1, 2, 3, 4, 5, 6, 7 |
| Signal level | Three levels (1, 2, 3) |
| Support for multiple transmitters | Up to 8 units |
| Display | Segmented LCD (TN; translucent) |
Warranty: 24 months
